26.2 Expansion Wiring Diagrams
•
TRIO to TRIO Expansion Wiring
•
High Voltage Relays
•
Alarms and Power
26.2.1 TRIO
TO
TRIO E
XPANSION
W
IRING

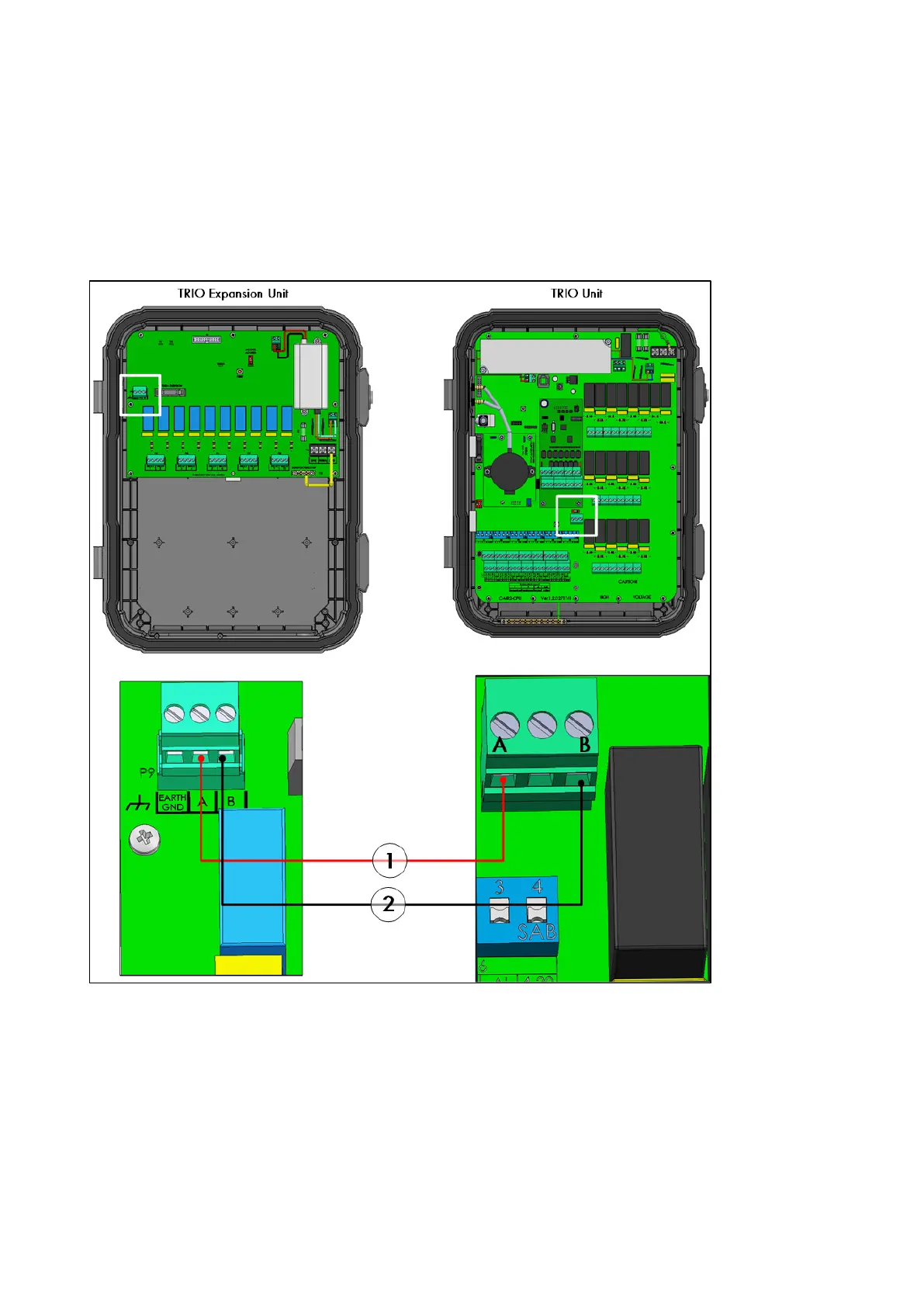

Figure 34: Wiring diagram
•
The cable between the controller and the expansion unit should be a 4 wire twisted shielded
cable (22 or 24 AWG).
•
1 – red wire
•
2 – black wire
