1-8 La y o u t & In s t a L L a t I o n
Making connections

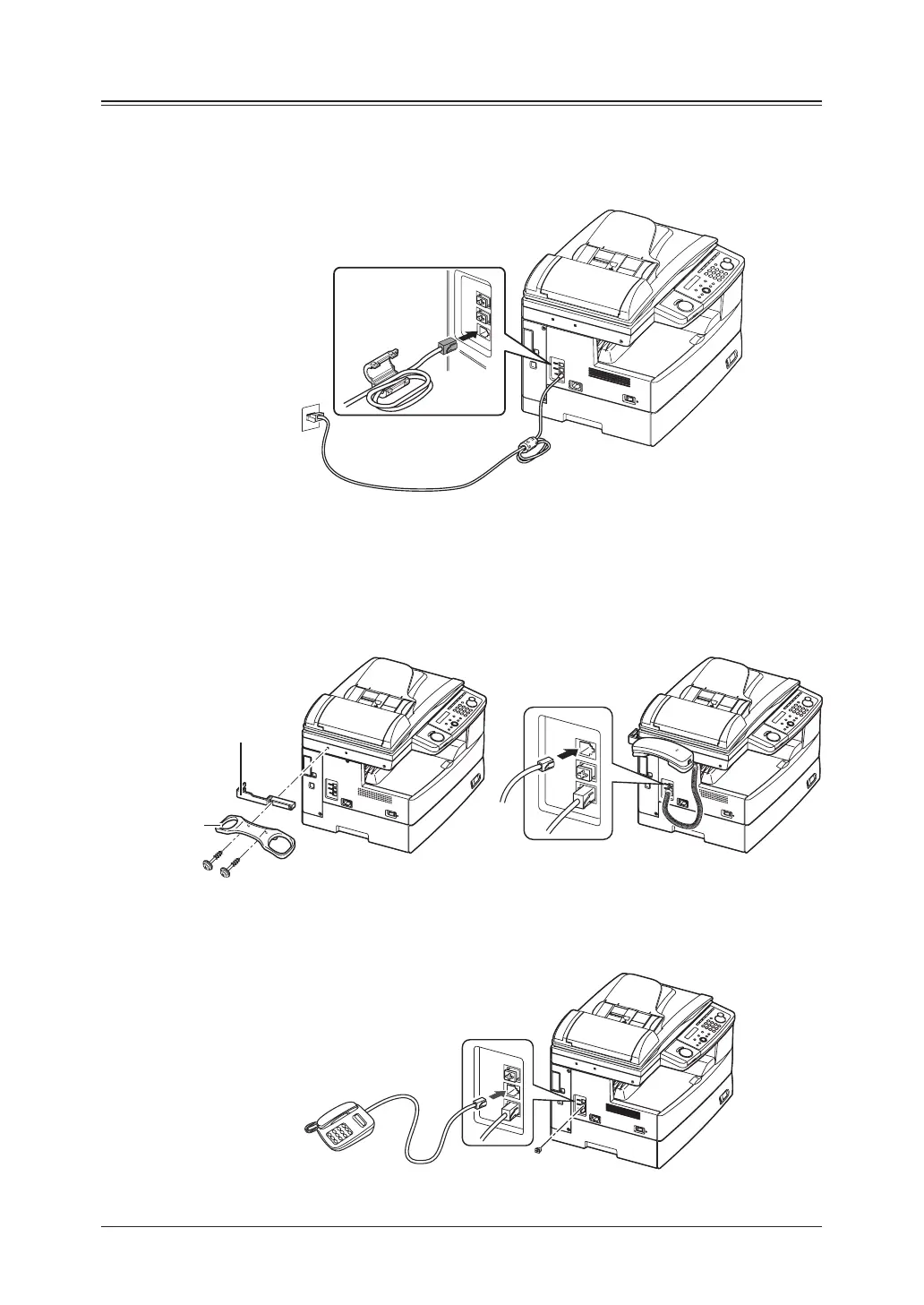

Telephone line connection
Attach the supplied ferrite core to the telephone line cable as illustrated below.
Plug the telephone line cable into the LINE jack and the other end to the wall jack.
T e lephone wall jack
LINE
PHONE1
PHONE2
If you want to use your machine for receiving both faxes and voice calls, connect the
optional handset or an external telephone to your machine.
Connecting the optional handset
Attach the handset cradle and the spacer using the screws supplied with the cradle.
Then plug the handset cord into the PHONE 1 jack of your machine.
spacer
handset
cradle
2*10'
2*10'
.+0'
Connecting an external phone
Plug the external phone’s line into the PHONE 2 jack of your machine.
External phone
(even an answering machine)
Modular cap
LINE
PHONE1
PHONE2
