Configuration/settings
User manual 55170_hdb_en_13 106 / 145
Setting up the MPR
manager
For a ring configuration, 2 ports of a PROFINET-managed switch or a S7 CPU
must be set as ring manager and all other users as clients.

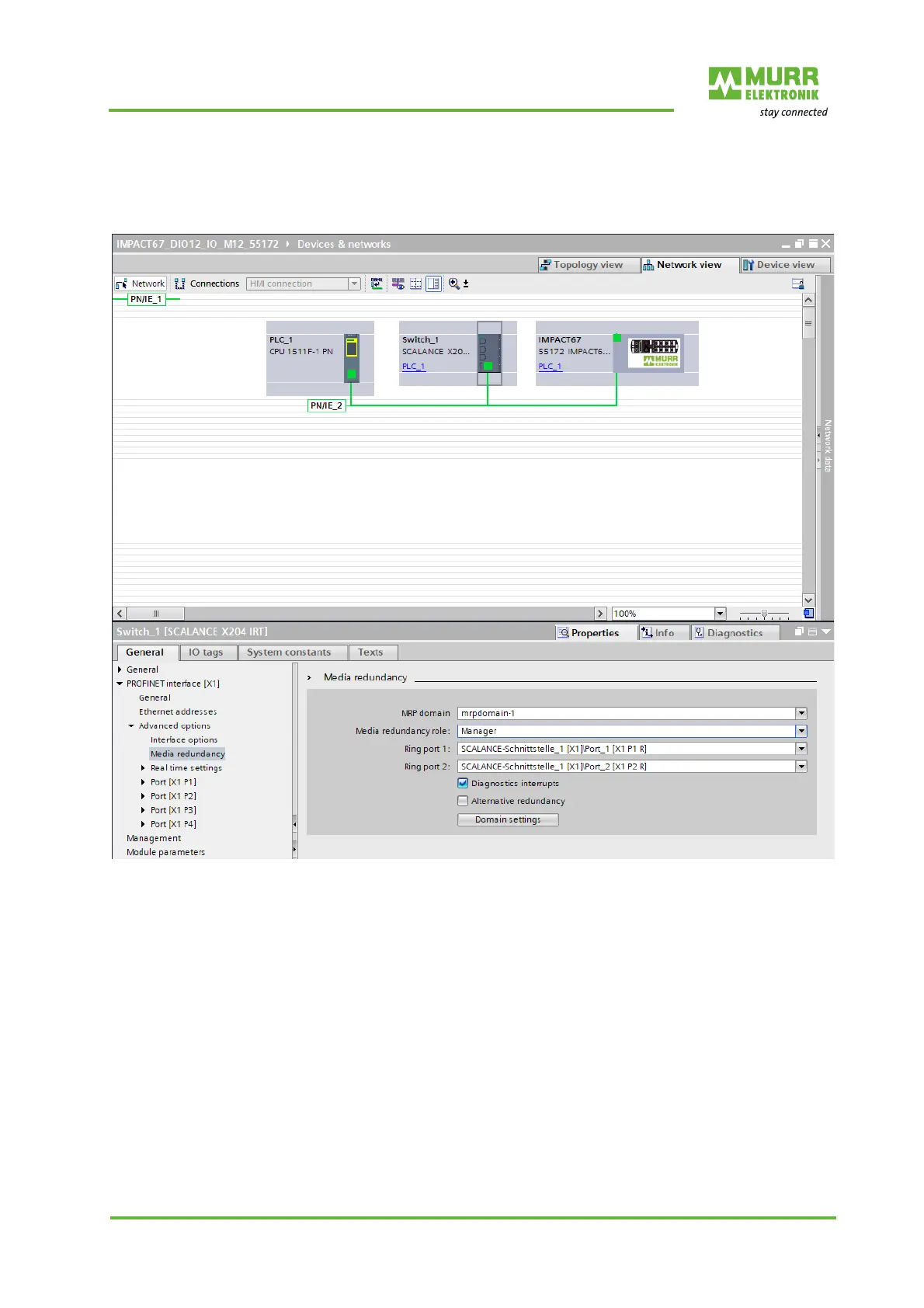

Fig. 8-36: Setting up the MPR manager
1 | Select the PROFINET Managed Switch.
2 | Navigate to the PROFINET interface | Advanced options | Media
redundancy.
3 | For “Media redundancy role”, set Manager (Auto).
4 | Enable the selection “Diagnostics interrupts”.
