Configuration/settings
User manual 55170_hdb_en_13 49 / 145
Modul configuration In the TIA portal device viwe, the module will be presented as
PROFINET users with a pre-configurated digital IO port for universal IO
channels
a virtual parameter / diagnostic module
and the IO-Link master with 4 IO-Link ports

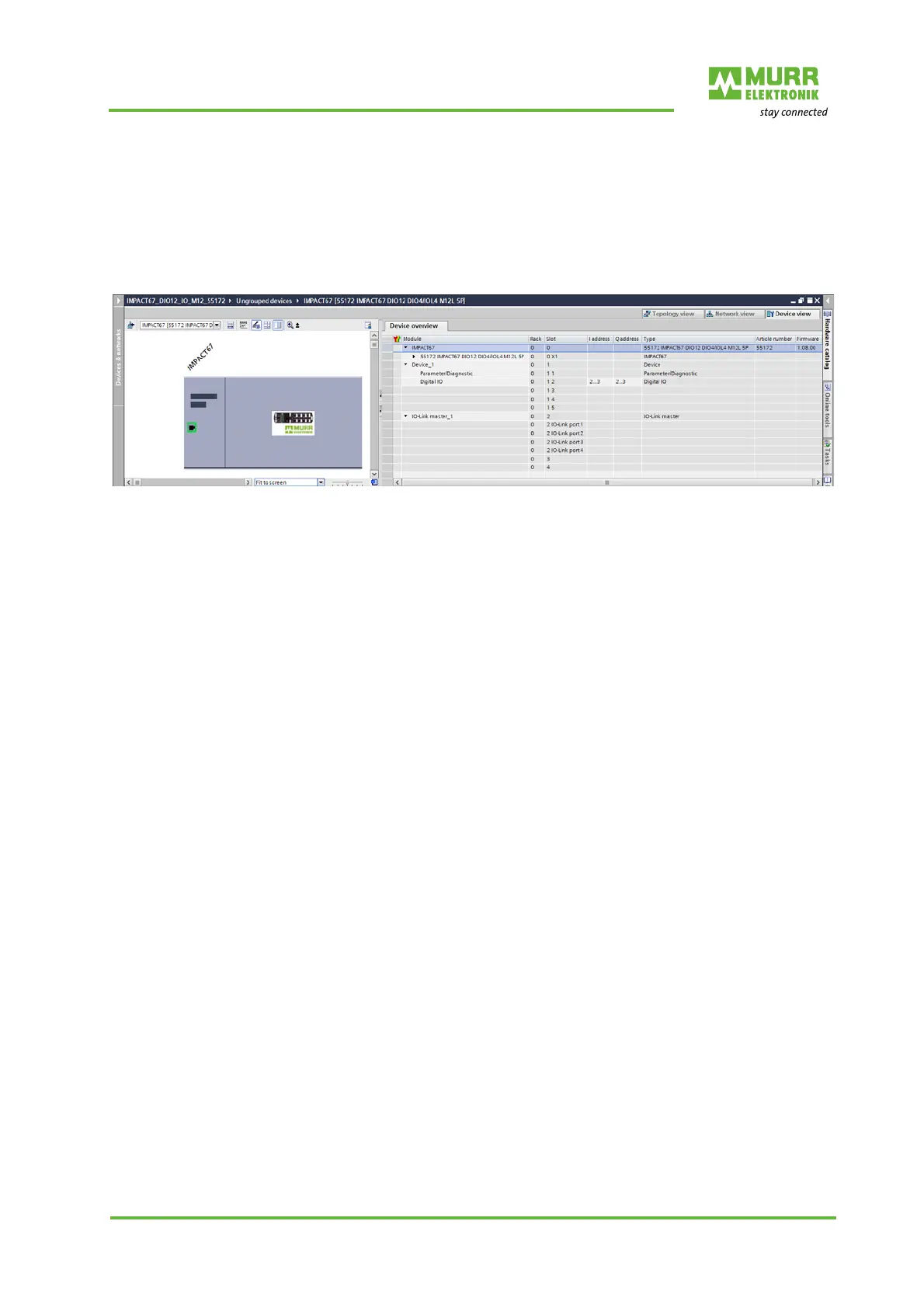

Fig. 8-1: Modul configuration
The ports created can optionally be occupied by defined virtual submodules.
Virtual modules serve to map the different items of diagnostic and status infor-
mation to the process image on the IO-Link master.
Allocation of submodules to the ports is pre-defined by GSDML file.
