Configuration/settings
User manual 55170_hdb_en_13 95 / 145
Identification of the in-
dividual modules in the
network
The identification of PNIO devices takes place via their MAC address and the
corresponding module type.
If you want to commission several modules of the same type, they need to be
clearly differentiated.
Using the following path and selecting the 'PN/IE_1' network in the network
view, you can search for available users Online | Assign PROFINET device
name.

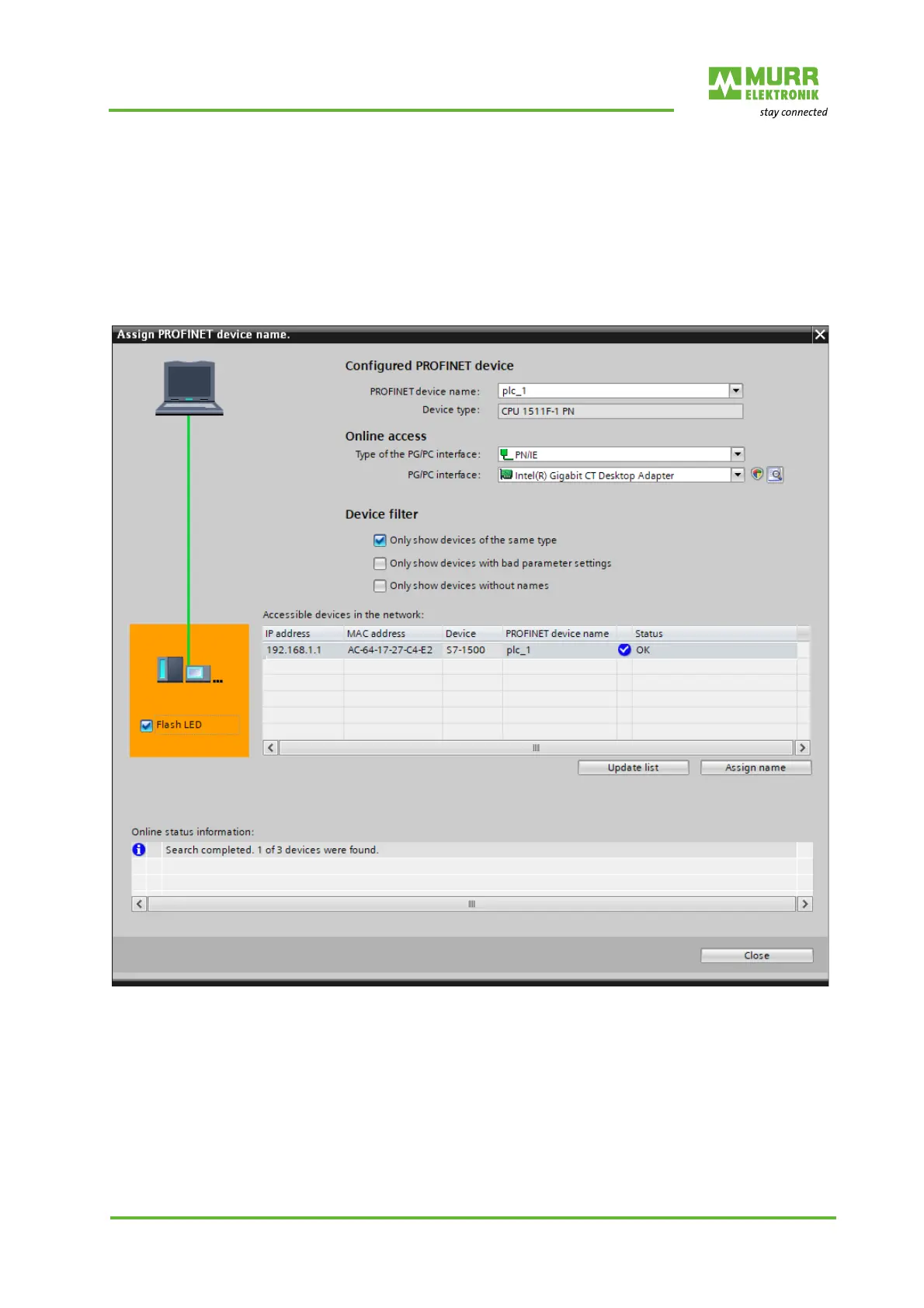

Fig. 8-26: Identifying individual modules in the network
Identification is done via the flash test. This causes the LEDs
on the selected IMPACT67 to flash. See Tab. 9-12: "Extended LED display,
identification of the module"
Mark the available module
Select the LEDs flashing option
