Configuration/settings
User manual 55170_hdb_en_13 96 / 145
Assign the PROFINET
device name
After having clearly identified a module, you can assign a name.
The IP address is entered automatically by the PNIO controller via DCP
(Discovery and Configuration Protocol).

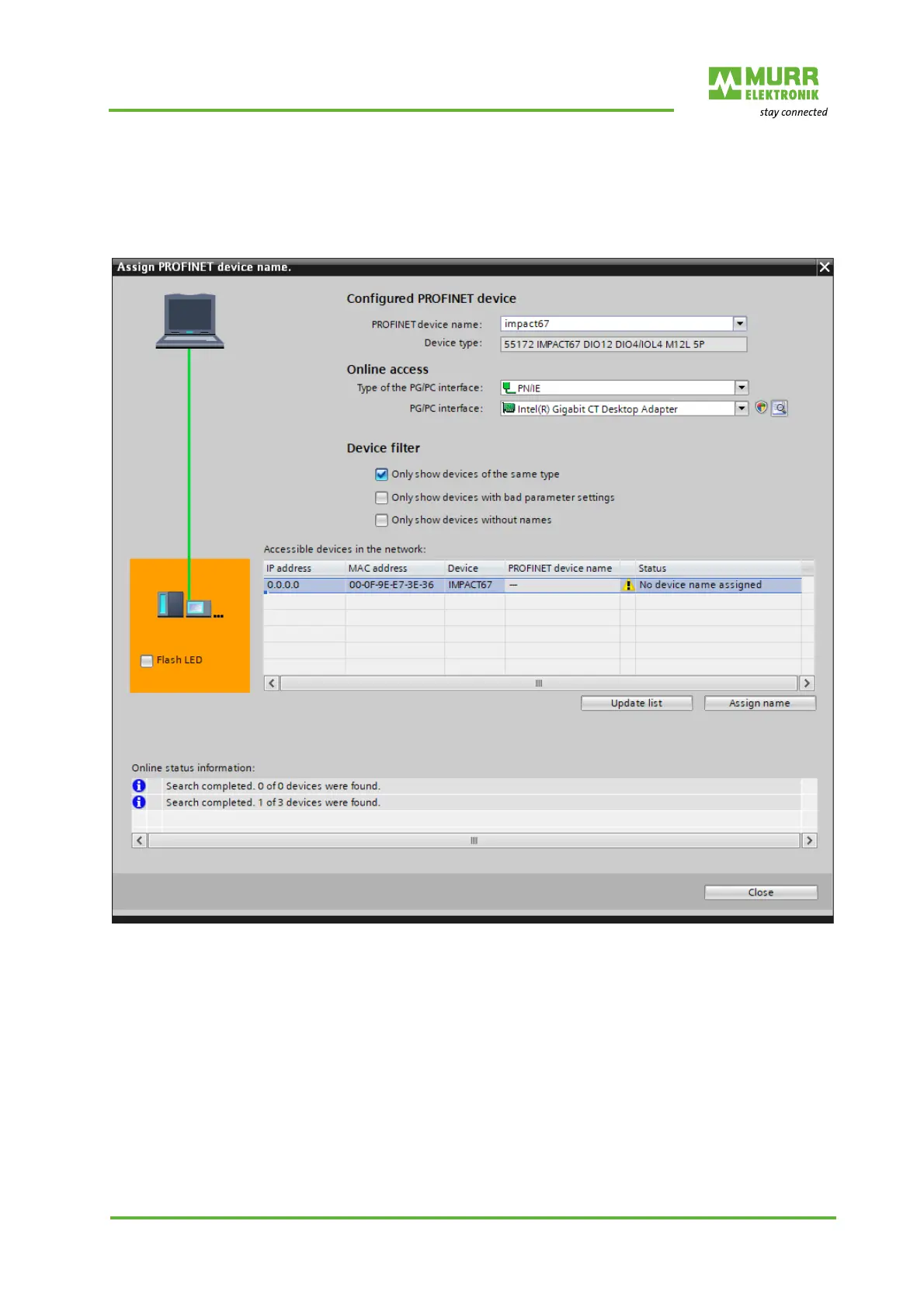

Fig. 8-27: Assign a device name
The address and name resolution is controlled only via this remanently stored
ame.
Select module | click Assign name.
