ValueCut USER MANUAL Installation
17
VC2E-A-00

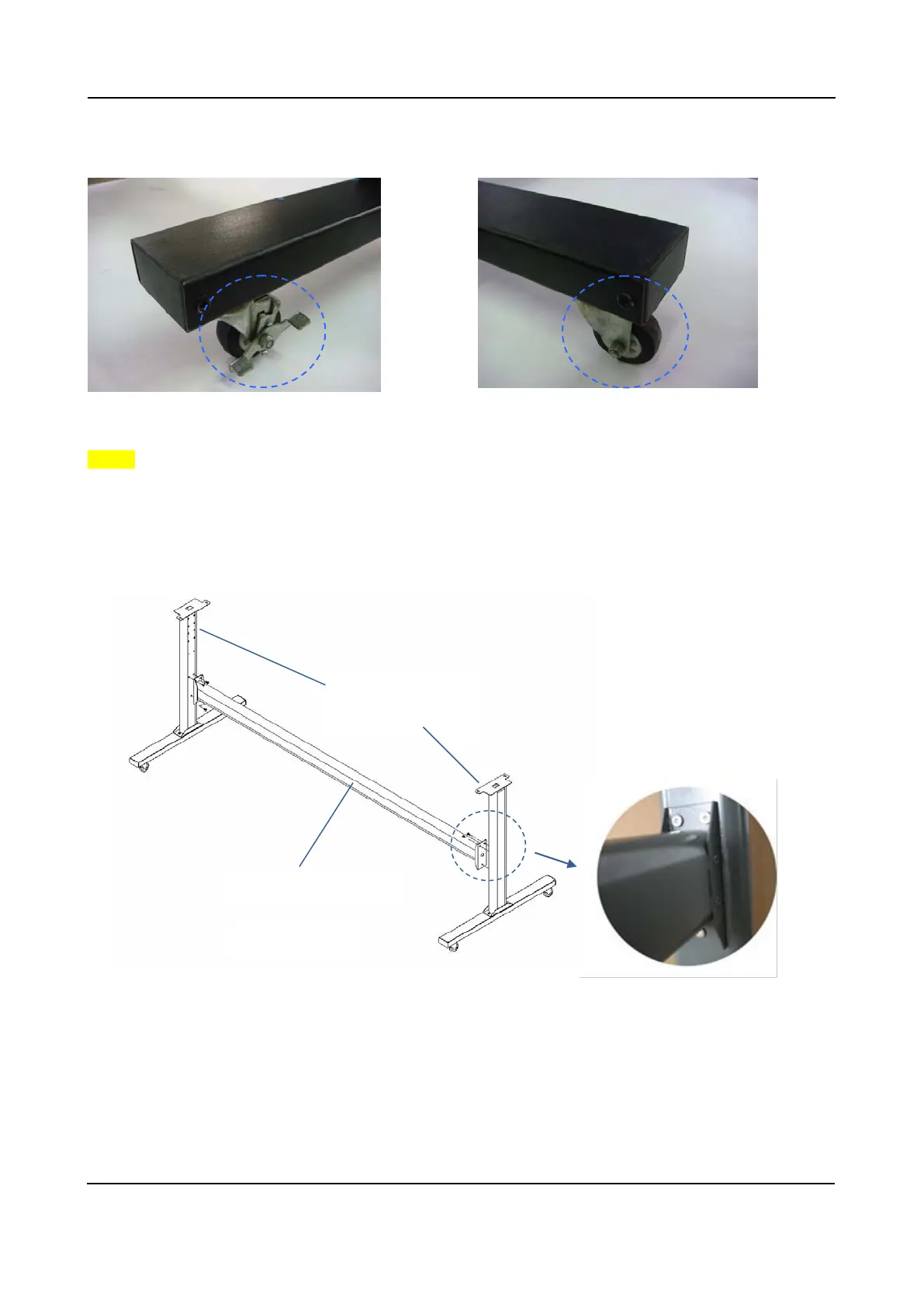

Please pay attention to the direction of the base beam (the wheel on the front end of the beam comes
with a break while the rear one is on its own).
Step 3
Place the stand beam upright on the T-stand and follow number (1) (2) to assemble (See Figure 2-4 &
2-5). There is hexagon socket head screws fasten on the T-stand on both side taken as locating pins.
(1) T-Stand
(2) Stand beam
Figure 2-4
Figure 2-5
Front
Rear
Figure2-2
Figure2-3
