Installation ValueCut USER MANUAL
20
VC2E-A-00

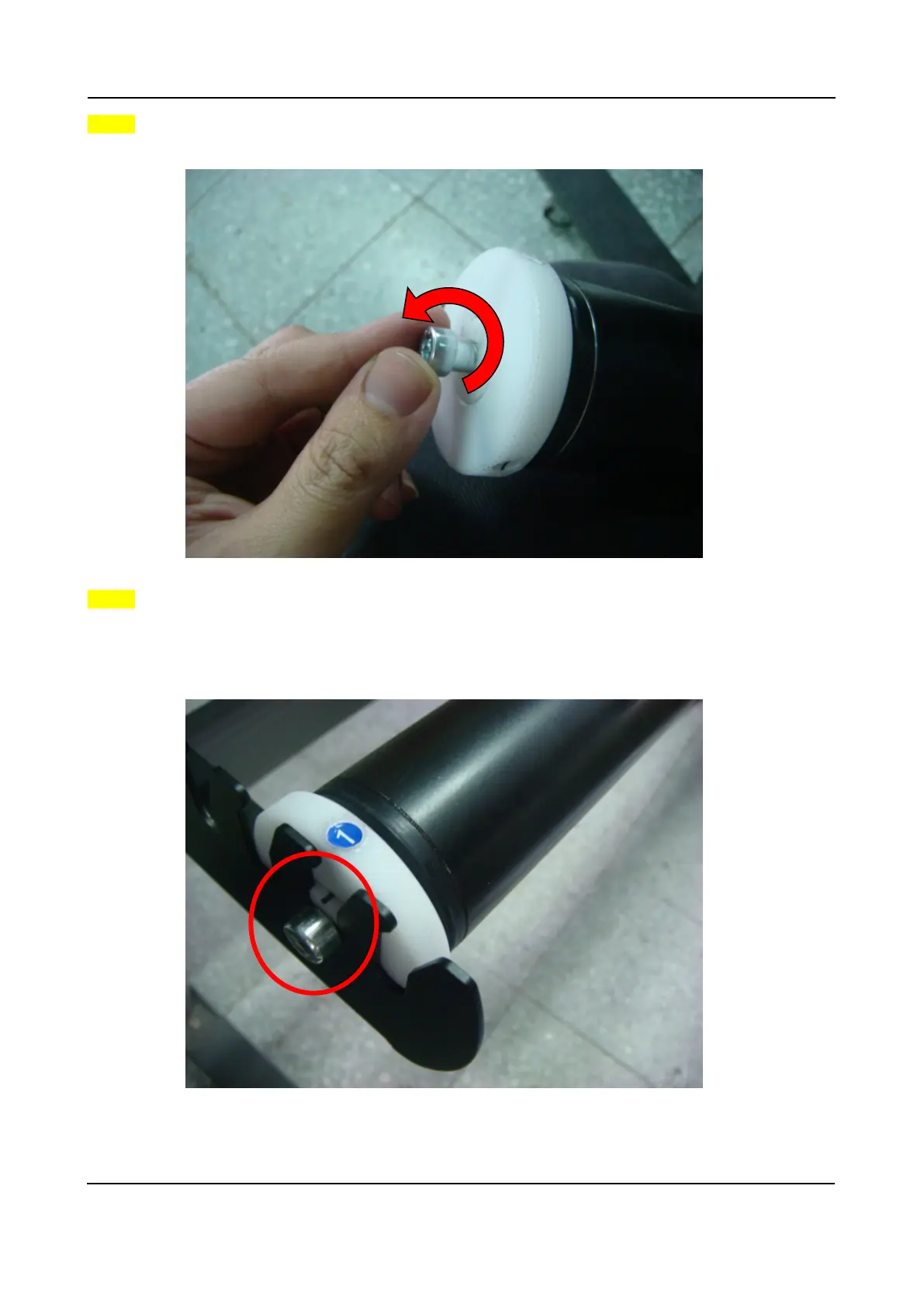

Step 8
Turn the screw counter-clock wisely for around three times after unpacking roll holder 2 (Figure 2-9).
Step 9
Insert the end of the roll holder without the damper into the left roll holder support and then insert the end
of the roll holder with the damper into the right roll holder support. Ensure the white protrusion is wedged
in the groove (
Figure 2-10).
Figure 2-9
Figure 2-10
