Step 6

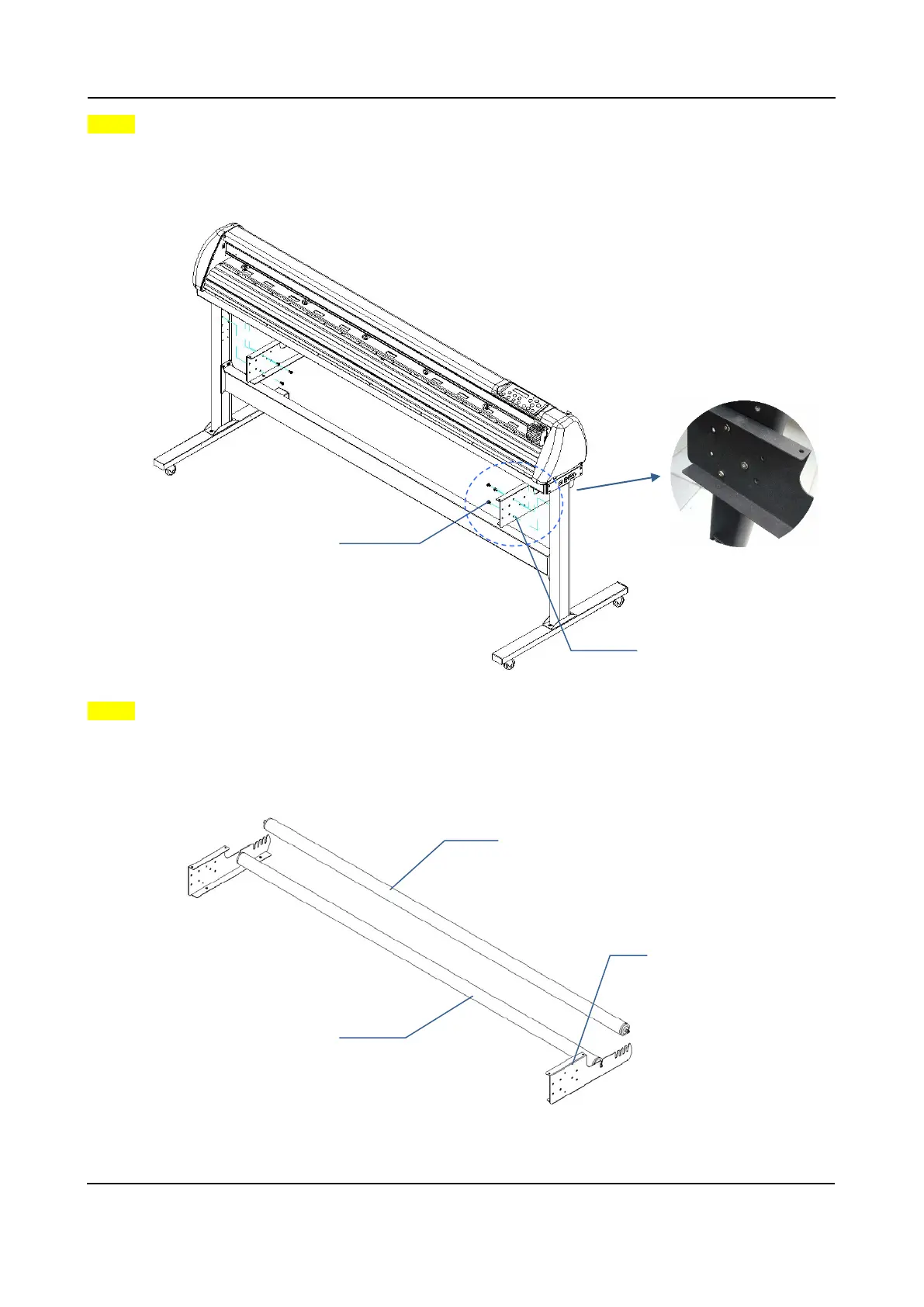

Insert the roll holder support with the screws into the holes of the stand, and then tighten them up as
shown in Figure 2-7. You could decide roll holder support’s position by inserting into different holes.
Step 7
Place roll holder 1 into the holes in the roll holder support. (Figure 2-8)
Figure 2-8
Roll holder support
Screw (M6)
Figure 2-7
Roll holder 1
Roll holder support
Roll holder 2
