Step 2
-- Option A (Use the media flanges) (Recommended)

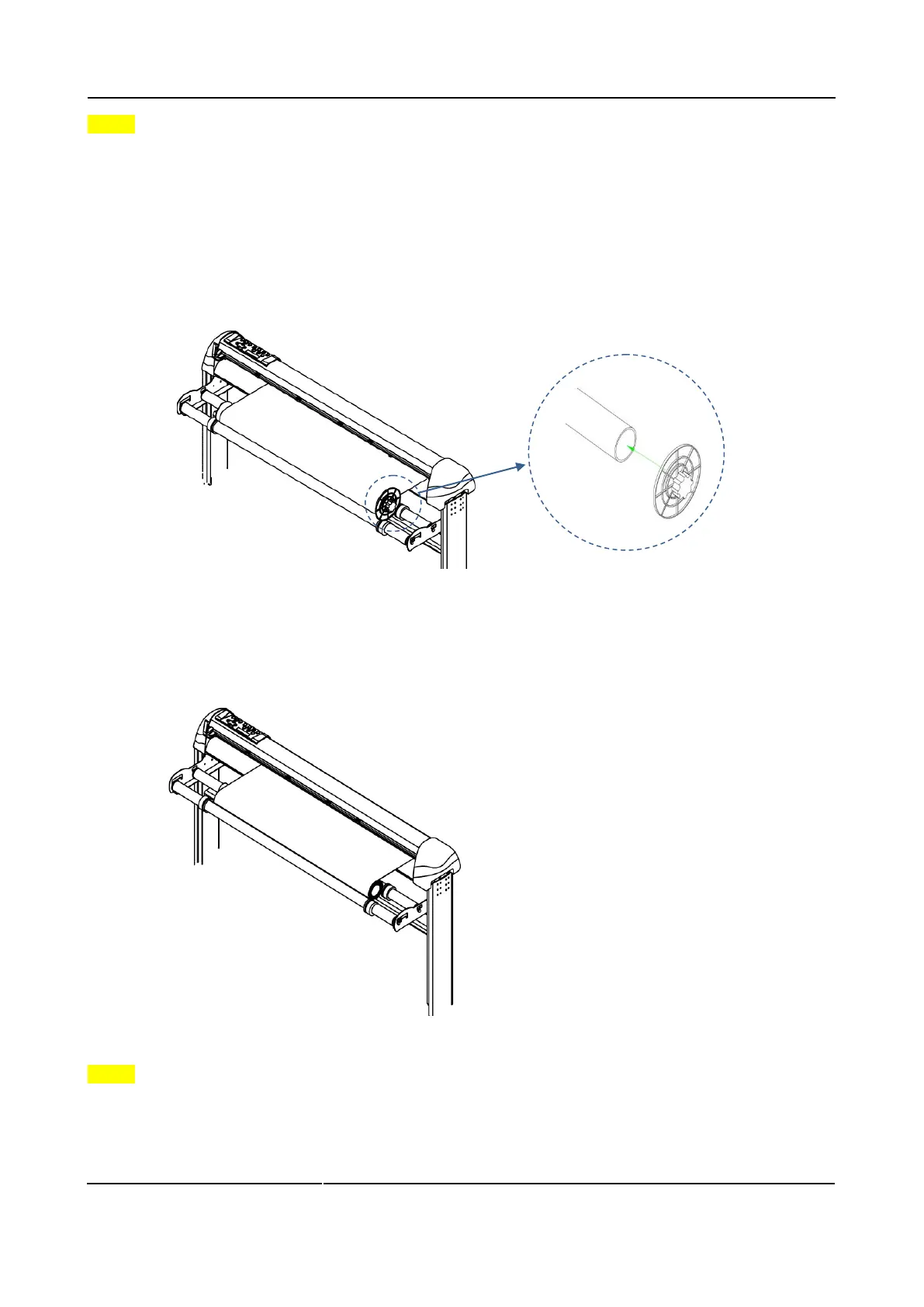

Insert a roll media flange at the end of each roll media and tighten the thumbscrew until the roll media
is firmly gripped. (
Figure 4-7)
Then put the roll media on the roll holders. Adjust the position of the roll media ensure that media
flanges are able to run in the grooves of media guide bushes. (Figure 4-8)
-- Option B
Insert the two roll holders into the roll media support set then place the roll media directly between the
two roll holders. (Figure 4-9)
Step 3
Load the media on the platen. Please refer to “4.1.1 Loading the sheet media”. After loading the roll
media, flatten the media on the platen and hold the front edge of the roll media firmly. (Figure 4-10)
Figure 4-8
Figure 4-9
Figure 4-7
