Setting using Memory Swi tch
There are 2 kinds of setttings available for the memory switch, which are the MCU setting using the
programming tool and the setting using the F159 (MTRN) instruction.

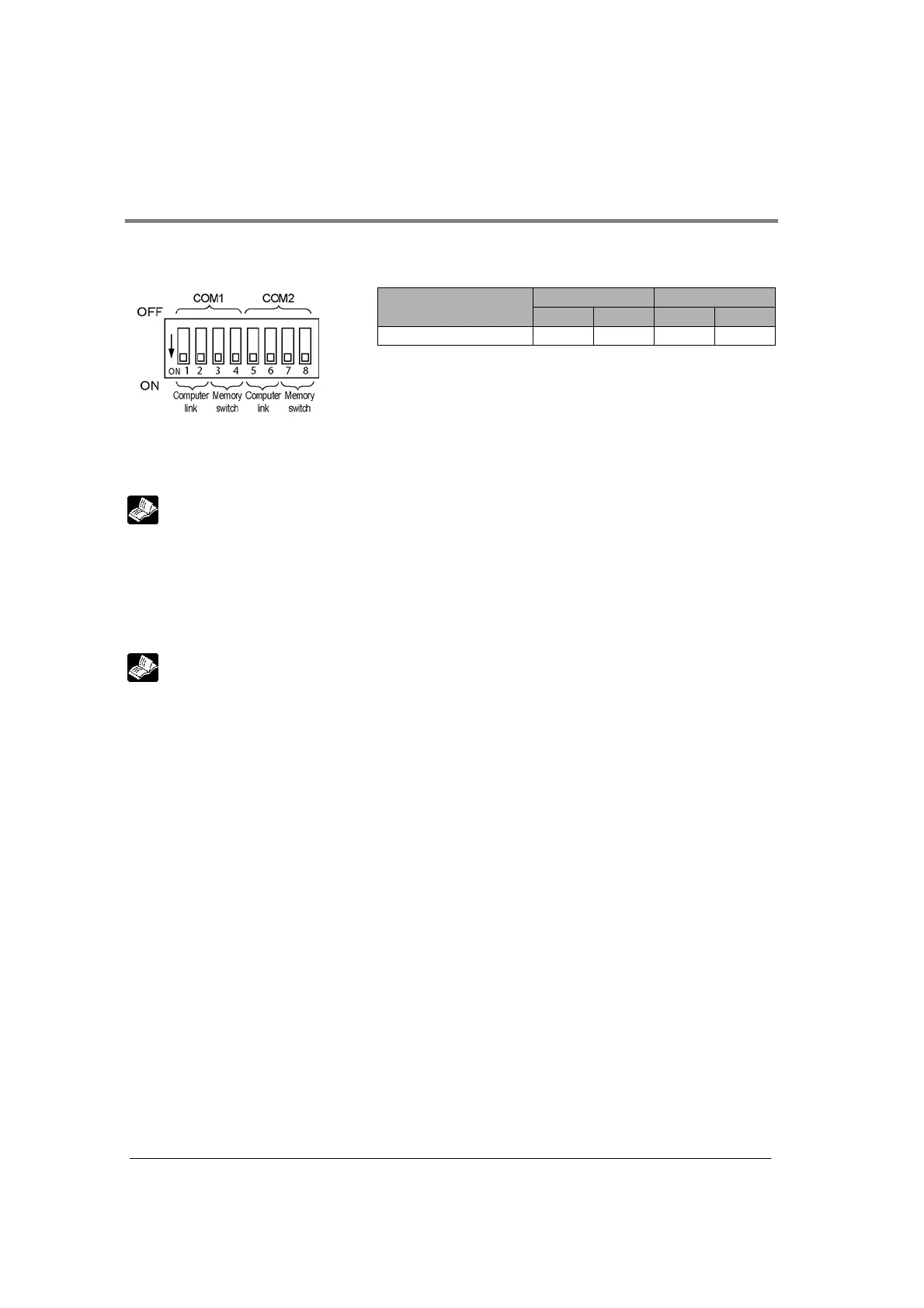

The mode speed setting switch should be set as below to enable the memory switch setting.
COM. 1 COM. 2
Baud rate
3 4 7 8
Memory switch ON ON ON ON
Setting using F159 (MTRN) instruction
Baud rate and communication format can be specified with this instruction.
Reference: <8.2 Setting Communicaiton Conditions and Monitoring>
Setting using MCU setting
The detailed settings are specified on the exclusive screen for FP2 Multi Communication Unit using the
programming tool.
Reference: <4.3 Settings> and <4.4 How to set>
