5.1.2

Operation of PC(PLC) link

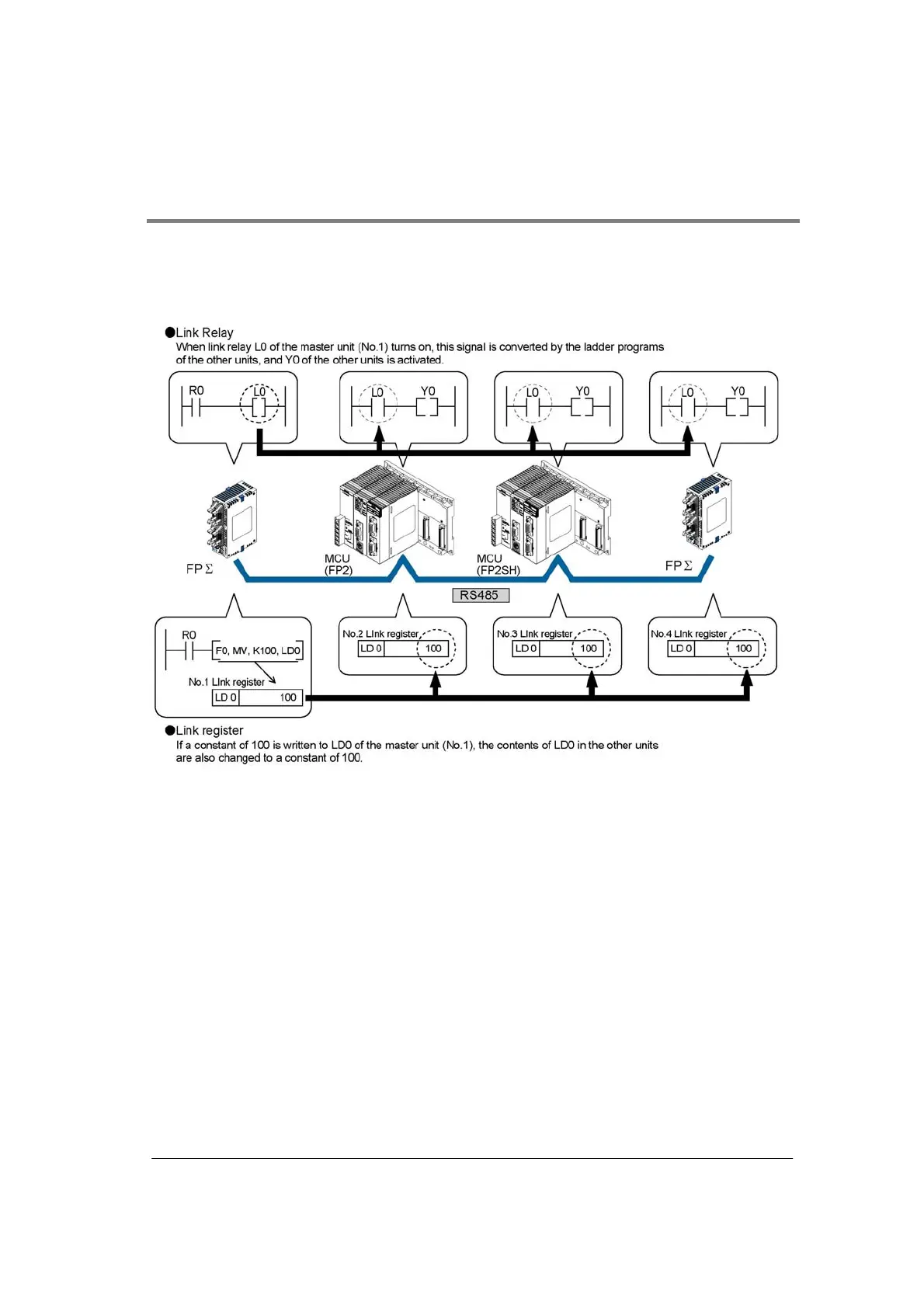

• Turning on a link relay contact in one PLC turns on the same link relay in all other PLCs on the same

network.

• Likewise, if the contents of a link register in one PLC are changed, the values of the same link register

are changed in all PLCs on the same network.
