2-5

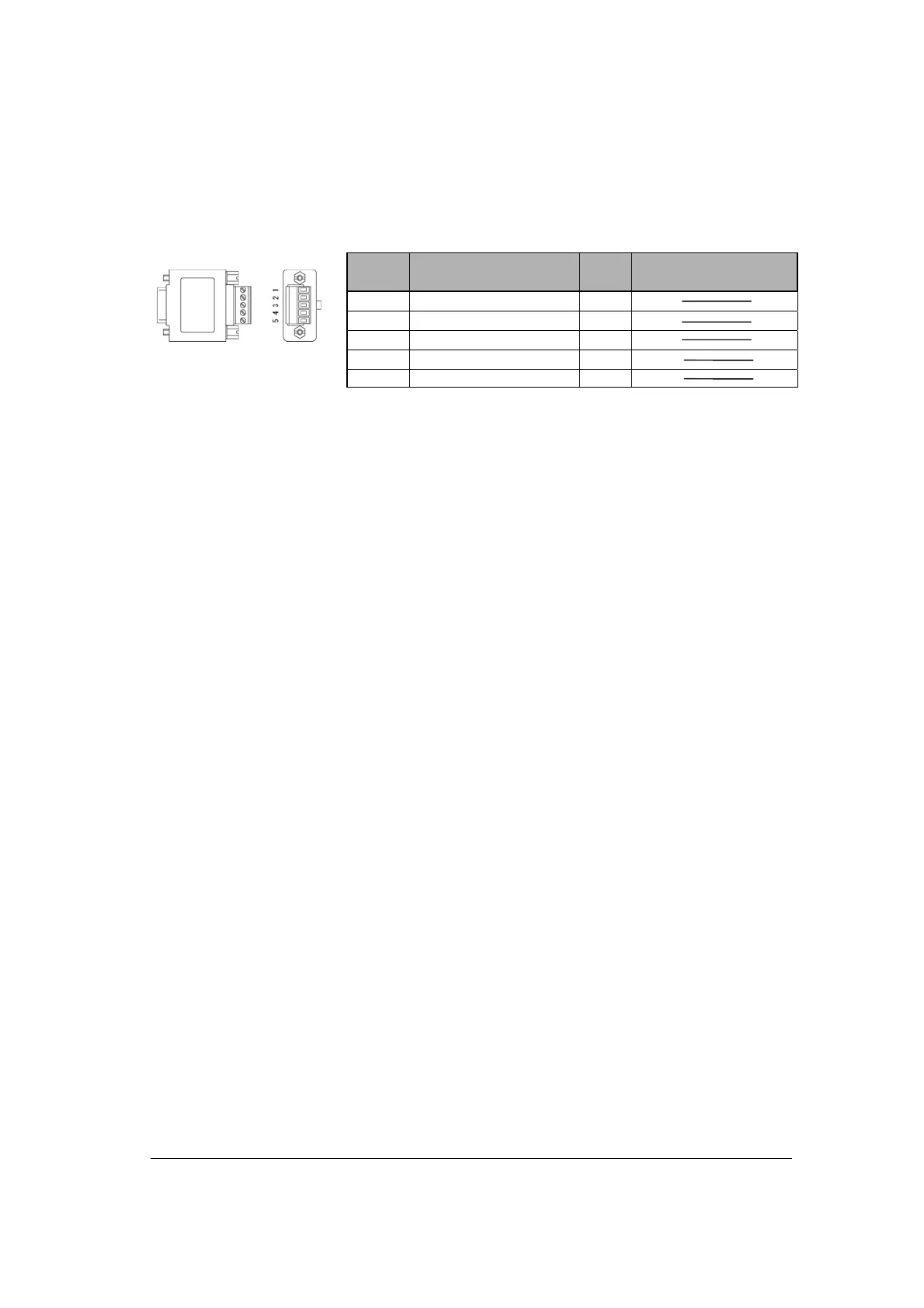

FP2 communication block (RS485) FP2-CB485 (AFP2805)
This communication block is a 1-channel unit with a two-wire RS485 port. It supports 1:N computer link,
general-purpose serial communication and the PC(PLC) link.
Pin
No.
Name Abbr. Signal direction
1 Terminal station setting E
2 Transmission line (-) -
3 Transmission line (+) +
4 Transmission line (-) -
5 Transmission line (+) +
Note) The mounting screws are connected to the ground terminals of the power supply unit.
