6-20

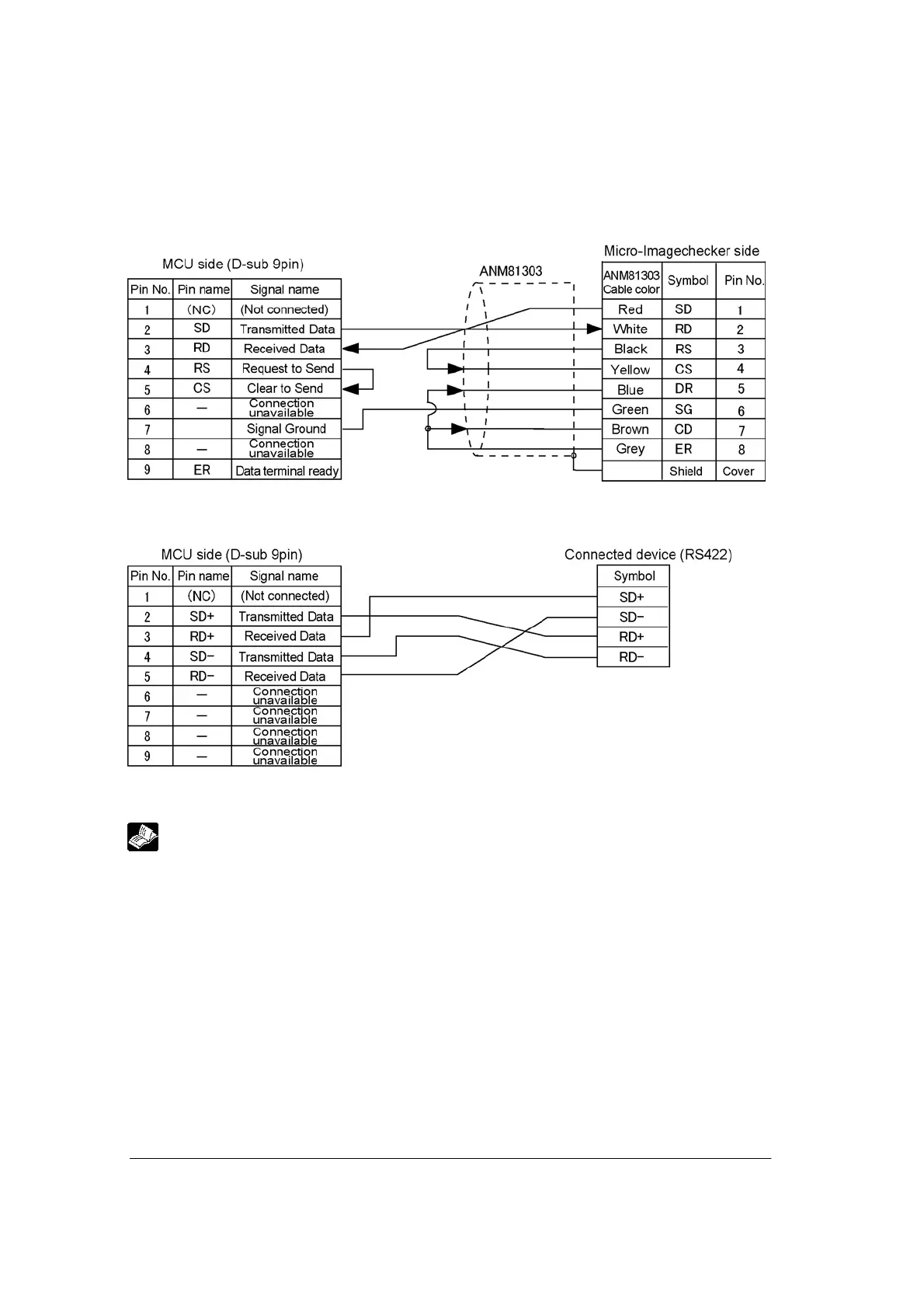

Connection example with Micro-Imagechecker A200/A100

<Using AFP2803> RS232C is connected.

Connection example with other RS422 device

Reference:

For the details on the connection with RS485 devices, refer to <6.8 Connection with 1:N Communication

(General-purpose Serial Communication)>
