10.6 disposition des bûches
Les bûches PHAZER
TM
et les braises incandescentes, exclusives aux appareils Napoléon, créent un effect incan-
descent réaliste et unique qui est différent dans chaque installation. Prenez le temps de bien installer les braises incan-
descentes pour obtenir le meilleur effet possible. La couleur des bûches peut varier. Lors de la première utilisation de
l’appareil, les couleurs deviendront plus uniformes à mesure que leurs pigments seront « absorbés » pendant le
procédé de « cuisson ».
!
AVERTISSEMENT
• Omettre de positionner les bûches conformément aux schémas ou omettre d’utiliser uniquement des bûches
spécifi quement approuvées pour cet appareil peut causer des dommages matériels ou des blessures
corporelles.
• Les bûches doivent être placées correctement à l’intérieur de l’appareil. Ne changez pas la position des
bûches car l’appareil risque de ne pas fonctionner adéquatement et un retard d’allumage risque de se
produire.
• Les bûches sont fragiles et devraient être manipulées avec soin.
48.1
!
WARNING
52.1
• Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
• The logs are fragile and should be handled with care.
INSERT PHAZER™ LOGS AND GLOWING EMBERS STATEMENT IF APPLICABLE:
52.1.1 FOR NAPOLEON
52.1.2 FOR CONTINENTAL
note:
Log numbers are located on the bottom or back of the logs.
IF APPLICABLE, INSERT DRAWING OF BURNER/SUPPORT WITH APPROPRIATE LA-
BELS (I.E. STUDS, PILOT SHIELD, BURNER PORTS, ETC.).
IF NOT APPLICABLE, HIDE THIS SECTION AND USE BOXES BELOW.
DRAFT
Burner Overview
IF APPLICABLE, USE THIS BOX TO SHOW
“NATURAL GAS ONLY” LOG PLACEMENT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
IF SPACE IS LEFT OVER, USE THIS BOX TO
SHOW CORRECT FINAL LOG
PLACEMENT WITH PHOTOS.
IF NOT, USE BOXES AS ABOVE.
IF SPACE IS LEFT OVER, USE THIS BOX TO
SHOW CORRECT FINAL LOG PLACEMENT
WITH LINE DRAWINGS.
IF NOT, USE BOXES AS ABOVE.
Propane Models Only:
Natural Gas Models Only:
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
IF APPLICABLE, USE THIS BOX TO SHOW
“PROPANE ONLY” LOG PLACEMENT.
A2
A1
Tige
Bouclier de Veilleuse
Couverture d’Air
Tige
Orifices du Brûleur
Plateau du brûleur
Partie Inférieure du Plateau
Découpe du Bas
A1
A2
1
1
2
1
2
Bumpout
Encoche
3
1
2
3
4
Bumpout
Encoche
1
2
3
4
Bumpout
Encoche
1
2
3
4
5
6
Bumpout
Encoche
5
Couverture d’Air
A2
A1
Tige
Bouclier de Veilleuse
Couverture d’Air
Tige
Orifices du Brûleur
Plateau du brûleur
Partie Inférieure du Plateau
Découpe du Bas
A1
A2
1
1
2
1
2
Bumpout
Encoche
3
1
2
3
4
Bumpout
Encoche
1
2
3
4
Bumpout
Encoche
1
2
3
4
5
6
Bumpout
Encoche
5
Couverture d’Air
A2
A1
Tige
Bouclier de Veilleuse
Couverture d’Air
Tige
Orifices du Brûleur
Plateau du brûleur
Partie Inférieure du Plateau
Découpe du Bas
A1
A2
1
1
2
1
2
Bumpout
Encoche
3
1
2
3
4
Bumpout
Encoche
1
2
3
4
Bumpout
Encoche
1
2
3
4
5
6
Bumpout
Encoche
5
Couverture d’Air
!
WARNING
52.1
• Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
• The logs are fragile and should be handled with care.
INSERT PHAZER™ LOGS AND GLOWING EMBERS STATEMENT IF APPLICABLE:
52.1.1 FOR NAPOLEON
52.1.2 FOR CONTINENTAL
note:
Log numbers are located on the bottom or back of the logs.
IF APPLICABLE, INSERT DRAWING OF BURNER/SUPPORT WITH APPROPRIATE LA-
BELS (I.E. STUDS, PILOT SHIELD, BURNER PORTS, ETC.).
IF NOT APPLICABLE, HIDE THIS SECTION AND USE BOXES BELOW.
DRAFT
Burner Overview
IF APPLICABLE, USE THIS BOX TO SHOW
“NATURAL GAS ONLY” LOG PLACEMENT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
IF SPACE IS LEFT OVER, USE THIS BOX TO
SHOW CORRECT FINAL LOG
PLACEMENT WITH PHOTOS.
IF NOT, USE BOXES AS ABOVE.
IF SPACE IS LEFT OVER, USE THIS BOX TO
SHOW CORRECT FINAL LOG PLACEMENT
WITH LINE DRAWINGS.
IF NOT, USE BOXES AS ABOVE.
Propane Models Only:
Natural Gas Models Only:
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
PLACE TEXT BOX HERE.
NOTE: ENSURE NOMENCLATURE IS
CONSISTENT THROUGHOUT.
IF APPLICABLE, USE THIS BOX TO SHOW
“PROPANE ONLY” LOG PLACEMENT.
1. Placez le bûche arrière #1 (W135-0760)
affleurant au panneau arrière. Assurez-vous
que le découpe en bas corrésponde
au bouclier de veilleuse.
2. Placez le bûche centrale #2 (W135-0761) sur
les tiges A1 et A2 sur le plateau du brûleur.

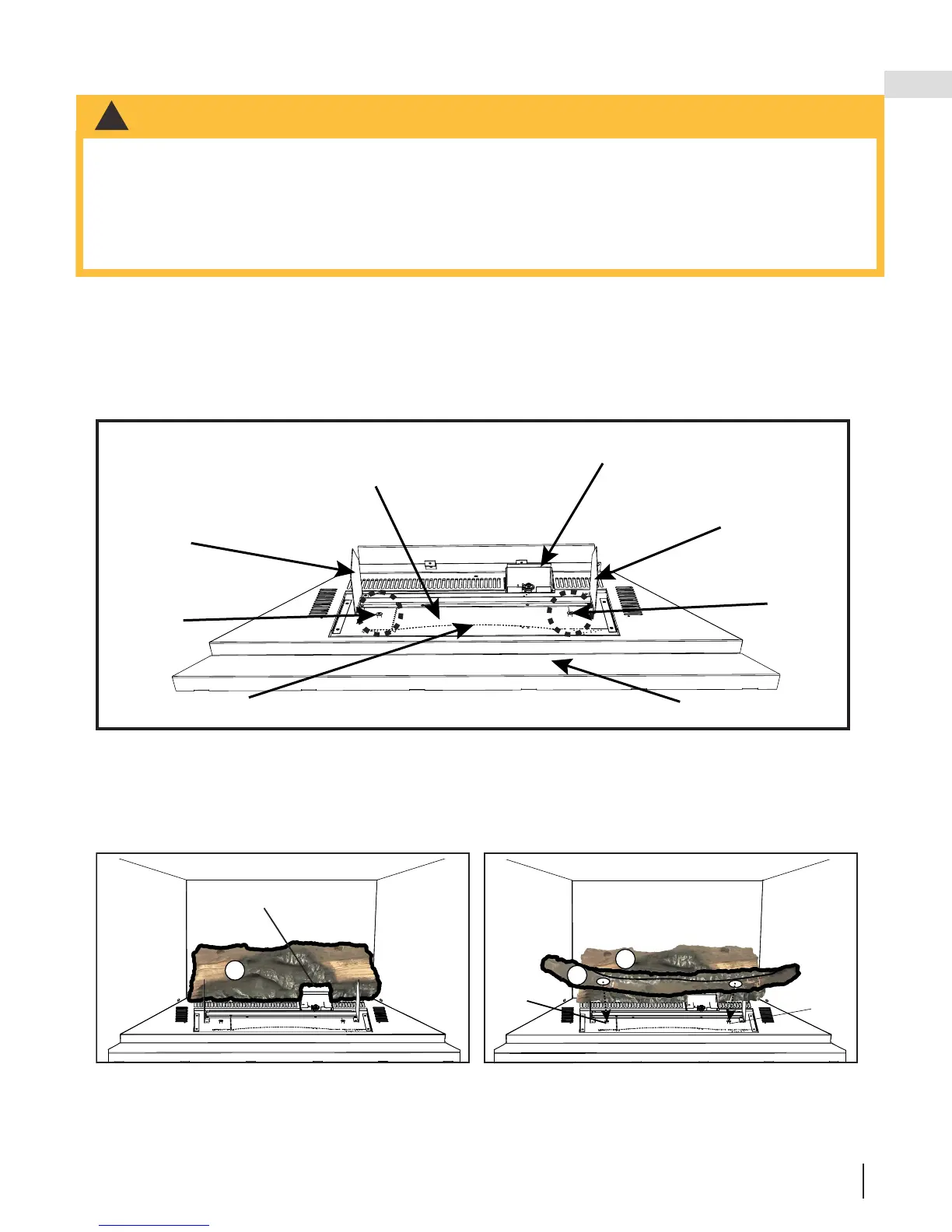

Vue d’ensemble du Brûleur
