EN
W415-1794 / 06.28.18
19
venting requirements

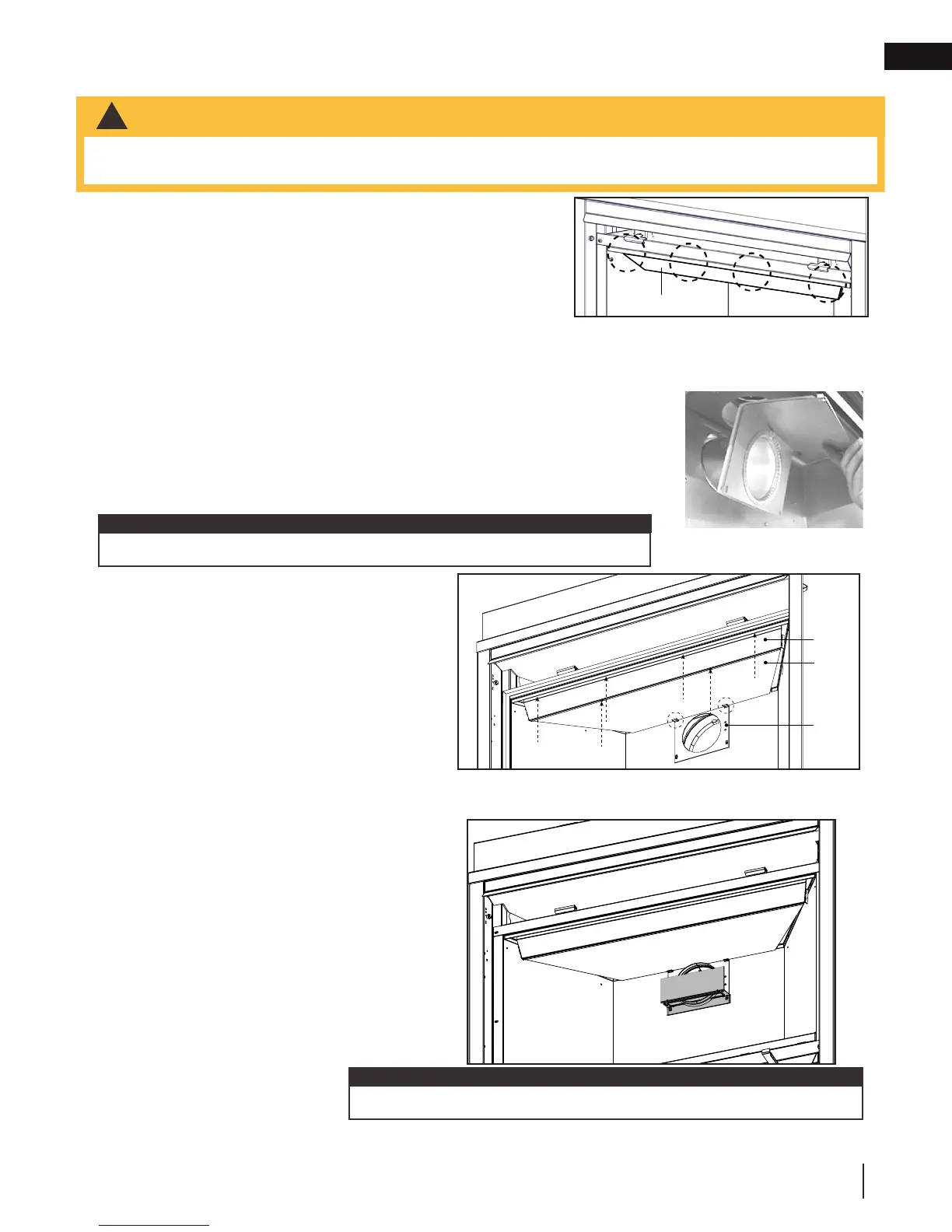

2.6 rear exit
A. Remove the safety barrier and glass front (see "safety barrier
& door removal / installation" section).
B. Remove the contents from the firebox and set aside. You will
need the exhaust flue collar and the top baffle (supplied).
C. To ease assembly, remove the four hex head screws securing
the deflector from inside the top front of the firebox (Fig. 1).
D. Attach the deflector the top baffle using 2 screws (supplied). Set aside.
E. Place the gasket (provided) over the 5" (127mm) flue collar assembly and
bend along perforation.
F. From inside the firebox, insert the 5" (127mm) flue collar through the back of
the firebox. Install the rear exit shield onto the 5" (127mm) flue collar (see "rear
exit shield (for rear vent only)" section).
G. Secure the flue collar assembly, gasket and rear exit shield using the four hex
head 3/8" thread cutting screws (Fig. 2).
H. Rest the rear edge of the top baffle
(complete with deflector) on the tabs of the
flue collar assembly. Reattach the deflector
(complete with top baffle) using the four
screws removed in step C (Fig. 3). Install the
log set, glass door and safety barrier.
Fig. 2
Fig. 1
2.7 rear exit shield (for rear vent only)
A. Remove the safety barrier assembly and
door from the appliance (see “safety barrier & door
removal / installation” section).
B. Loosen the two screws, that secure the
exhaust plate, and slide the baffle in place by sliding
its slotted openings behind the screwheads, tighten
the two previously loosened screws. Refer to the
illustration below.
C. Reinstall the door and safety barrier
assembly on the appliance (see “safety barrier &
door removal / installation” section).
• Failure to create a seal to the fi rebox with the exhaust collar assembly will cause the appliance to function
improperly and can cause injury or property damage.
Do not overtighten. The gasket needs only to be snug against the firebox.
note:
This shield is used to block the view through the venting to the outdoors.
note:
Deflector
Top
baffle
Flue collar
assembly
Fig. 3
