Napoleon Ascent X Series Installation Manual

W415-1794 / 06.28.18
EN
14
venting requirements
16" (40.6cm)
minimum
40 FT (12M)
maximum
3 FT (1M)
minimum
base of air collar
30”
MINIMUM
12”
MINIMUM
TOP EXIT INSTALLATION
REAR EXIT INSTALLATION
30”
MINIMUM
12”
MINIMUM
MAXIMUM 10FT VENT LENGTH
6” (152mm)
RISE MINIMUM
20” (50.8cm)
MAXIMUM
20” (50.8cm)
MAXIMUM
6” (152mm)
RISE MINIMUM
30”
MINIMUM
12”
MINIMUM
TOP EXIT INSTALLATION
REAR EXIT INSTALLATION
30”
MINIMUM
12”
MINIMUM
MAXIMUM 10FT VENT LENGTH
6” (152mm)
RISE MINIMUM
20” (50.8cm)
MAXIMUM
20” (50.8cm)
MAXIMUM
6” (152mm)
RISE MINIMUM

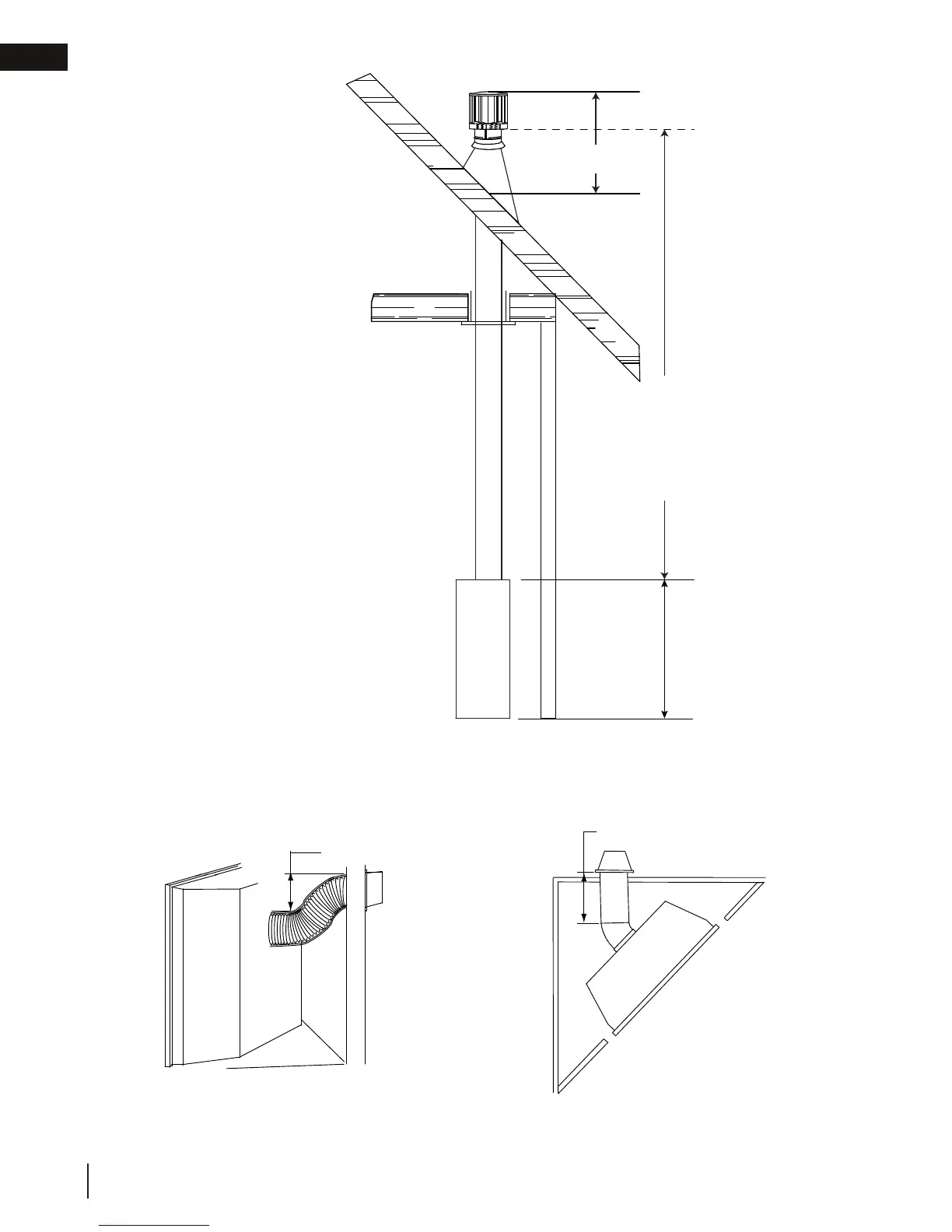

2.1.1 corner termination
The maximum vent length for a corner installation is 20" (50.8cm) of horizontal run, in addition to the 45°
offset. Using rigid venting, zero rise is acceptable. Using flexible venting, it is required to maintain a 6"(152mm)
rise. See illustrations below.
FLEX VENTING
RIGID VENTING
