10.4 minimum combustible mantel clearances

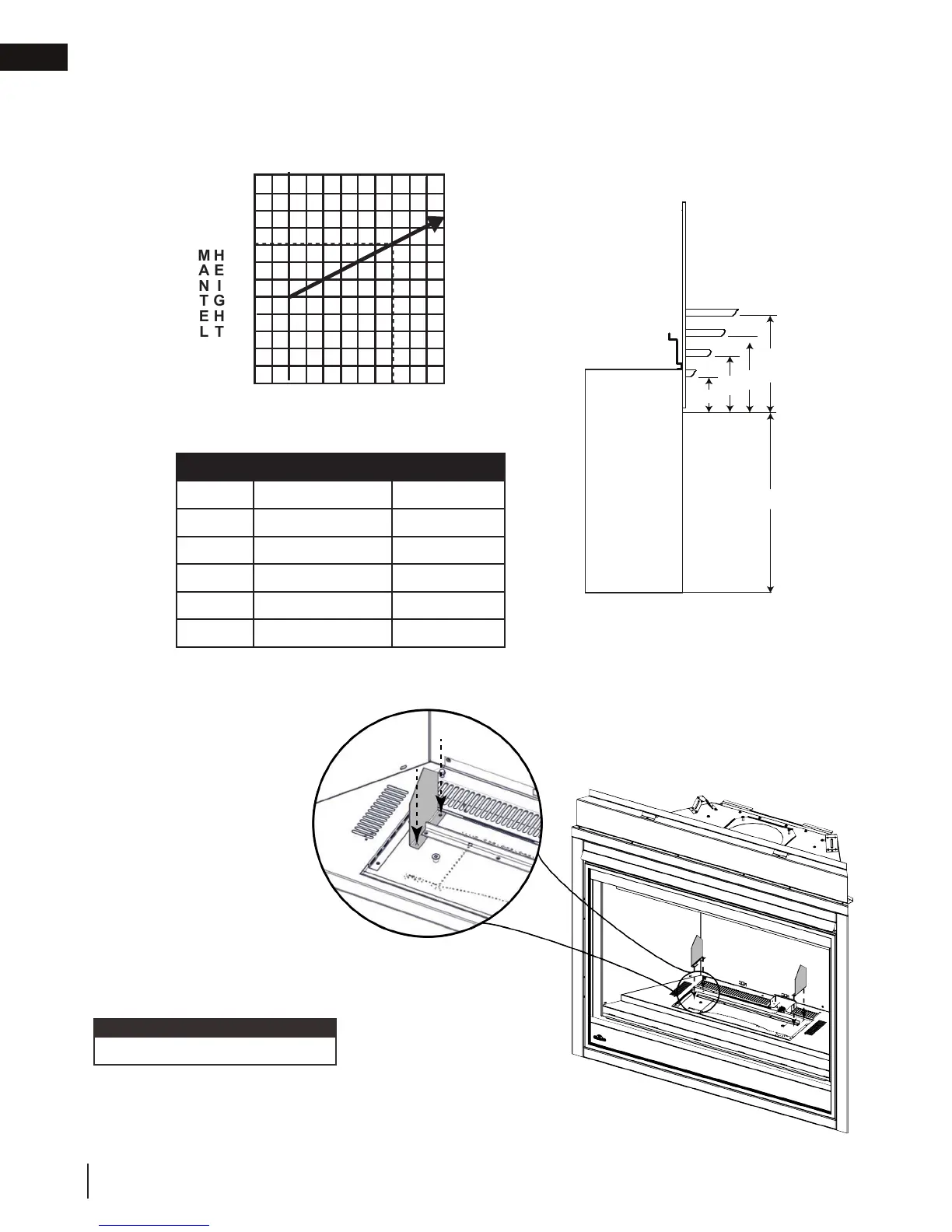

Combustible Mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the clear-
ance needed.
0
3 4 7
14
16
1 2 5 6
12
HEIGHT MANTEL
MANTEL DEPTH
8
10
6
4
18
20
8 109
22
24
26
E
D
C
B
A
E
D
C
B
A
Appliance
Opening
MANTEL DIMENSIONS
Ref Height Depth
A
29 5/8” (75.2cm) N/A
B
8" (20.3cm) 2" (51mm)
C
10" (25.4cm) 4" (102mm)
D
12” (30.5cm) 6" (152mm)
E
14” (35.6cm) 8" (203mm)
10.5 air cover installation
Install one air cover at each end of the burner stiffener rail (2 total) using
4 screws (supplied).
The air covers must be installed.
note:
