2.8 top exit
• Failure to create a seal to the fi rebox with the exhaust collar assembly will cause the appliance to function
improperly and can cause injury or property damage.
OUTER
COVERPLATE
GASKET
‘O’ RING
1 1/2” INSULATION BATT
GASKET
EXHAUST
FLUE COLLAR
OUTER
COVERPLATE
GASKET
INNER
COVERPLATE
COUVERCLE
EXTÉRIEUR
‘O’ RING
COLLET
D’ÉVACUATION
JOINT
D’ÉTANCHÉITÉ
JOINT
D’ÉTANCHÉITÉ
JOINT
D’ÉTANCHÉITÉ
(1 1/2”) JOINT
D’ÉTANCHÉITÉ
COUVERCLE
EXTÉRIEUR
COUVERCLE
INTÉRIEURE

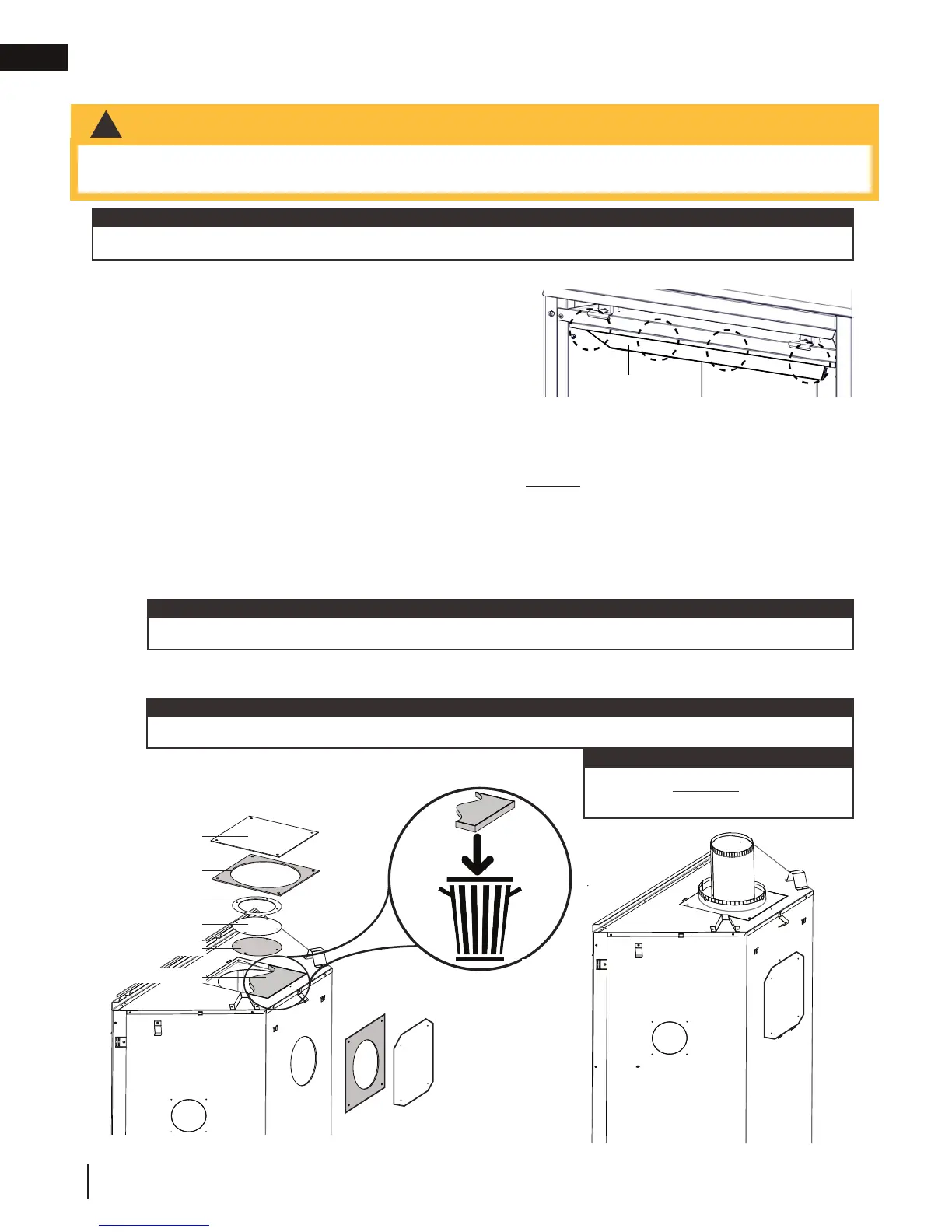

A. Remove the safety barrier and glass door (see "safety barrier & door removal / installation" section).
B. Remove the contents from the firebox and set aside.
You will need the exhaust and air inlet collar.
C. To ease assembly, remove the 4 hex head screws,
securing the deflector from inside the top front of the
firebox (Fig. 1). Set deflector aside.
D. Remove the outer cover plate and gasket by removing the 4 screws. Install the outer cover plate and
gasket onto the back of the appliance using the 4 previously removed screws (Fig. 2).
E. Remove the 1 1/2" (38.1mm) thick batt of insulation and discard (Fig. 2).
F. Remove the 4 screws securing the inner cover plate, 'o' ring, and gasket. Remove the inner cover plate
and discard (Fig. 2).
G. Reinstall the 'o' ring and gasket into the appliance using the previously removed screws (Fig. 2).
H. Place the 8" (203mm) intake collar and gasket onto the top of the appliance and secure using 4 screws.
I. From inside the firebox, install the 5” (127mm) exhaust collar with gasket up through the top of the firebox,
and secure with the the 4 hex head 3/4" black screws supplied in the manual baggie.
J. Reinstall the top deflector, log set, glass door, and safety barrier.
OUTER
COVERPLATE
GASKET
‘O’ RING
1 1/2” INSULATION BATT
GASKET
OUTER
COVERPLATE
GASKET
INNER
COVERPLATE
COUVERCLE
EXTÉRIEUR
‘O’ RING
COLLET
D’ÉVACUATION
JOINT
D’ÉTANCHÉITÉ
JOINT
D’ÉTANCHÉITÉ
JOINT
D’ÉTANCHÉITÉ
(1 1/2”) JOINT
D’ÉTANCHÉITÉ
COUVERCLE
EXTÉRIEUR
COUVERCLE
INTÉRIEURE
Fig. 1
Fig. 2
Fig. 3
This appliance has been factory shipped as a rear vent.
note:
Do not overtighten. The gasket needs only to be snug against the firebox.
note:
The manual baggie supplies the gasket and screws (packaged in another separate baggie).
tip:
note:
Top baffle must not be installed
for top exit applications.
