Napoleon Ascent X Series Installation Manual

W415-1794 / 06.28.18
EN
24
rough framing

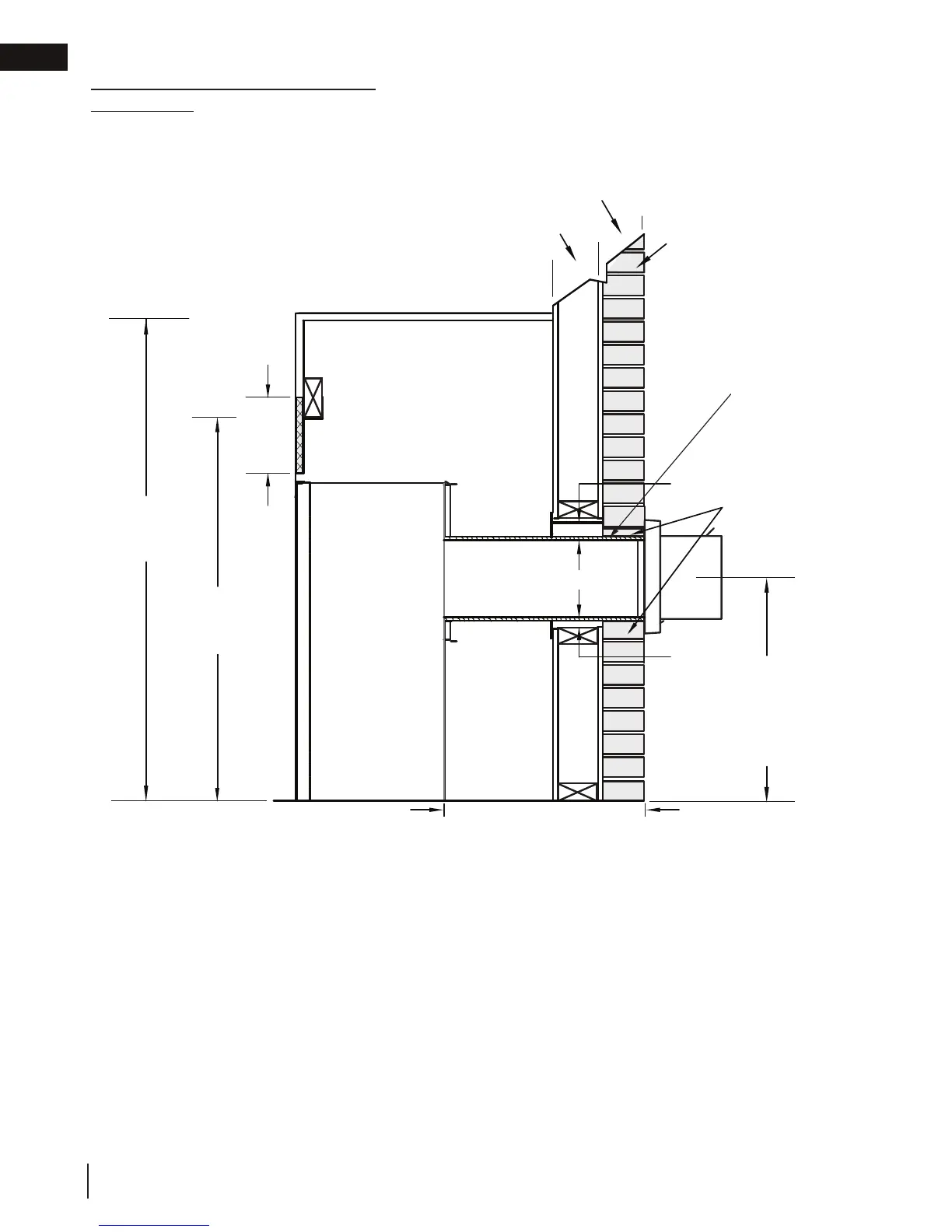

REAR EXIT ENCLOSURE
The appliance requires a minimum enclosure height of 52” (132.1cm). For temperature requirements, the enclosure
space around and above the appliance must be left unobstructed.
For rear vent termination exceeding 10" (254mm).
NON-COMBUSTIBLE
0” (0MM) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
BRICK
COMBUSTIBLE
3"
[76mm]
1"-10"
[25mm-254mm]
VENT RUN
INCOMBUSTIBLE
0” (0MM) SI LES MATÉRIAUX
SONT INCOMBUSTIBLES,
COMME DE LA BRIQUE
ET DE LA PIERRE.
BRIQUE
1"-10"
[25mm-254mm]
ÉVENTS
COMBUSTIBLE
1"
[25mm]
3"
[76mm]
COMBUSTIBLE
NON-COMBUSTIBLE
1"
[25mm]
3"
[76mm]
BRICK
0” (0MM) IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
10"-20"
[254mm-508mm]
VENT RUN
COMBUSTIBLE
1"
[25mm]
3"
[76mm]
10"-20"
[254mm-508mm]
ÉVENTS
INCOMBUSTIBLE
0” (0MM) SI LES MATÉRIAUX
SONT INCOMBUSTIBLES,
COMME DE LA BRIQUE
ET DE LA PIERRE.
BRIQUE
INSULATED SLEEVE
(SUPPLIED)
Maximum Rear Vent Clearances
(Example 1)
41 1/8”
(104.5cm)
24 3/16”
(61.4cm)
Minimum
plus rise*
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 1”
(25mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 3” (76.2mm) at
the top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.
52”
(132.1cm)
8”
(203mm)
non-
combustible
material
