Navistar MaxxForce 7

To Next Page

To Previous Page

SECTION1–ENGINESYSTEMS

ComponentLocation–Front

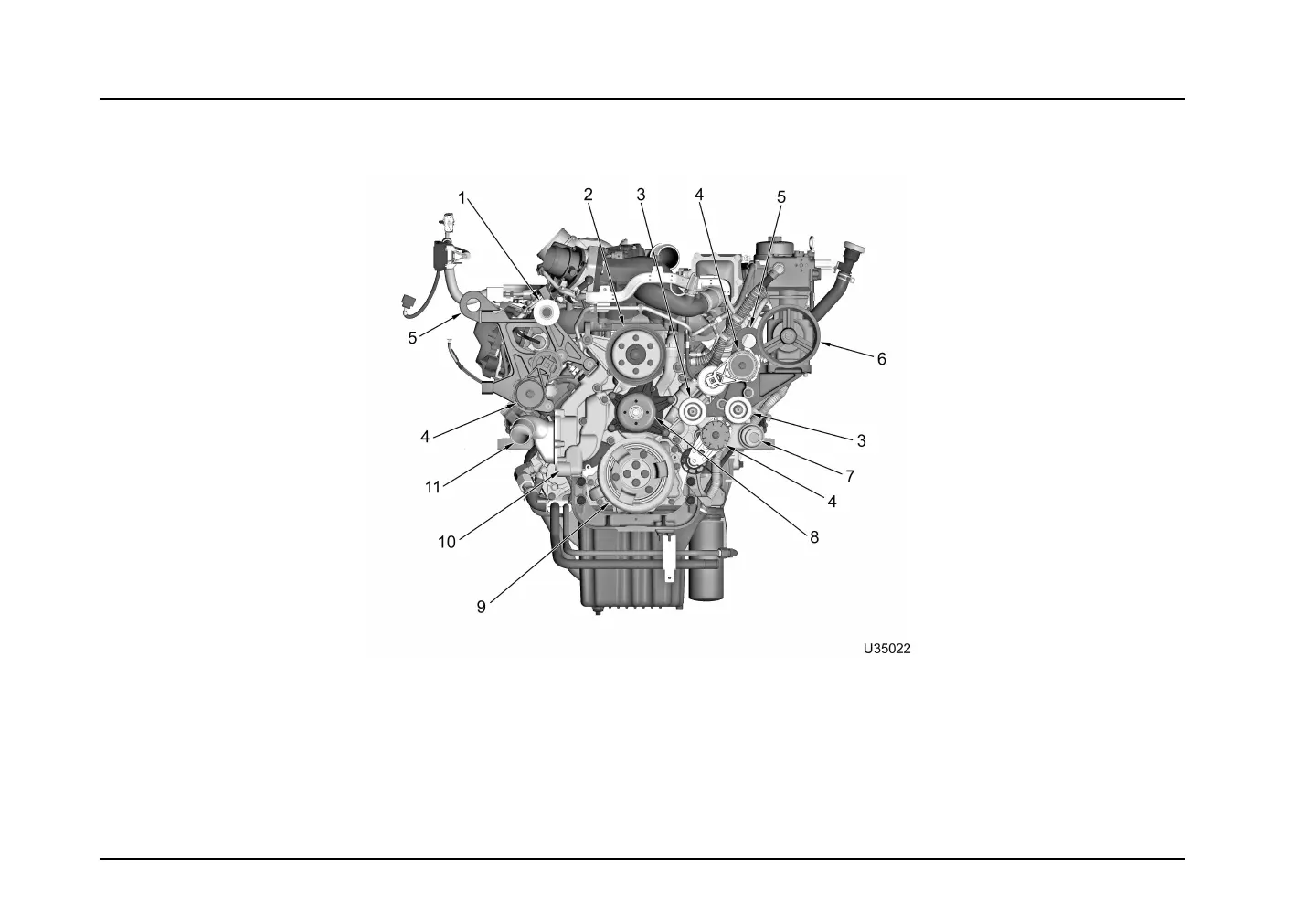

Figure5Front

1.Groovedidlerpulley

2.Fanpulley

3.Flatidlerpulley(2)

4.Belttensioner(3)

5.Liftingeye(2)

6.Aircompressorpulley

7.Coolantinlet

8.Waterpumppulley

9.Vibrationdamperandpulleys

10.Heaterreturn

11.Thermostathousing(coolantoutlet)

Page28
