SECTION1–ENGINESYSTEMS
ComponentLocation–Top

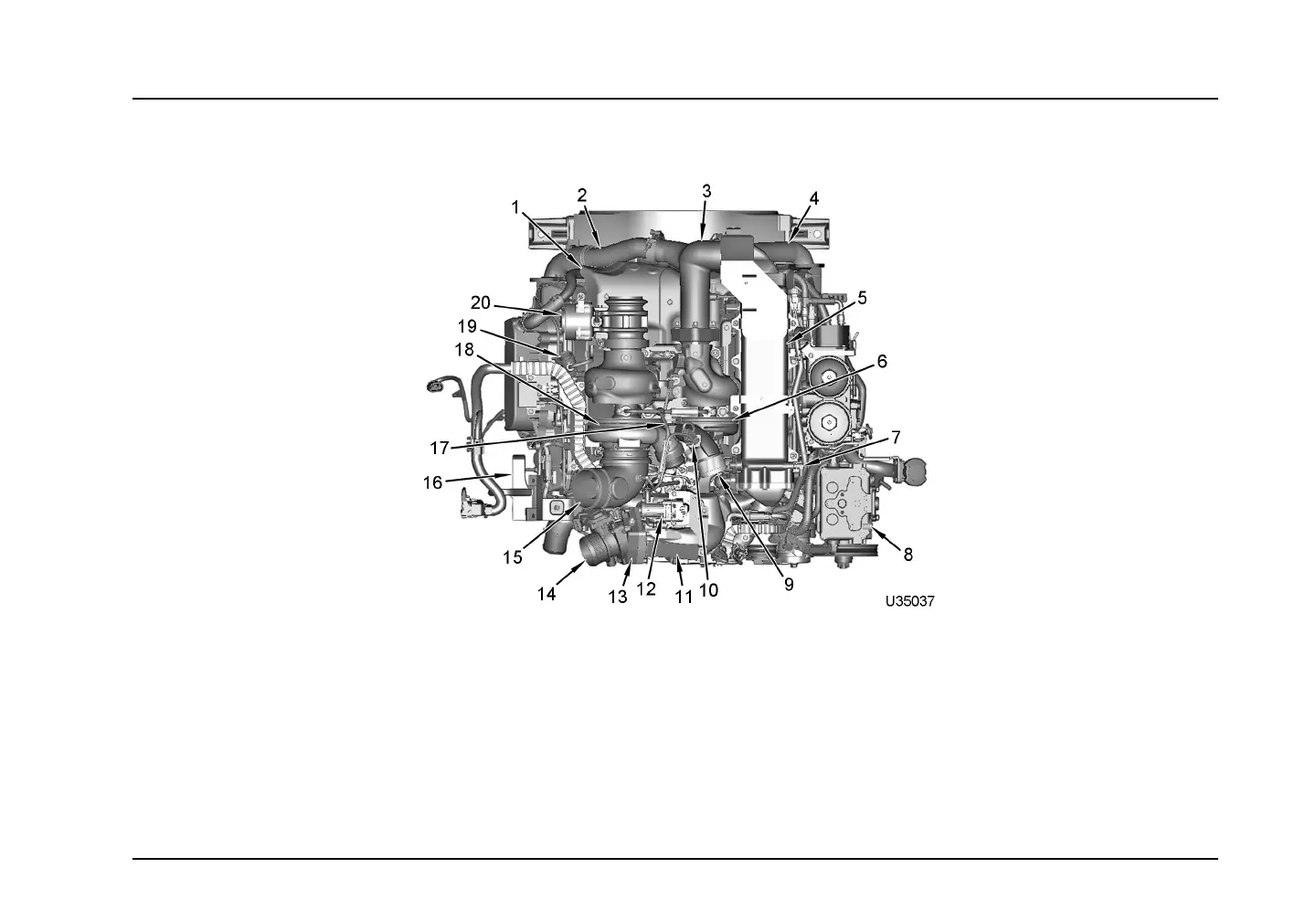

Figure4Top
1.Pumpcoverheatshield(right)
2.Rightexhausttubeassembly
3.Exhaustturbochargerinletmanifold
4.Leftexhausttubeassembly
5.ExhaustGasRecirculation(EGR)cooler
6.High-pressureturbochargerassembly
7.Enginecoolantvent
8.Aircompressorassembly
9.Turbochargeroutlet
10.TurbochargerOutletT emperature(TCOT)
sensor
11.Manifoldmixer(exhaustemissionlabel
location)
12.EGRvalve
13.InletAirHeater(IAH)
14.EngineThrottleValve(ETV)
15.Turbochargerinletductassembly
16.PrimaryFreoncompressormount
17.Turbochargeroilsupplytube
18.Low-pressureturbochargerassembly
19.Heatersupply
20.ThermalManagementValve(TMV)
