SECTION1–ENGINESYSTEMS

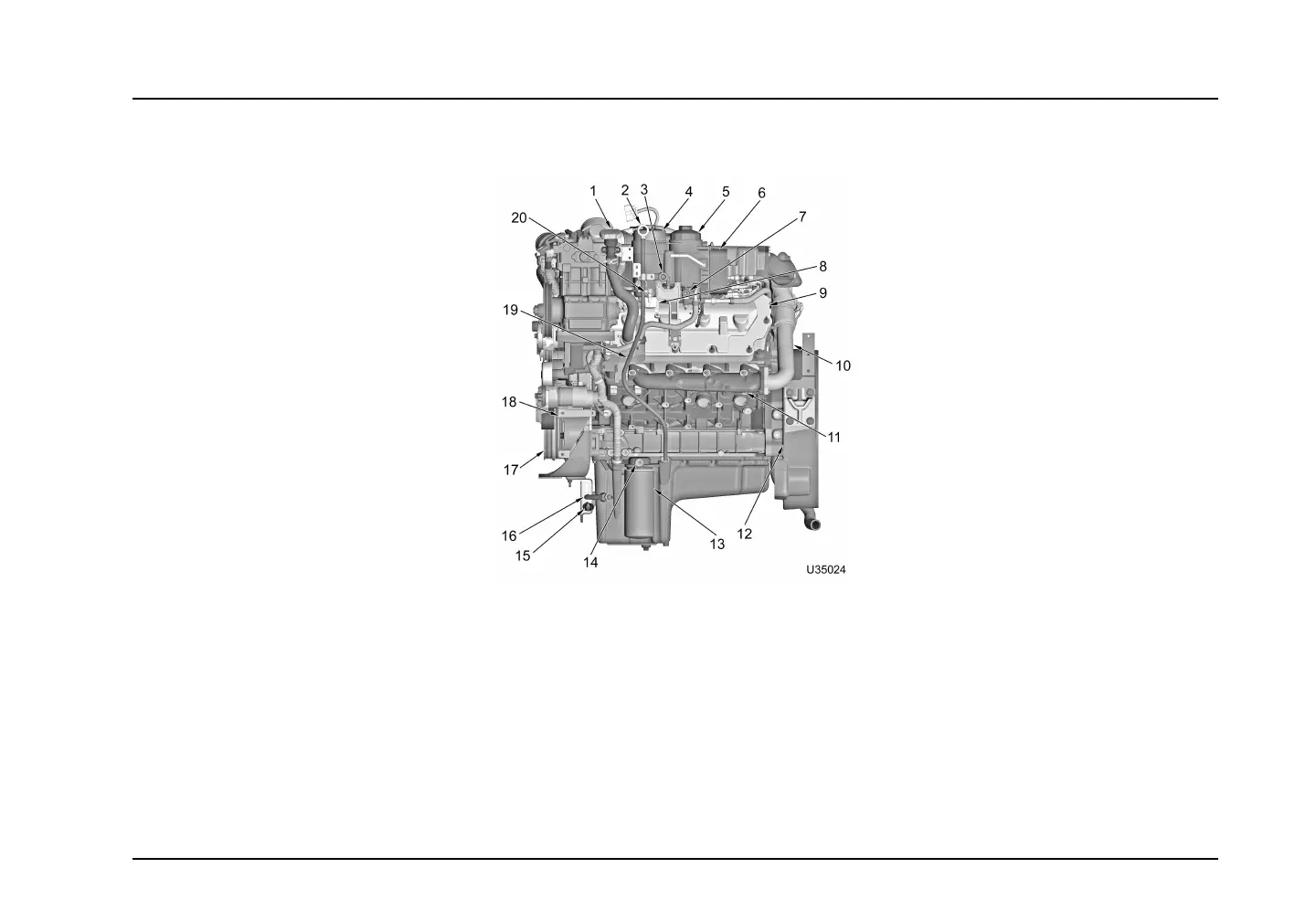

ComponentLocation–Left
Figure6Left
1.Oillltubecap
2.Oillevelgauge(dipstick)
3.Fuelsupplyport(fromtank)
4.Primaryfuellterhousing
5.Secondaryfuellterhousing
6.Fuelcooler
7.Fuelreturnport(totank)
8.Fuelpump
9.Leftvalvecover
10.Leftexhausttubeassembly
11.Leftexhaustmanifold
12.Startermotormountinglocation
13.Oillter
14.Diagnostictestport(oilpressureport)
15.Powersteeringreturntube
16.Powersteeringsupplytube
17.PowerT akeOff(PTO)aircompressor
frontpulley
18.AuxiliaryFreoncompressormounting
bracket
19.Oillevelgaugetube
20.Waterdrainvalve
Page29
