SECTION3–INSTRUMENTS,INDICATORS,ANDSWITCHES

OilTemperatureGauge

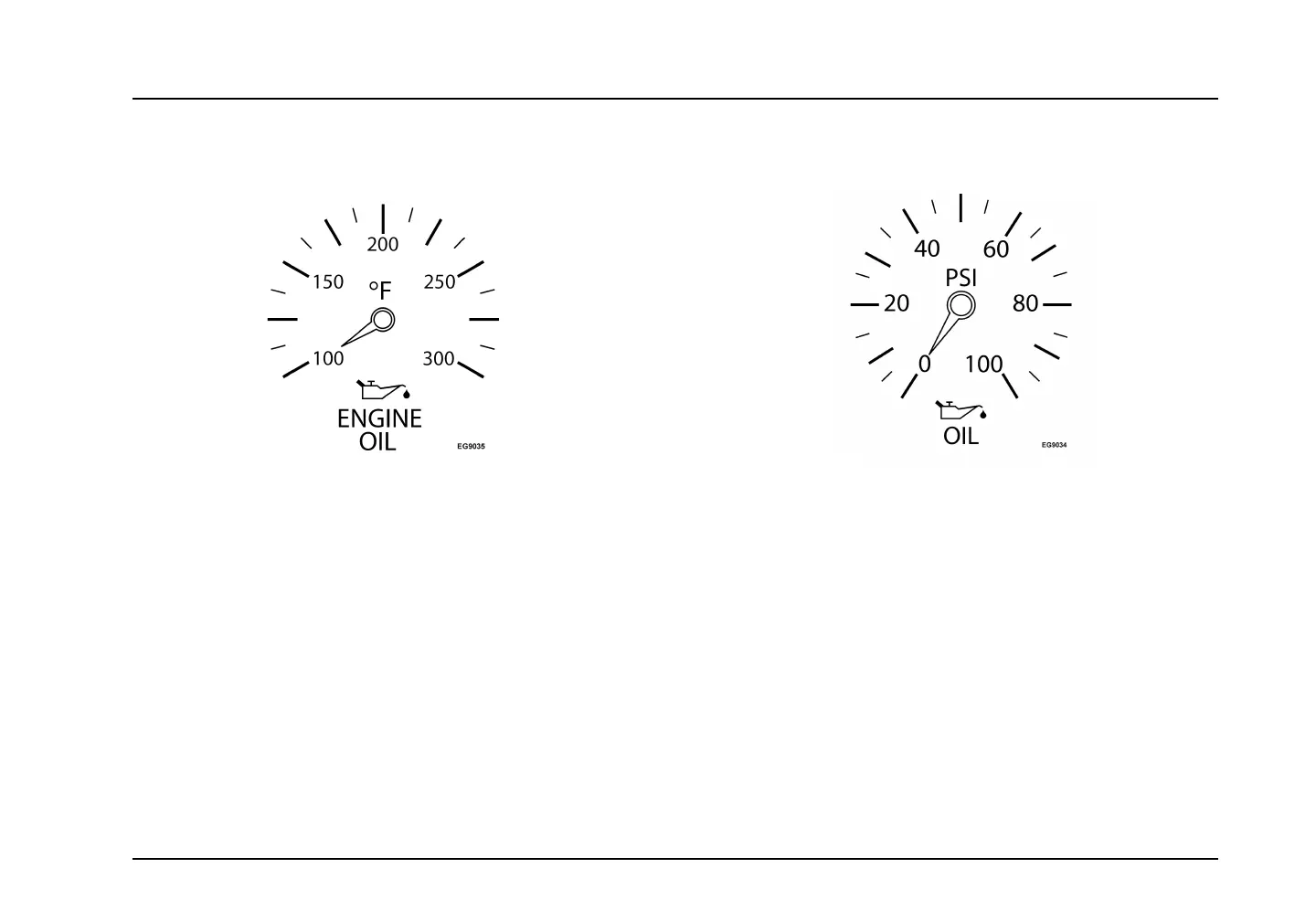

Figure21OilTemperatureGauge

Theengineoiltemperaturegaugeindicatestheoiltemperature

oftheengine.

OilPressureGauge

Figure22OilPressureGauge

Theengineoilpressuregaugeindicatesoperatingoilpressure.

Theengineoilpressureindicatorlampandalarmwillbe

activatedwhenoilpressurefallsbelowacceptablelevels.

Shutdowntheengineimmediatelyifthelampandalarmare

activated.Contactanauthorizedserviceproviderimmediately

tohavetheproblemcorrected.

Page45
