SECTION5MAINTENANCESCHEDULEANDSERVICEPROCEDURES
ServiceProcedures(cont.)
BELT,AIRINTAKEPIPINGANDCLAMPS(cont.)

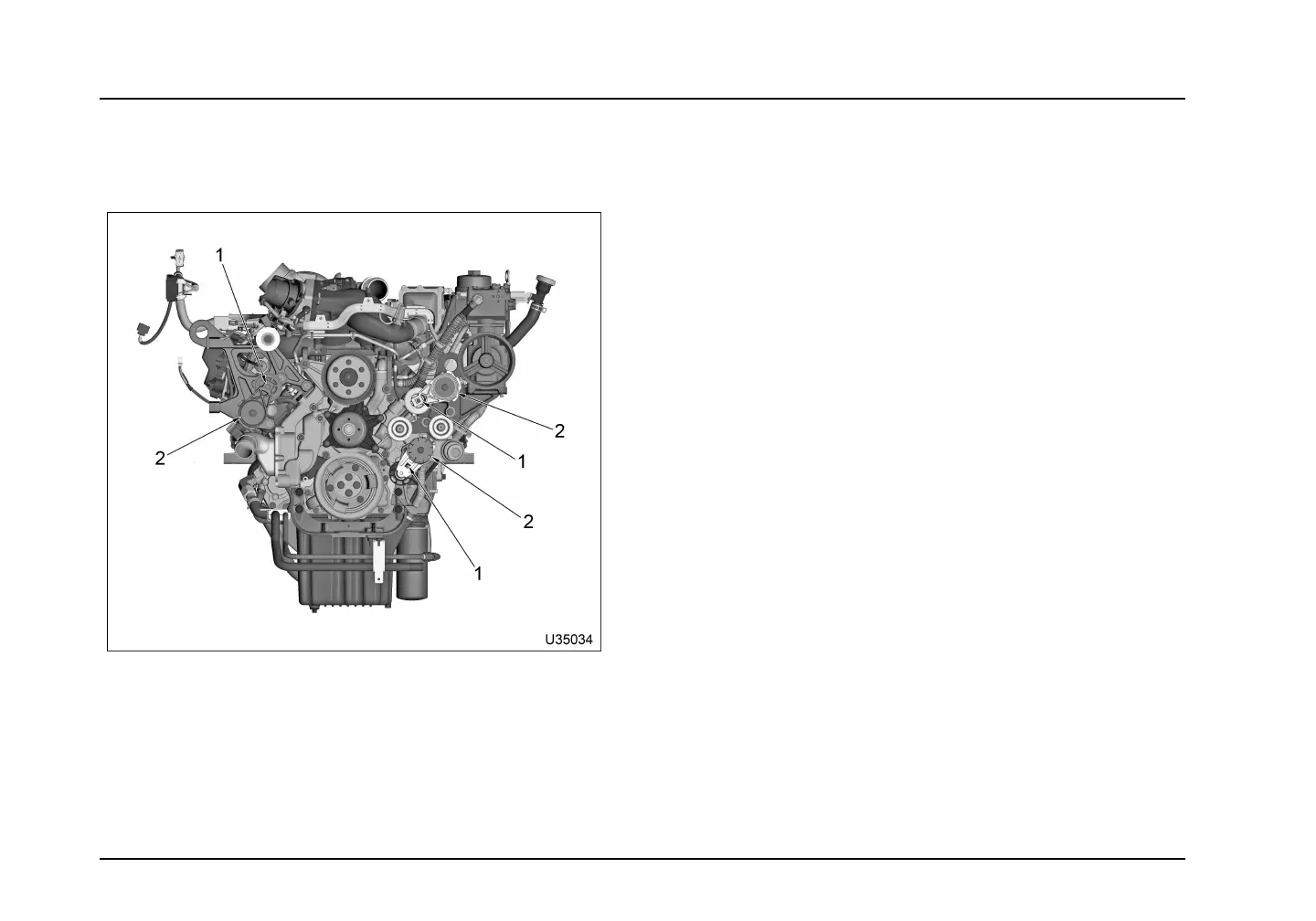

Figure34SquareHoleInAutoTensioner(Typical)
1.Squareholelocationinautotensioner
2.Autotensioner
RemovingtheBelt
1.Attacha1/2–inchdrivebreakerbartosquareholein
autotensioner.
2.Pullbreakerbarclockwiseandremovebeltfromauto
tensionerpulleyandotherpulleys.
3.Slowlyreleasebreakerbar;autotensionerautomatically
adjusts.
4.Removebreakerbar.
InstallingtheBelt
1.Attacha1/2–inchdrivebreakerbartosquareholein
autotensioner.
2.Pullbreakerbarclockwiseandinstallbeltoverauto
tensionerpulleyandotherpulleys.
3.Slowlyreleasebreakerbar;autotensionerautomatically
adjusts.
4.Removebreakerbar.
Page78
