Naxa NTD-2255 - Page 11

www.naxa.com Page 11
USB
HD MI
IN
VGA
IN
PC
AUDIO
IN
RF
IN OUT
EARPHONE
Y
IN
PrPb
POWER
INPU T
DC 12V

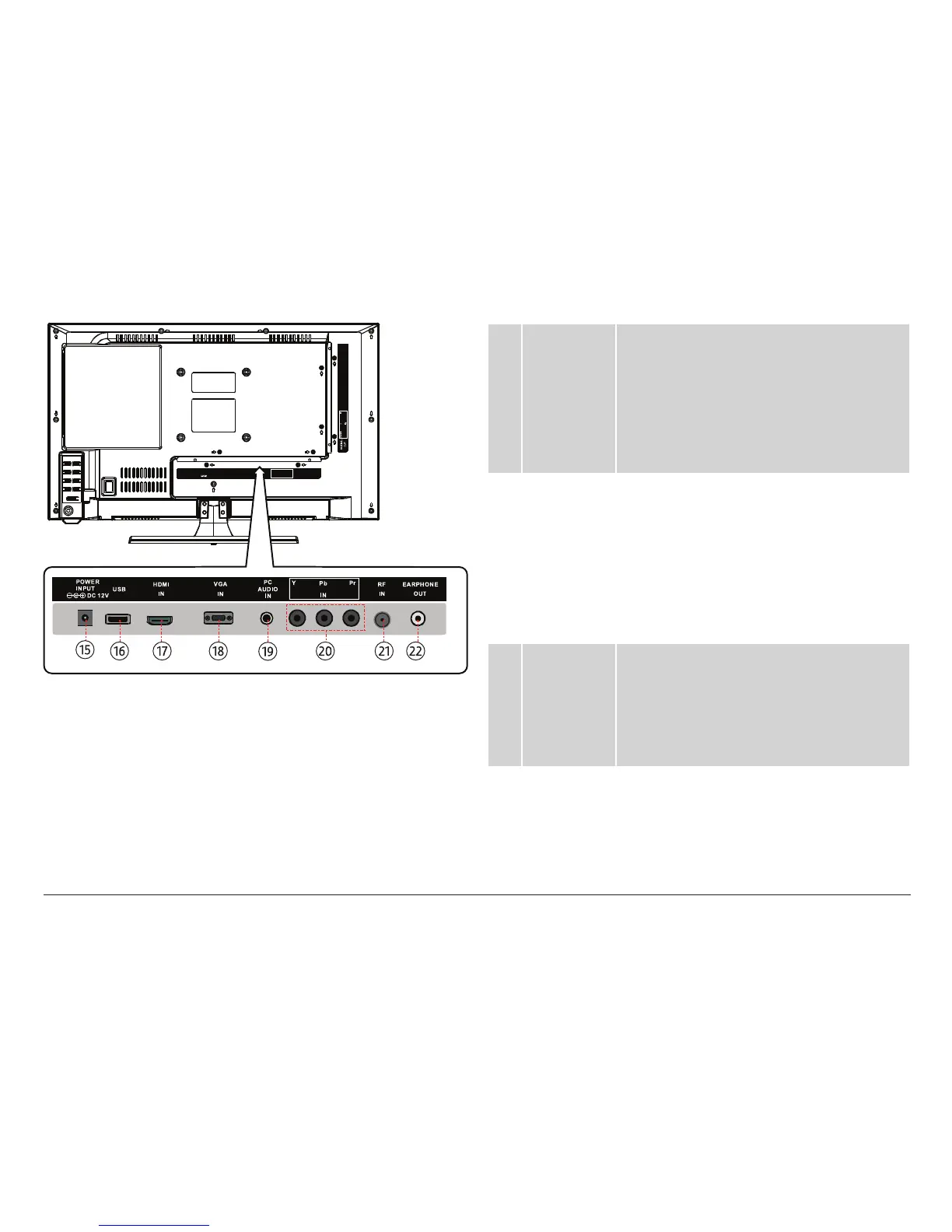

19 PC Audio In The 3.5 mm stereo input connector is active
when the TV is set to VGA mode. This connector
allows the TV to receive stereo audio signals
with the use of a 3.5 mm stereo patch cable.
⚠L
Use this connection in
conjunction with the VGA In
connection [18].
20 Y/Pb/Pr In The component video input connector is
active when the TV is set to YPbPr mode.
This connector allows the TV to receive
high-denition video signals with the use
of a component video cable.
⚠L
Use this connection in con-
junction with the shared L/R
In connection [26].
21 RF In The coaxial antenna input is active when
the TV is set to TV mode. This connector
allows the TV to receive RF audio/video
signals with the use of a coaxial cable from
devices with RF output (e.g., TV antennas,
cable boxes).
22 Earphone
out
The 3.5 mm earphone output is active
when the TV is set to TV mode. This con-
nector allows the TV to send stereo audio
signals to headphones or earphones with a
3.5mm plug.
