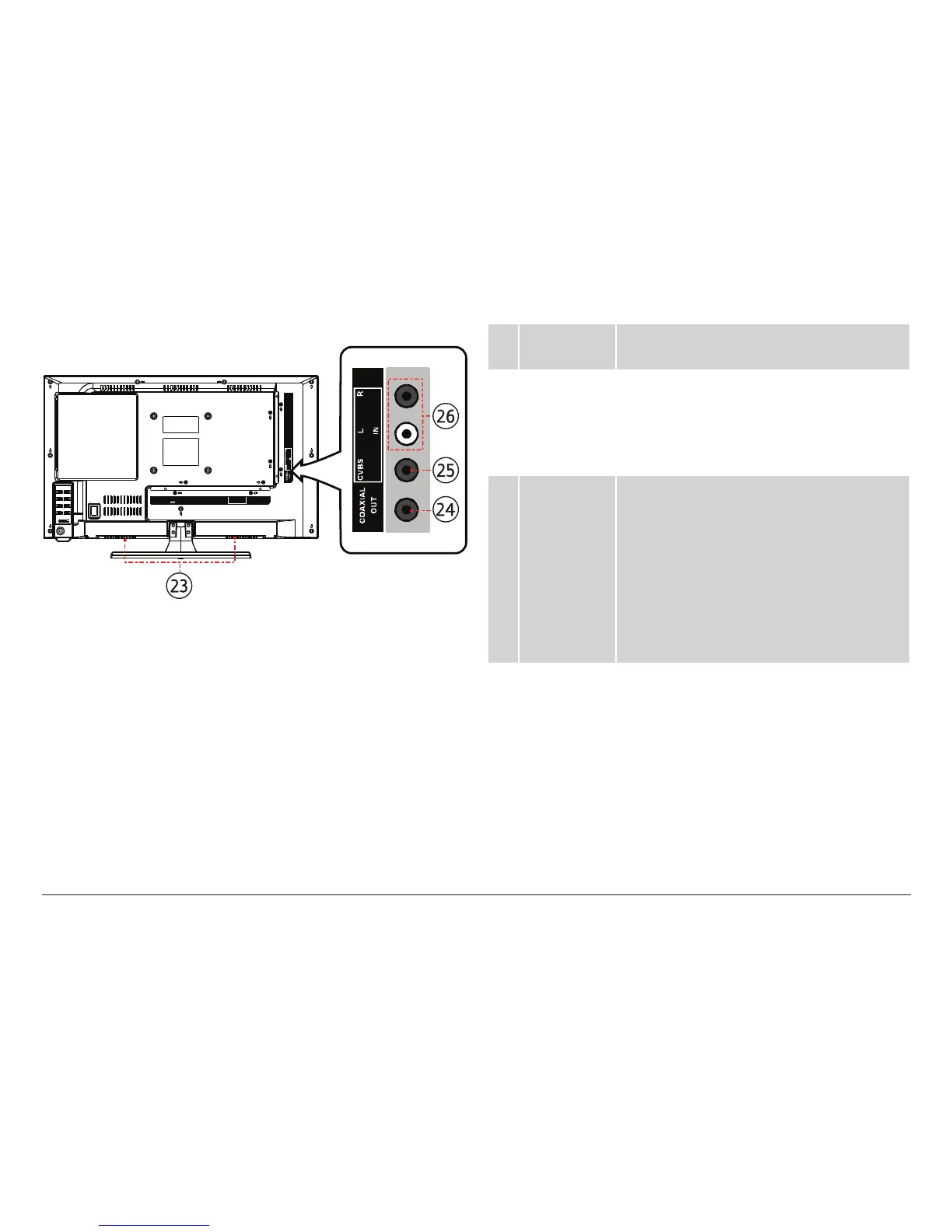

23 Speakers Full-range drivers deliver powerful stereo
sound.
24 Coaxial Out The coaxial output is active when the TV is
set to TV mode. This connector allows the
TV to send digital audio signals to devices
with digital audio input (e.g.. a digital audio
receiver or amplier).
25 CVBS In The composite video input connector is
active when the TV is set to AV mode. This
connector allows the TV to receive stan-
dard-denition video signals with the use
of the included AV cable (or a composite
video cable).
⚠L
Use this video connection in
conjunction with the shared
audio L/R In connection [26].
26 L/R in The L/R audio input connector is active
when the TV is set to YPbPr or AV mode.
This connector allows the TV to receive
stereo audio signals with the use of the
included AV cable (or an RCA stereo patch
cable).
⚠L
Use this shared audio con-
nection in conjunction with
the YPbPr or CVBS connec-
tions [20 or 25].
