3-4 BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Workholding Fixtures

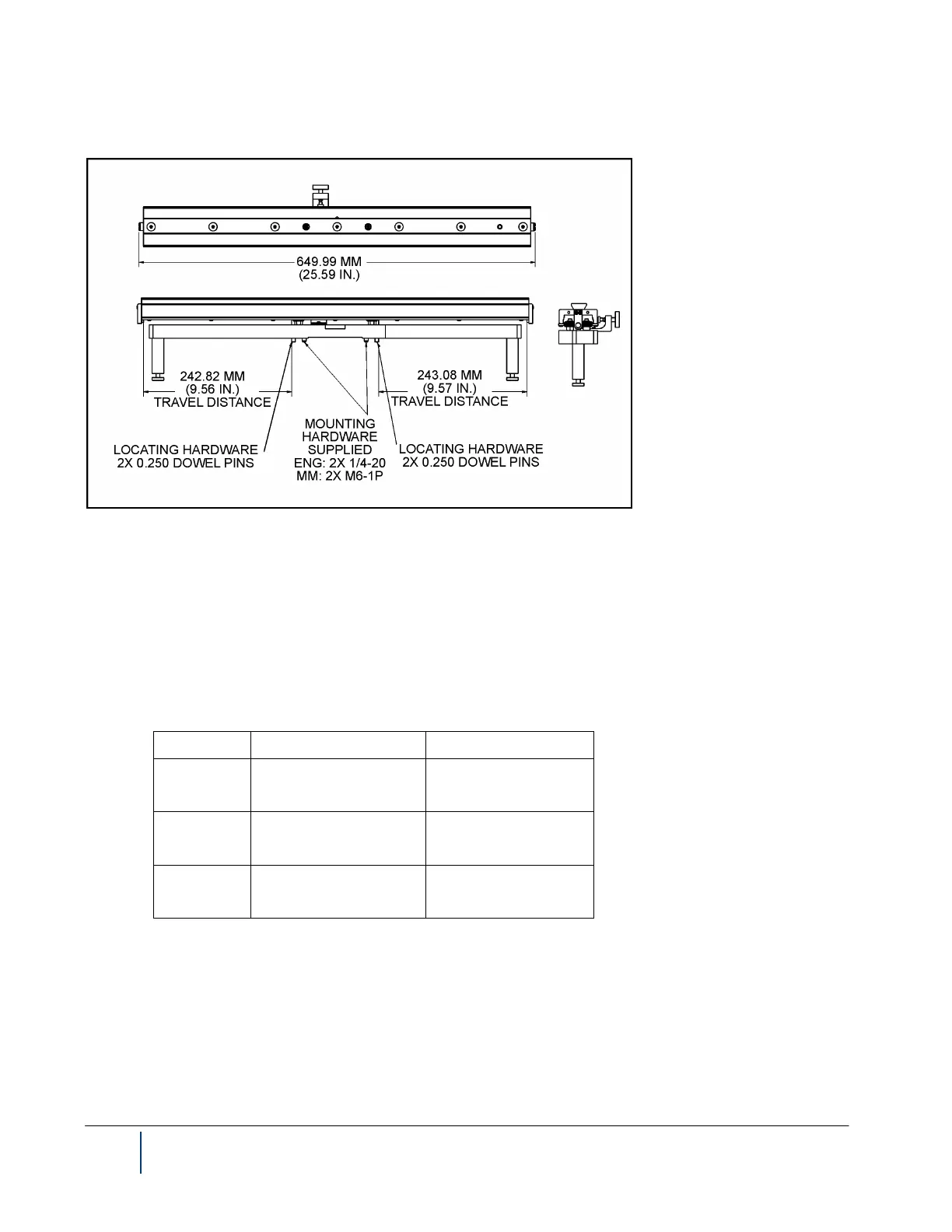

3.3.2.1 Drawing of the Universal Slide
Features of Adjustable Centers include:
 Pair of adjustable male centers that mate with the dovetail rail. One center is lever-operated and spring-
loaded for part loading.
 Hardened centers
 Centers diameter: 15.8 mm (0.625 in.)
Slide
A
B
18 in.
Slide
282.45 mm (11.12
in.)
323.6 mm (12.74
in.)
25 in.
Slide
460.25 mm (18.12
in.)
501.4 mm (19.74
in.)
32 in.
Slide
638.05 mm (25.12
in.)
679.2 mm (26.74
in.)
 Adjustable Centers, mounted in the Universal Slide, will support a maximum weight equivalent to a 2-inch
steel bar of length A (table above).
