BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Workholding Fixtures 3-5

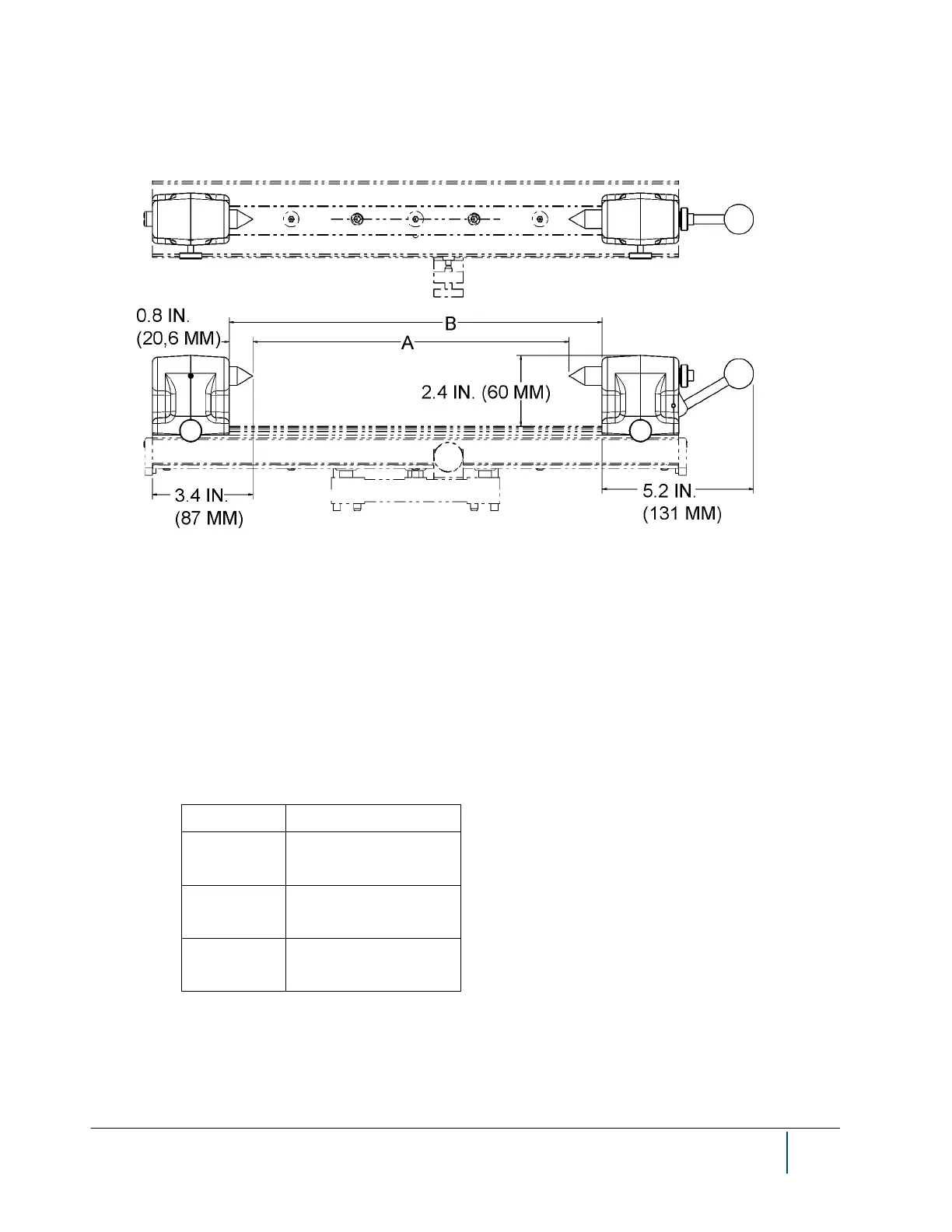

3.3.2.2 Drawing of the Adjustable Centers mounted on the Universal Slide
Features of Adjustable V-Blocks include:
 Pair of adjustable V-blocks that mate with the dovetail rail. V height is adjusted by locking knob. Millimeter
position scale.
 V-block part size range: 2.286-50.8 mm (0.090-2.0 in.)
 V’s are case-hardened with an included angle of 90°
 When mounted as shown, the maximum part length that will fit in the V-blocks without hanging over is as
follows:
Slide
A
18 in. Slide
361.95 mm (14.25
in.)
25 in. Slide
539.75 mm (21.25
in.)
32 in. Slide
717.55 mm (28.25
in.)
 Adjustable V-Blocks, mounted in the Universal Slide, will support a maximum weight equivalent to a 2-
inch steel bar of length A (table above).
