CABLE TERMINATION 6-15
Installation NWD-107460-02E

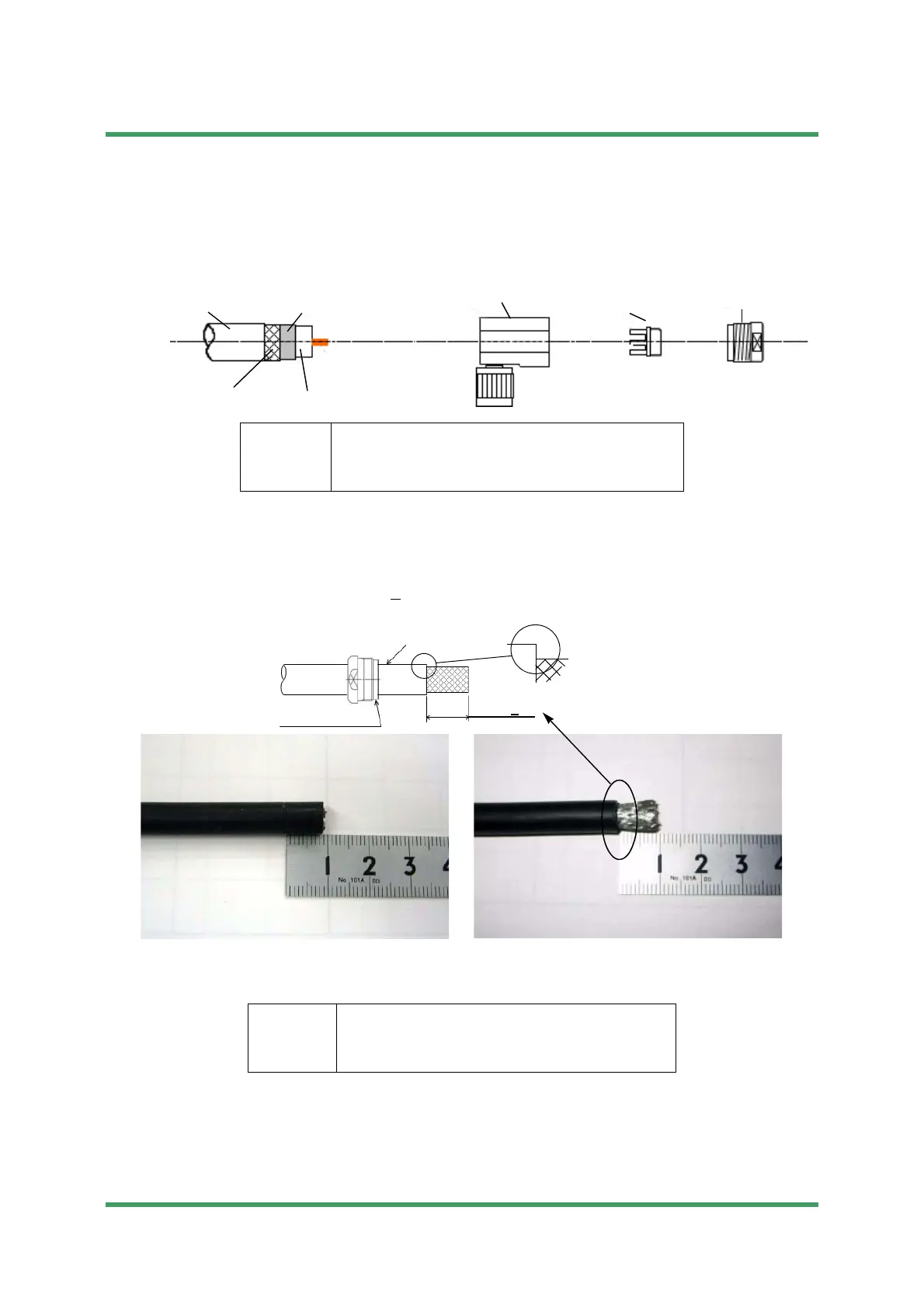

Procedure 6-3 TNC-P Connector used for IDU IF IN/OUT
(L-angle:TNC156(R0))
1 Insertion of parts, remove of jacket of cable.
(1) The clamp nut is inserted as shown.
(2) Remove 8 mm +
1 of jacket only.
Note Do not damage the braided wire.
Tools
• knife, cutter, nipper, tweezers, file, measure,
clearance gauge, etc.
• spanner, torque spanner 12 mm, 16 mm
Tools
•knife
• cutter
•measure, etc.
Outlines of parts
[Applicable cable: 5D-FB-E]
Cable jacket
Aluminum tape
Braided wire
Insulator
Center conductor
Connector body
Clamp Clamp nut
Cable
Clamp nut
(8 mm +1)
*Cut the jacket edge squarely.
Submission Prohibited
NEC Internal Use Only
To Next Page
