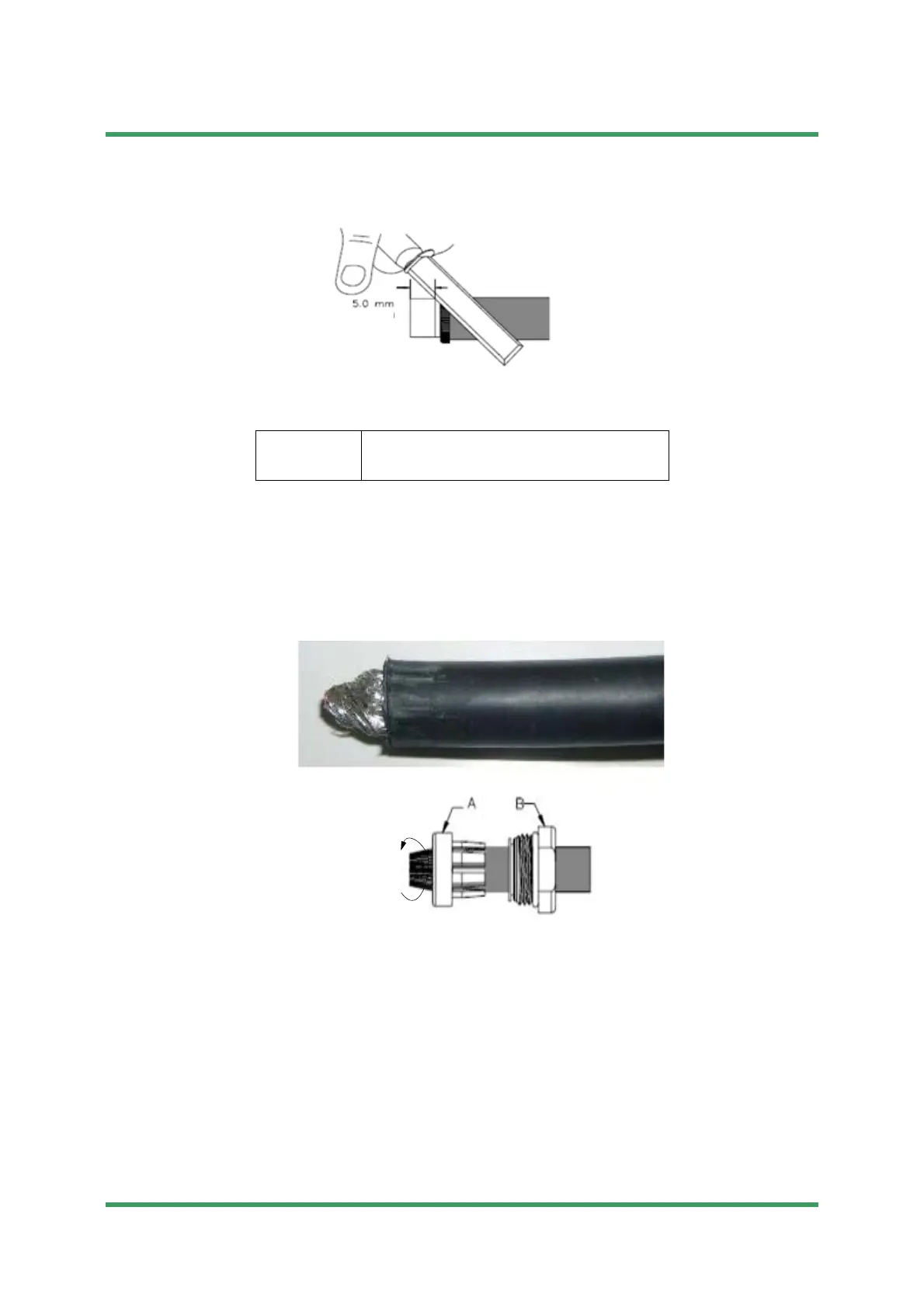

CABLE TERMINATION 6-21

Installation NWD-107460-02E

(3) Remove all insulator/tape residue from the center conductor.

Note: Do not damage the center conductor.

3 Insertion of parts

Make the braided wire small and sharp at the front;

Install parts B and parts A revolving as onto cable without damaging the braided

wire.

4 The braided wires processing-2

(1) The braided wire should be straight and equally spaced by tweezers.

Tools

• cutter

• measure etc.,

Submission Prohibited

NEC Internal Use Only
