6-22 CABLE TERMINATION

NWD-107460-02E Installation

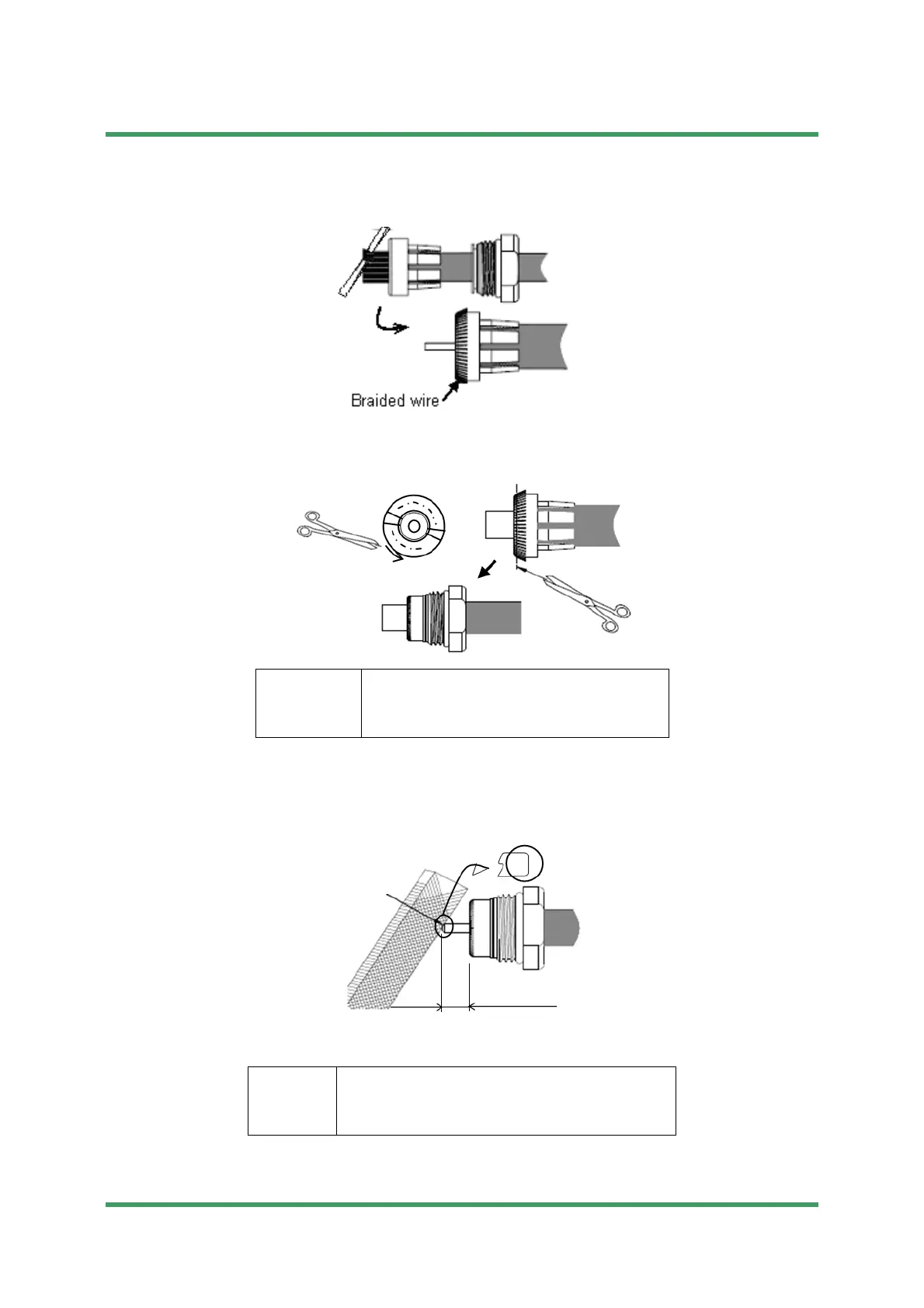

(2) Fold the braided wire around parts A.

(3) The braided wire is cut according to outer of parts A.

5 Center conductor processing

Chamfer the center conductor at a 45º angle.

Note: Do not damage the center conductor.

Tools

• scissors

•nipper

• tweezers

Tools

• cutter

•measure

• file, etc.

45º

5.0 mm

Submission Prohibited

NEC Internal Use Only
