6-36 CABLE TERMINATION
NWD-107460-02E Installation
Notes
1. Please note the position of the cord tube.
2. Do not damage the braided wire.
3. Do not damage the center conductor (burr etc.).

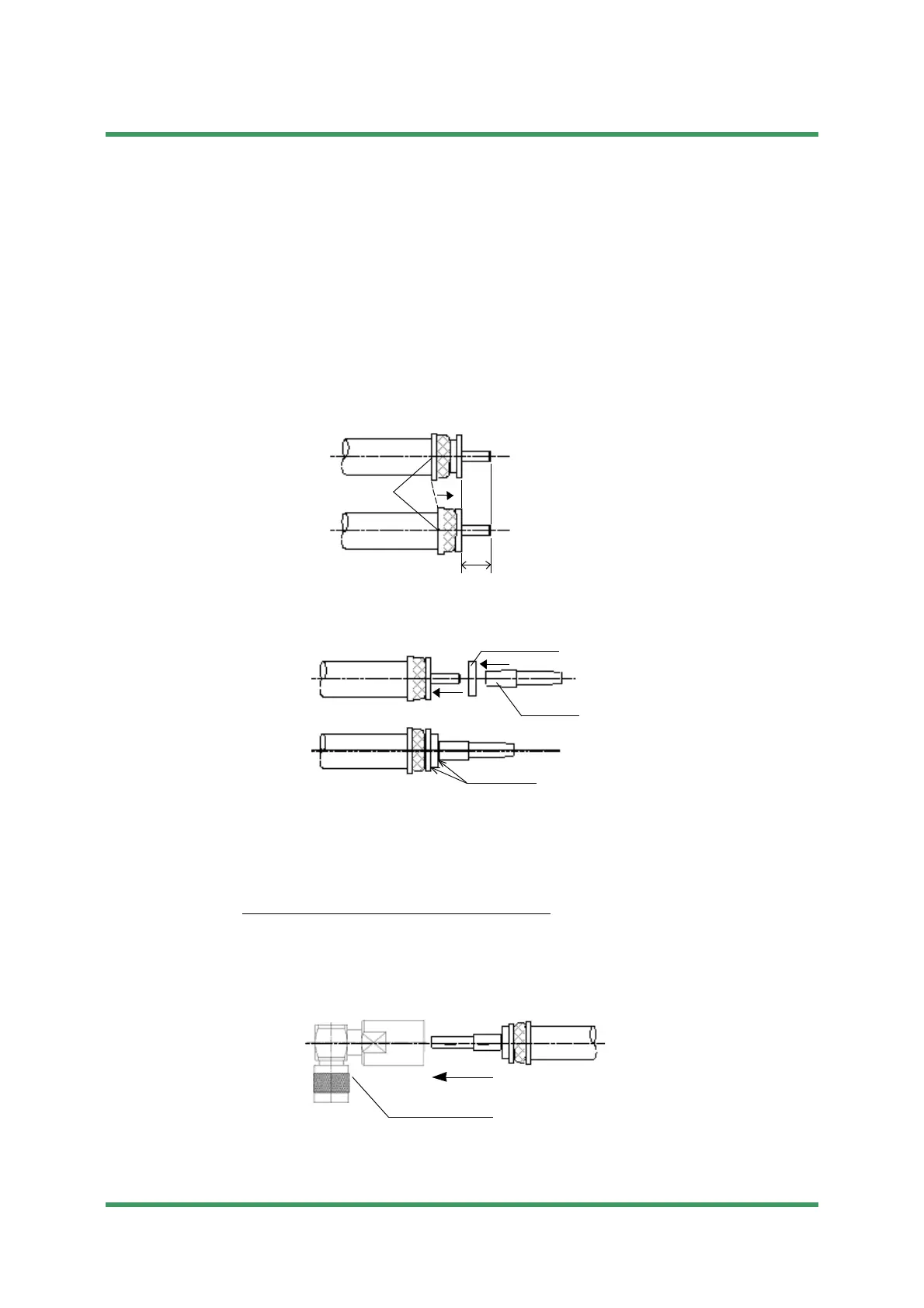

4 Insertion of contact.
(1) The clamp is moved to the cord tube side.
(2) Cut off the braided wire which comes out of the flange.
(3) A spacer is inserted in a central conductor and contact is inserted.
Note There must be no gap between the contact, the spacer and the cord tube.
Refer to [common procedure] cable type A & type B for the next procedure.
[Common procedure] cable type A & type B
5 Connector assembly.
(1) Insert it until the cable assembly bumps inner connector.
Clamp
6-7 mm
Spacer
Contact
Gap "0"
Connector body
