CABLE TERMINATION 6-37
Installation NWD-107460-02E

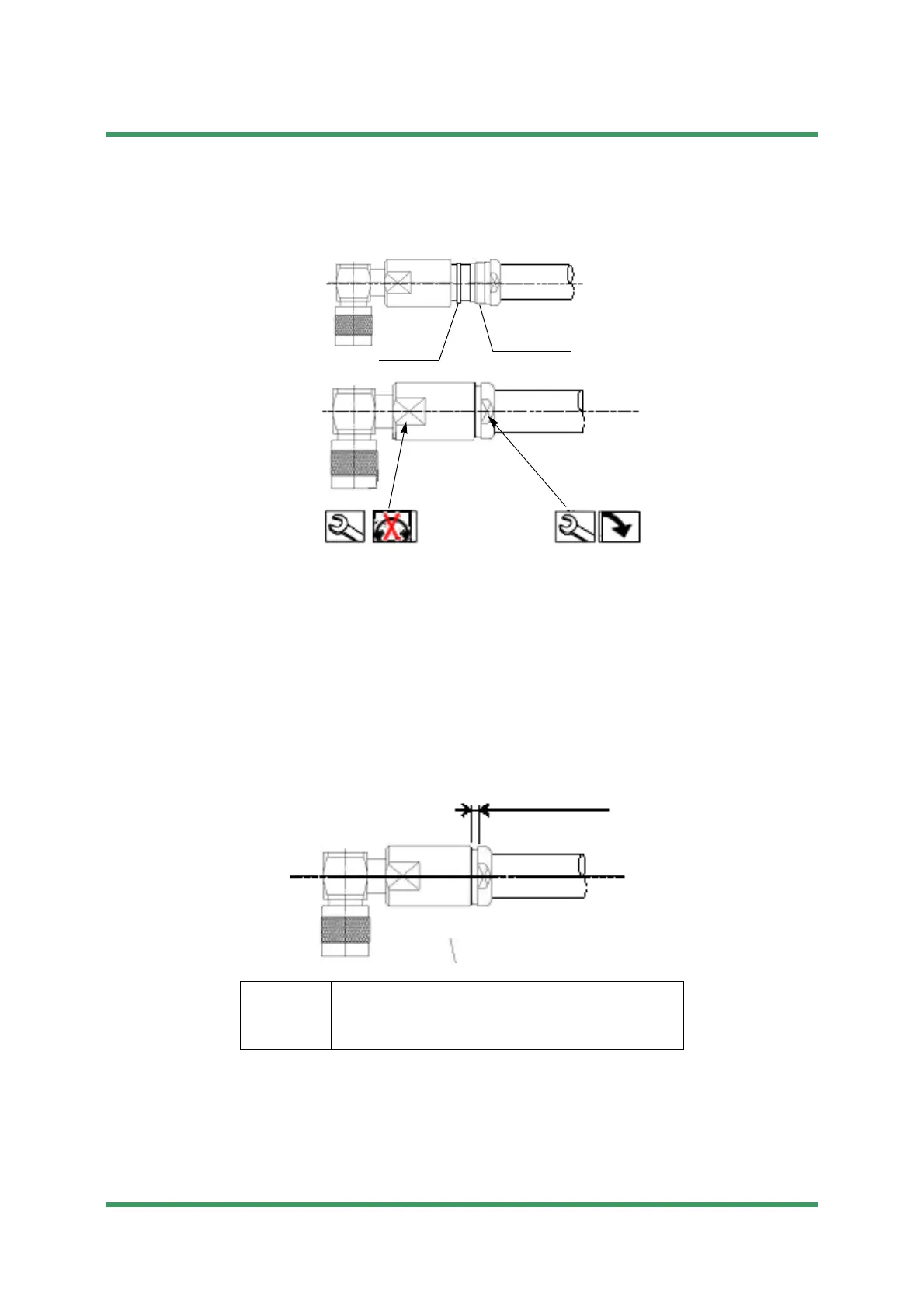

(2) The washer and clamp nut are moved to the connector side, and it tightens. The
tightening torque of the clamp nut is 8 to13 N·m.
Notes
1. When inserting, do not put the chip which is braided wire inside the
central conductor and the connector body.
2. Do not turn connector body, turn clamp nut attachment.
(3) The gap of the connector body and clamp nut is confirmed.
* Gap: 2.1 ~ 2.45 mm (reference)
Gap is refenece, tightening must not become insufficient.
Note Do not remove the connector body tightened up once.
When removing, it is reworked from procedure 1 or a cable is
exchanged.
Tools
• spanner (16 mm)
• torque spanner (16 mm)
• clearance gauge, measure
Washer
Clamp nut
16 mm
8-13 N·m
16 mm
Submission Prohibited
NEC Internal Use Only
