CABLE TERMINATION 6-41
Installation NWD-107460-02E
Procedure 6-9 N-P Connector used for ODU IF IN/OUT
(Straight: N416(R0))
1 Insertion of parts
The clamp nut, the washer and the gasket are inserted in the cable.
2 Remove of jacket of cable, insertion of parts,
(1) Remove 11 mm of jacket only.
(2) The clamp1 is inserted as shown.
Note Do not damage the braided wire.
Tools
• knife, cutter, nipper, tweezers, file, measure,
clearance gauge, etc.
• spanner, torque spanner; 16 mm
Tools
•knife
• cutter
• measure, etc.

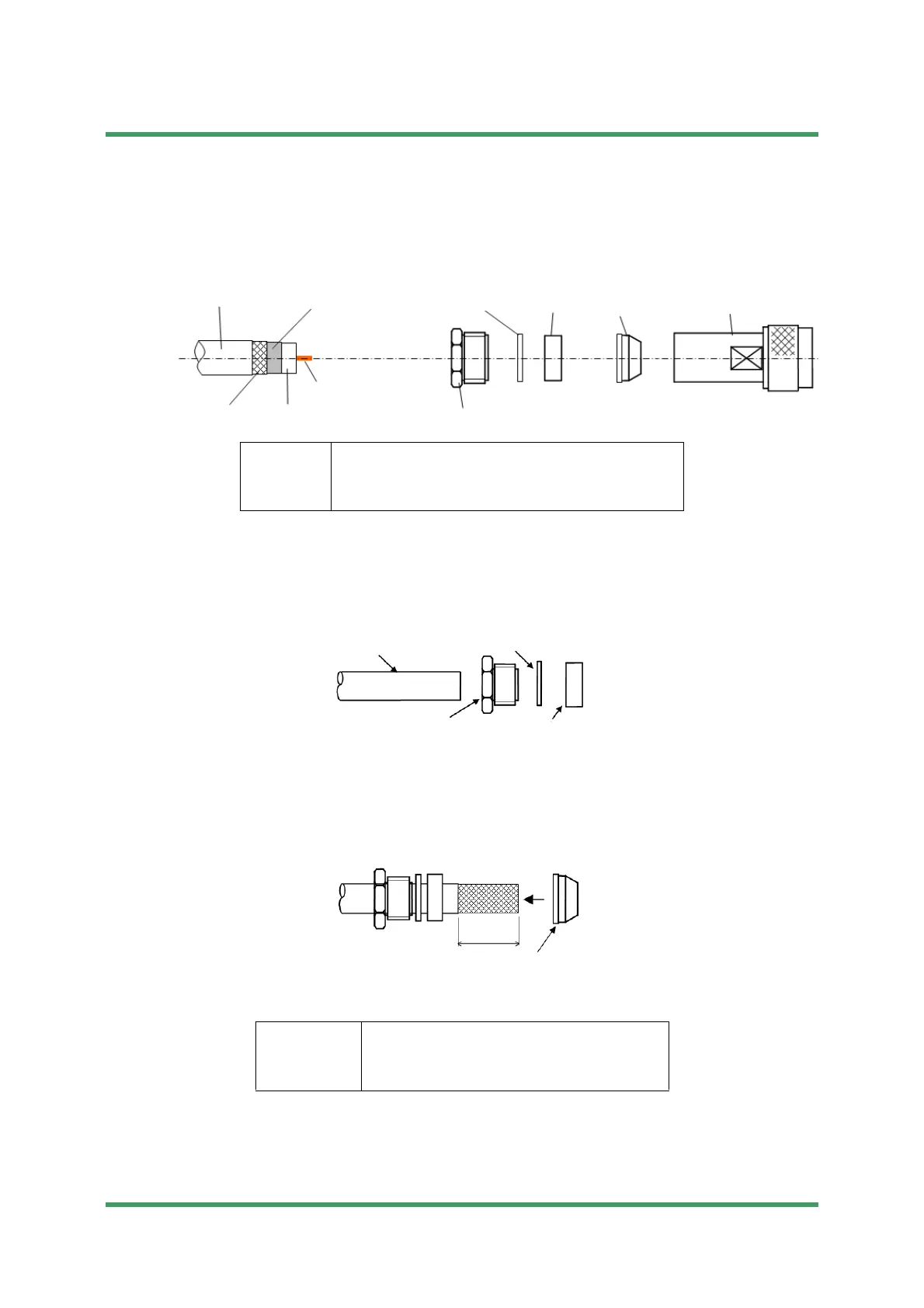

Outlines of parts
[
Applicable cable: 8D-FB-E]
Cable jacket
Aluminum tape
Braided wire
Insulator
Center conductor
Washer
Clamp nut
Gasket
Clamp1
Connector body
Cable Washer
Clamp nut
Gasket
Submission Prohibited
NEC Internal Use Only
To Next Page
