6-42 CABLE TERMINATION
NWD-107460-02E Installation

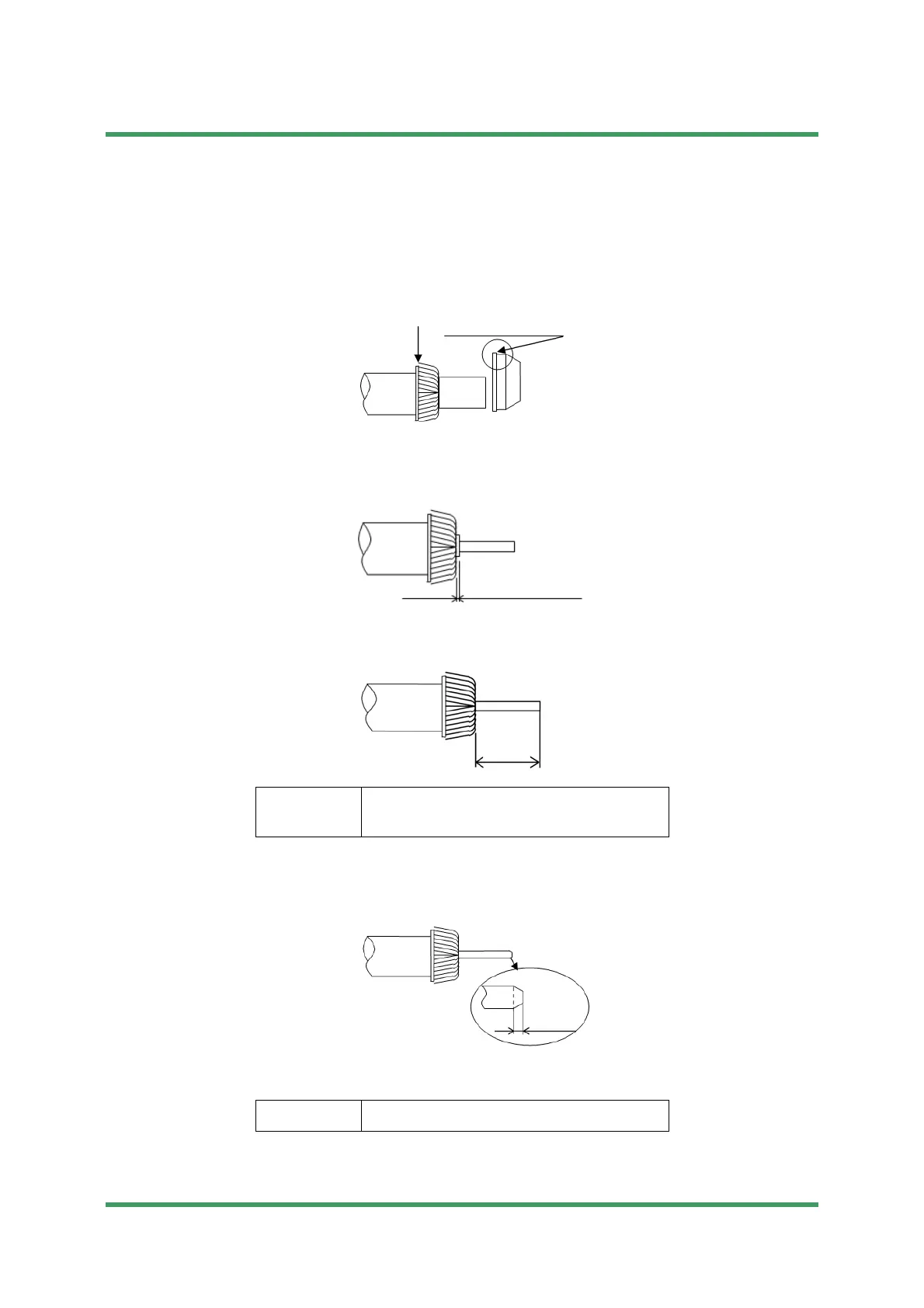

3 Center conductor processing
(1) Braided wire is disentangled.
Braided wires which became straight wires are turned back to clamp1 side.
The braided wires are cut according to step of clamp1.
(2) Remove of insulator and aluminum tape as shown without damaging the center
conductor.
(3) Remove of the center conductor as shown.
(4) Chamfer the center conductor.
Note Do not damage the center conductor.(burr etc.,)
Tools
• cutter
•nipper
Tool • file
Step of clamp1
1 to 2 mm
6 mm ± 1
1 mm
