5-32 ODU MOUNTING
NWD-107460-02E Installation

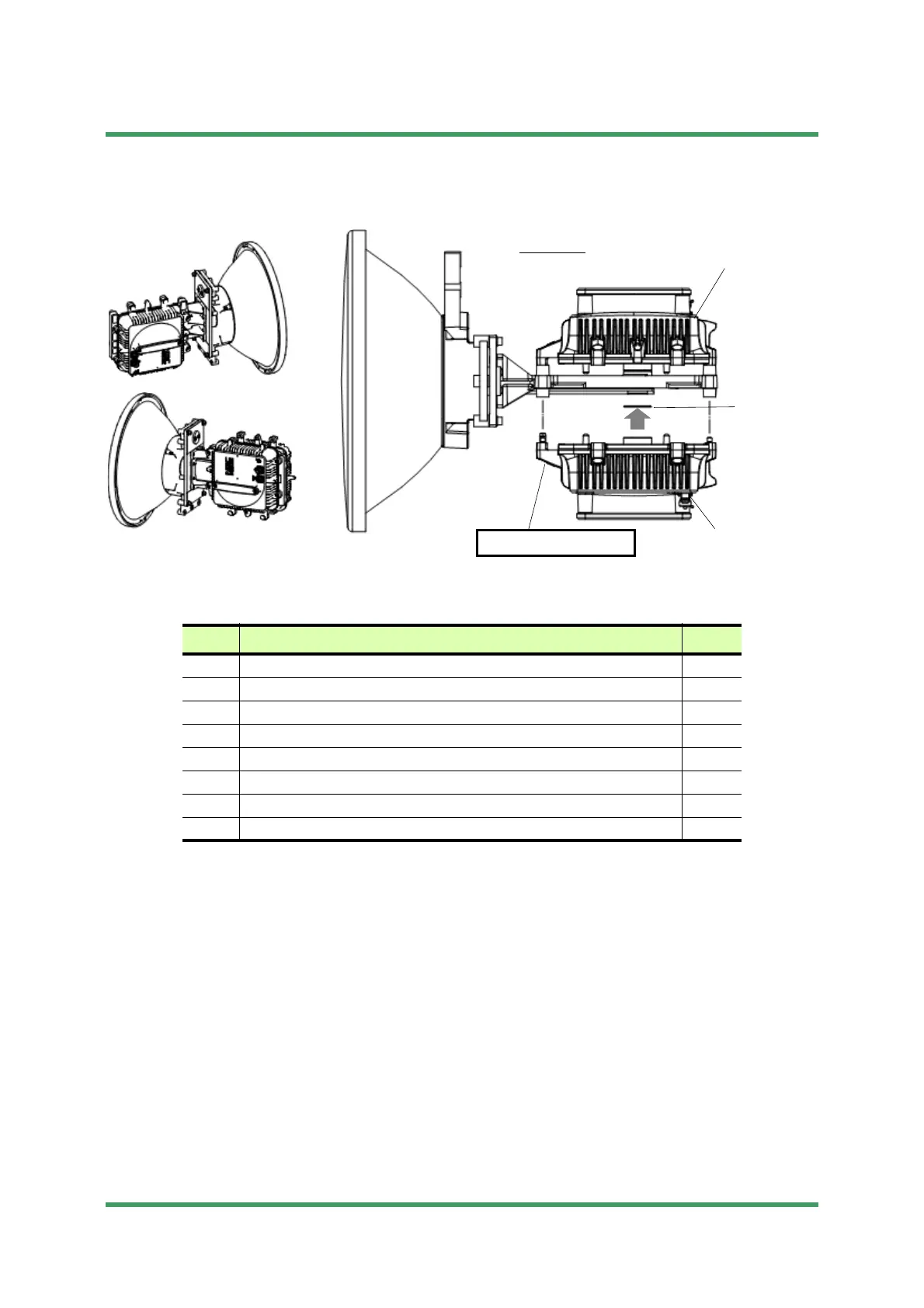

5 Attachment of Standby ODU
SS: Stainless Steel
Table 5-4 Hybrid/Coupler Parts List
No. Parts Name Q’ty
1 Hybrid/Coupler 1
2 Support 1
3 O-Ring 2
4 M5 x 12 Hexagon Socket Head Cap Screw (SS) 8
5 M5 Spring Washer (SS) 8
6 M6 x 20 Hexagon Socket Head Cap Screw (SS) 4
7 M6 Flat Washer (SS) 4
8 M6 Spring Washer (SS) 4
"V" direction of ODU
NEC ODU
(Main ODU)
O-Ring
(Packing)
NEC ODU
(Standby ODU)
Top View
