NEC iPasolink 200 - Page 55

ODU MOUNTING 5-33
Installation NWD-107460-02E
[E] 18/23 GHz Hybrid
This Hybrid is designed to be attached to 0.2 to 1.8 m antennas with interface for
direct mounting of ODU.

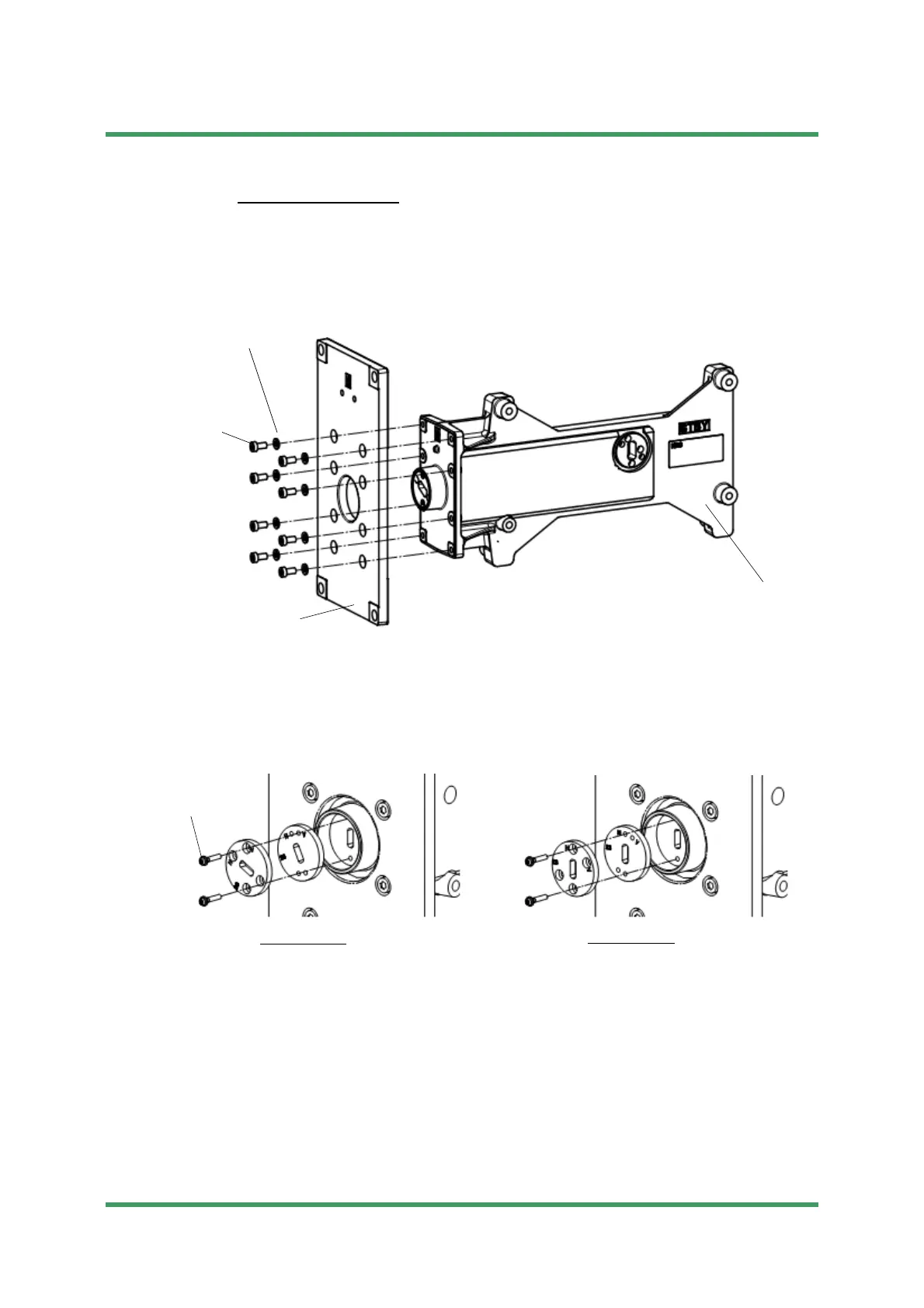

1 Hybrid assembly
Note Tightening torque is 3.0 N·m ±10%
2 Polarization Coarse alignment
Support
Spring Washer M5 (8ea.)
Hexagon Socket
Head Cap Screw
M5 x 12 (8ea.)
Hybrid
V Polarization
H Polarization
Cross-Recessed
Head Machine Screw
M2.6 (2ea.)
Submission Prohibited
NEC Internal Use Only
