ODU MOUNTING 5-43
Installation NWD-107460-02E

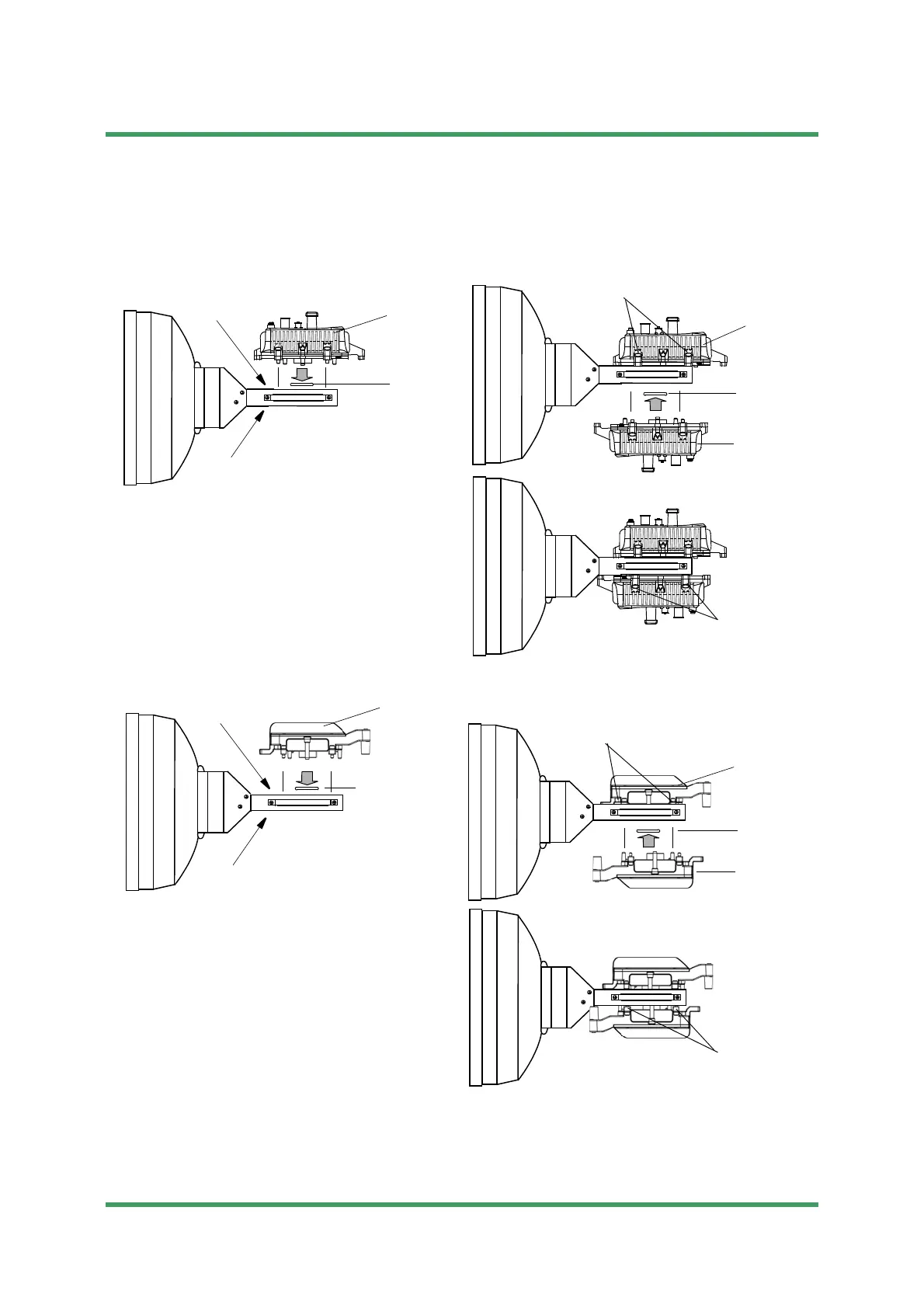

9 Fix the two ODUs with hex screws (four locations) using the allen key wrench.
Note Be careful not to damage the O-rings.
H Polarization side
V Polarization side
Note Tightening torque is 4.0 N·m ±10%.
ODU (10/11 GHz)
O-ring
ODU
Note Tightening torque is 4.0 N·m ±10%.
ODU (13-38 GHz)
Hex screw
Hex screw
Hex screw
ODU
ODU
ODU
Hex screw
O-ring
ODU
H Polarization side
V Polarization side
O-ring
ODU
O-ring
