NEC iPasolink 200 User Manual

ODU MOUNTING 5-63
Installation NWD-107460-02E

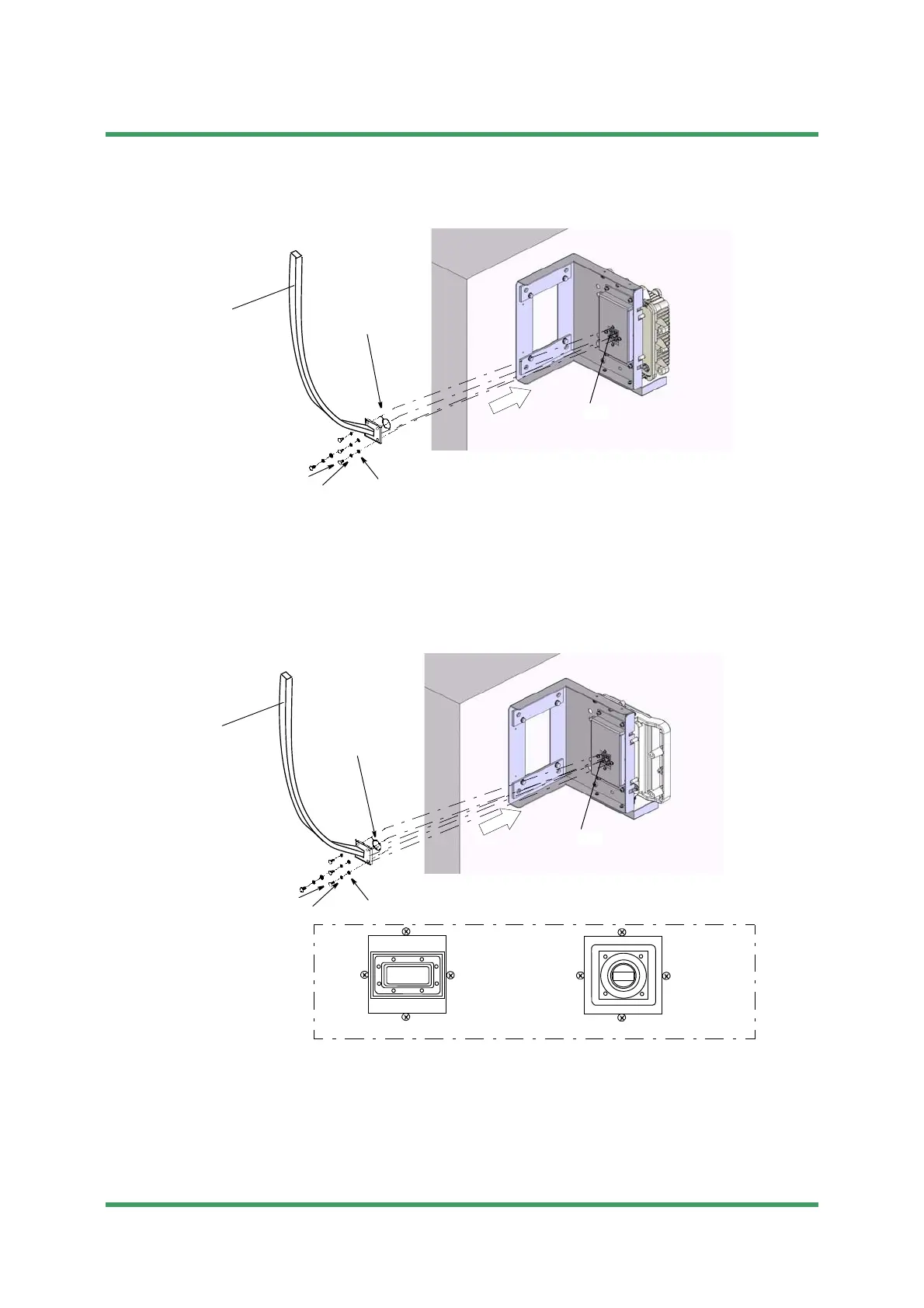

10 Connect the wave guide to the transducer for the ODU.
Notes
1. Tightening torque is 1.4 N·m ±10% (up to 15 GHz).
Tightening torque is 0.6 N·m ±10% (18 GHz or higher).
2. Be careful not to damage the O-ring.
Refer to 5.2.2 ODU Mounting for Waveguide Connection
Washer
O-ring
Bolt (M4)
Spring washer
ODU 10/11 GHz)
Waveguide
A
Washer
O-ring
Bolt(M4)
Spring washer
ODU 13-38 GHz)
Waveguide
For 13-38 GHz
Details of A
For 10/11 GHz
A
Submission Prohibited
NEC Internal Use Only
