5-62 ODU MOUNTING

NWD-107460-02E Installation

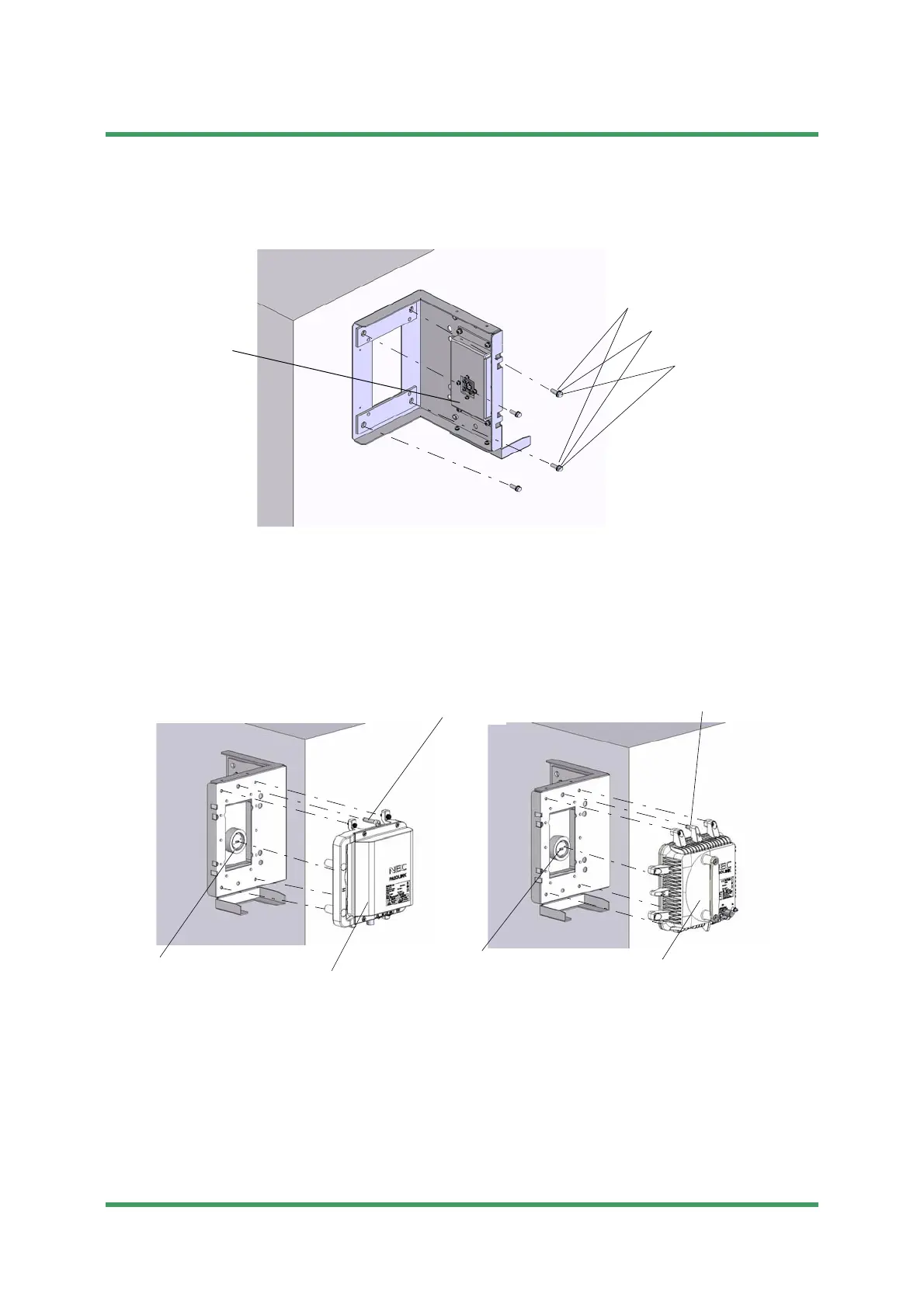

8 Fix the ODU wall mounting bracket to the wall with the six bolts (M6) of the

anchor volt,

Note The BOLT, FLAT WASHER and SPRING WASHER are of the Anchor

bolt.

9 Mount the ODU onto the bracket and fix the ODU using the four bolts (M6) on

the ODU,

Note The tightening torque is 4.0 N·m ±10%.

Flat washer*

Spring washer*

Bolt*

Flange adaptor

Guide pin

(V)

Transducer

Guide pin

(V)

ODU (13-38 GHz)

ODU (10/11 GHz)
