6. Appendix

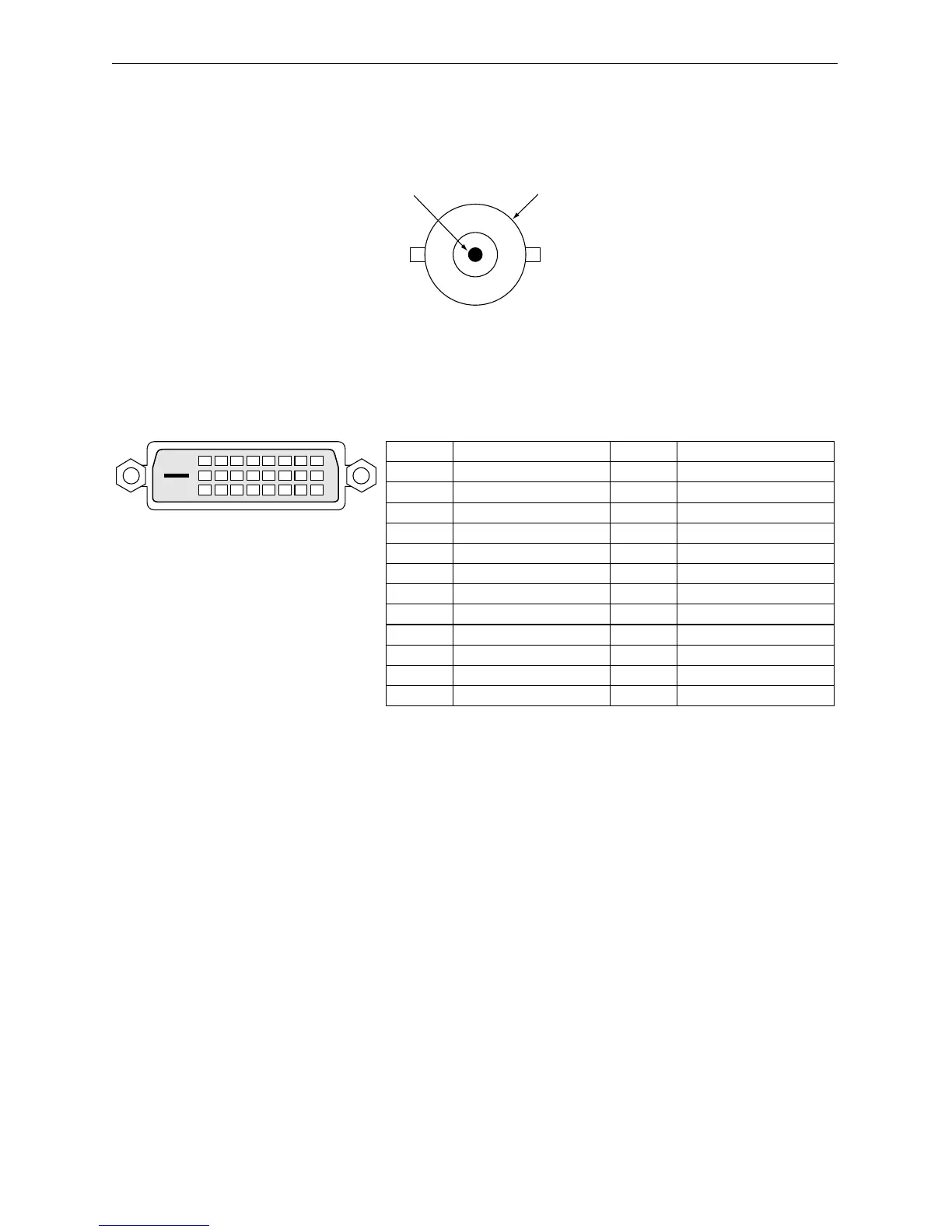

6-7-6. SDI-A, SDI-B (HD-SDI input connector) (BNC)
This is a signal input connector (SMPTE 292/HDSDI) for CINEMA.
The SMPTE 292/HD-SDI transfers HDTV signals with 1.5 GHz digital serial signals, so use a 75 Ω coaxial cable having a
thickness and characteristics higher than 5C-FB, and use a BNC for the connector.
Signal GND
6-7-7. DVI-A, DVI-B (DVI digital Input connector) (DVI-D 24 pin)
This is a single link DVI input connector that is compliant with hot plug detect (HPD). Use a single link cable. Noise may be
generated in the video if you use a dual link cable.
EDID is available even when the projector is switched off.
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
Signal Name
TMDS Data 2-
TMDS Data 2+
TMDS Data 2 Shield
Unused
Unused
DDC Clock
DDC Data
Unused
TMDS Data 1-
TMDS Data 1+
TMDS Data 1 Shield
Unused
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Signal Name
unused
+5V Power
Ground
Hot Plug Detect*
TMDS Data 0-
TMDS Data 0+
TMDS Data 0 Shield
unused
unused
TMDS Clock Shield
TMDS Clock+
TMDS Clock-
12345678
1718192021222324
910111213141516
Pin view of female connector
