3-20 Adding Options
2. Open the left-rear cover of the system.
3. Attach the 15-pin cable connector to the monitor port
on the system. (The monitor port is the second
from the left.) Secure the cable connection with the
screws provided.

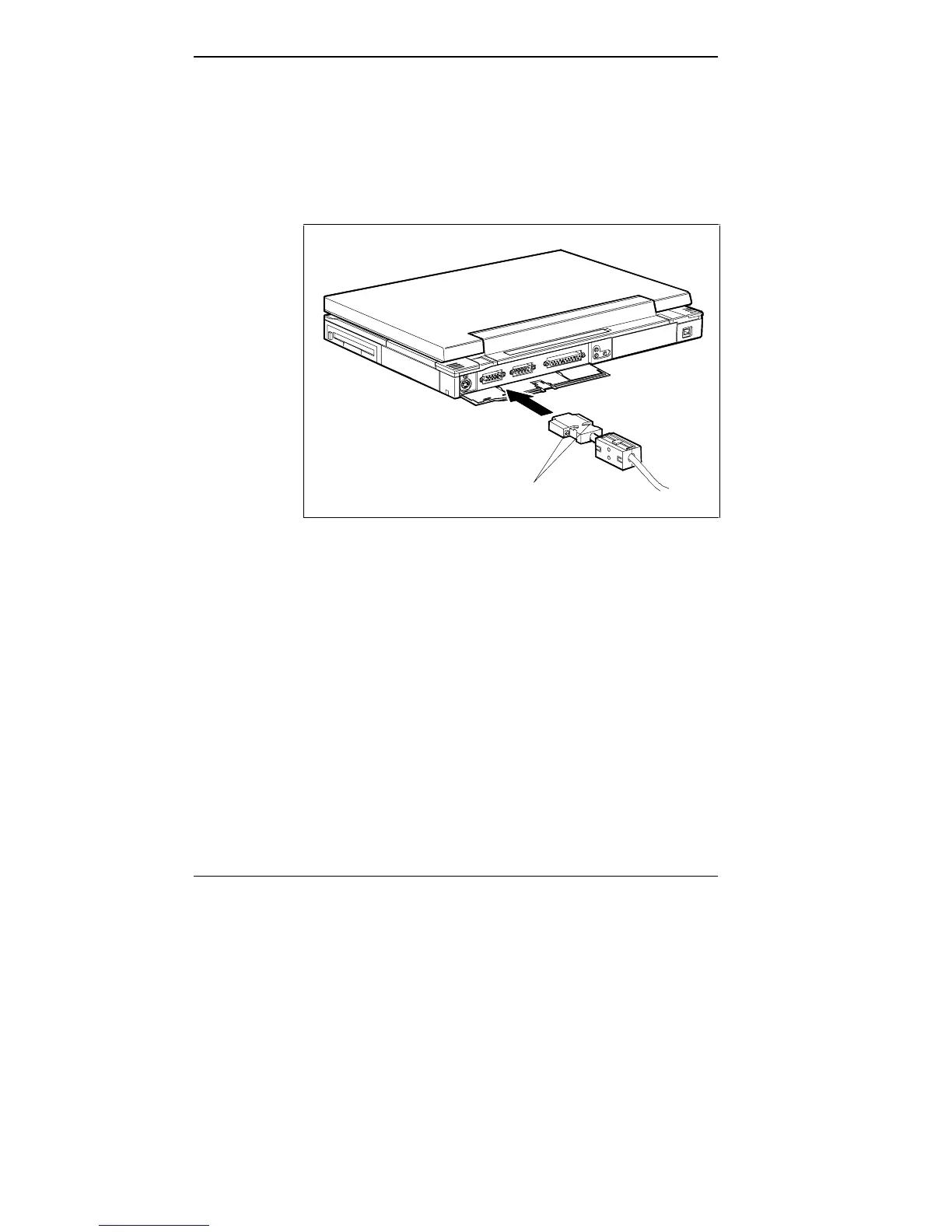

Connecting a monitor
4. Connect the monitor power cable and plug it into a
properly grounded wall outlet.
5. Follow any setup instructions in the monitor manual.
6. Turn on power to the monitor.
7. Press the Suspend button to resume Active mode or
power on the Versa P.
See the section on Function Keys in Chapter 1 for informa-
tion about using both the LCD and CRT monitor.
Screws
