System Map: Left View

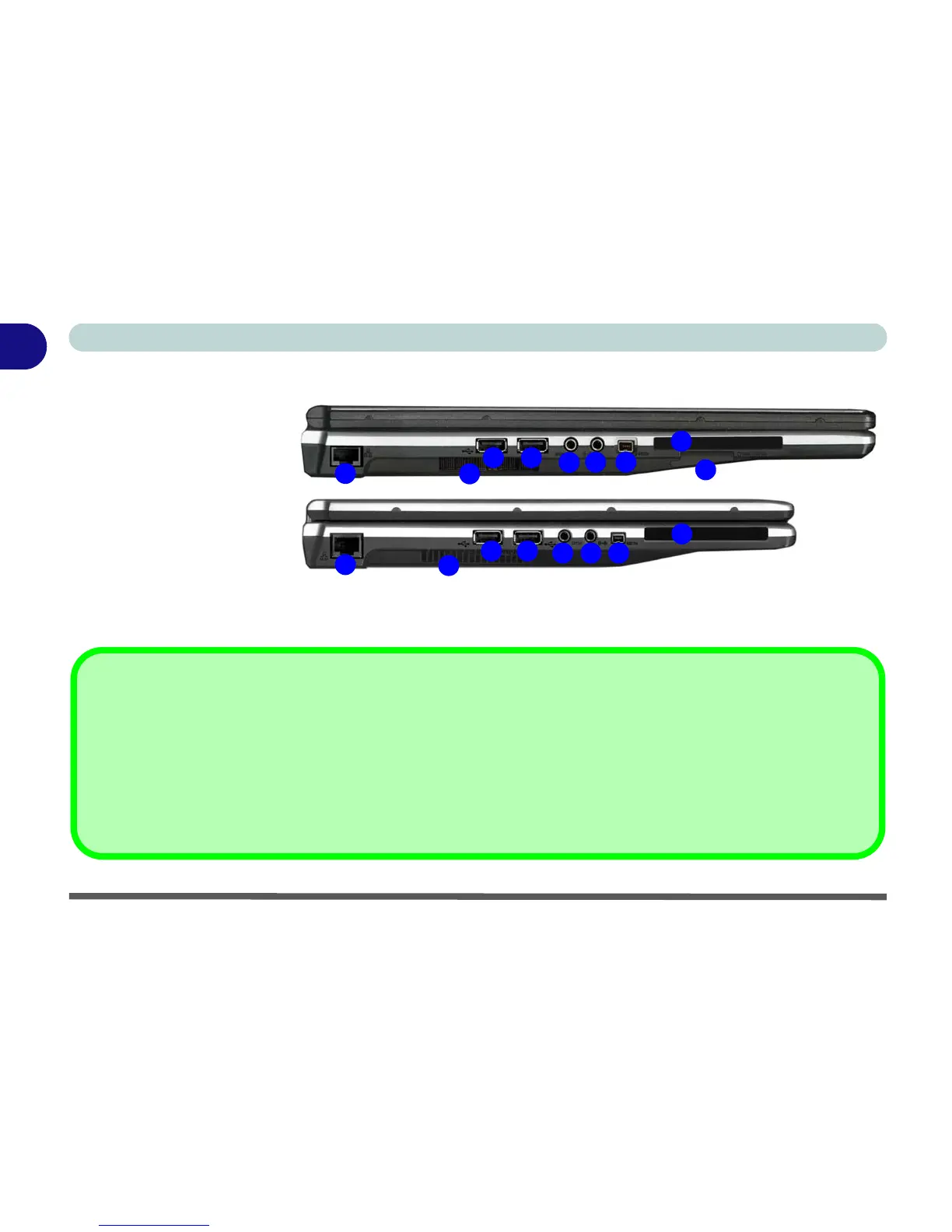

Figure 1 - 6 - Left View
3
1
5
2
4
6
8
Model A - Left
Model B - Left
1
2
3
4 5 6
7
3
3
1. RJ-45 LAN Jack
2. Vent/Fan Intake
3. 2 * USB 2.0 Ports
4. S/PDIF-Out Jack
5. Line-In Jack
6. Mini-IEEE 1394 Port
7. ExpressCard Slot (see
page 2 - 7)
8. 4-in-1 Card Reader
(Model A Only)
7

4-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) / MS Pro (Memory Stick Pro)
ExpressCard Slot
The ExpressCard Slot accepts either ExpressCard/34 or ExpressCard/54 formats.
