1 - 14 System Map: Bottom View
Quick Start Guide
1
System Map: Bottom View
2
3
CPU
The CPU is not a user ser-
viceable part. Opening this
compartment, or access-
ing the CPU in any way,
may violate your warranty.
Overheating
To prevent your computer
from overheating make
sure nothing blocks the
Vent/Fan Intake while the
computer is in use.
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery
at least once every 30 days or after about 20 partial discharges. See “Battery Information” on page 3 - 9 for full instruc-
tions.
4
1
Model A
5 5

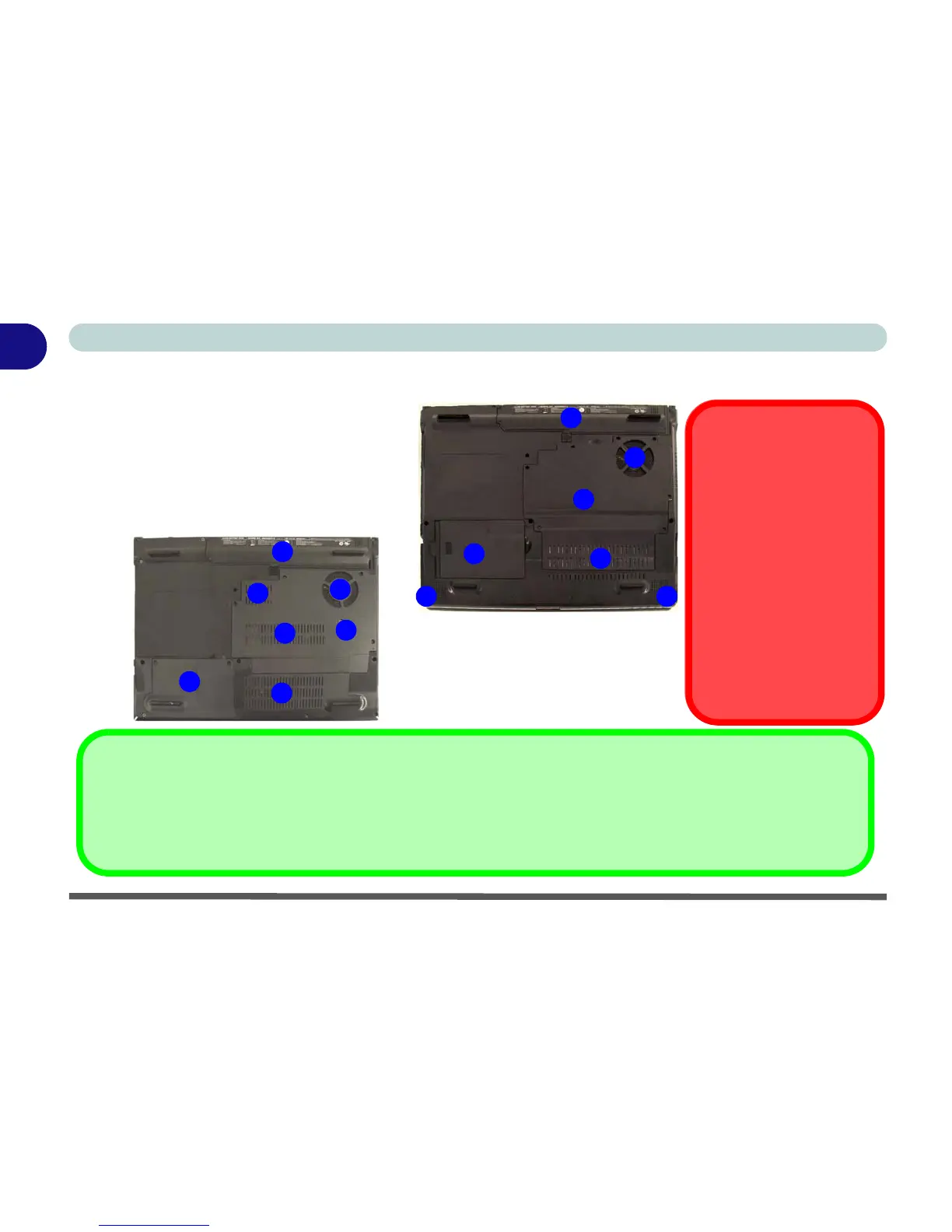

Figure 1 - 8 - Bottom View
1. Vent/Fan Intake
2. Battery
3. Module Bay Cover
4. Hard Disk Cover
5. Speakers (Model A Only)
1
1
2
3
4
Model B
1
1
1
