INSTALLATION GUIDE
APPENDIX C: ADDING AN ADDITIONAL U6000
NETWORK CARD
Adding a PCI-E network card
The first additional network card has to be installed in the first free slot on the rear panel (Slot 4).
This is the PCI-E port slot directly to the right of the 4 gigabit port QUAD card inserted by default.

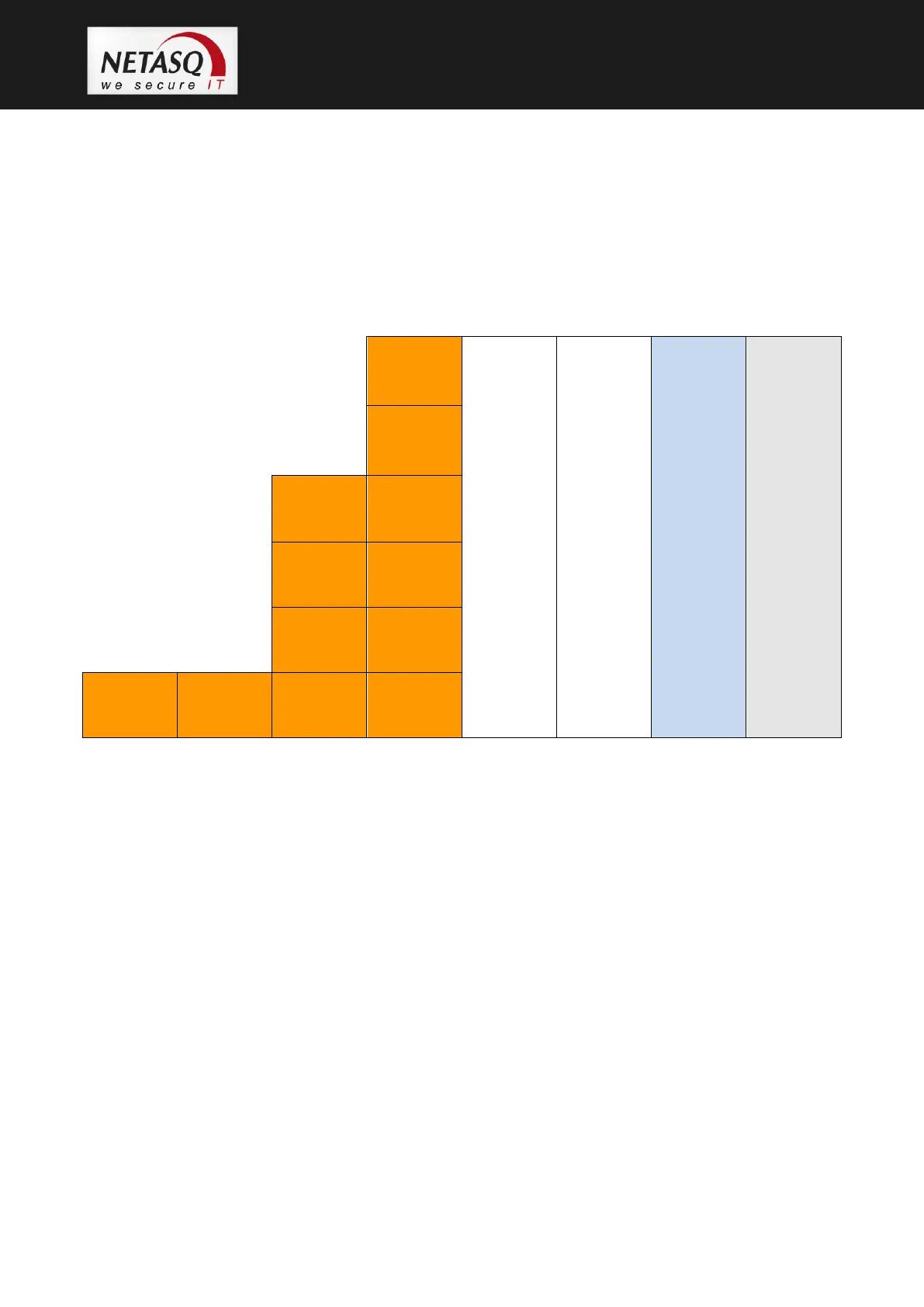

The diagram below illustrates how a 6-port network card should be inserted.
PCI-E
QUAD
PCI-E
PCI-E
PCI-X
PCI-X
em6
(dmz-5)
R
A
I
D
em7
(dmz-6)
em2
(dmz-1)
em8
(dmz-7)
em3
(dmz-2)
em9
(dmz-8)
em4
(dmz-3)
em10
(dmz-9)
em0
(out)
em1
(in)
em5
(dmz-4)
em11
(dmz-10)
1
2
3
4
