NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router User Manual

ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Firewall Protection and Content Filtering 4-11
1.1 November, 2009
2. Configure the parameters based on the descriptions in Table 4-2 on page 4-6.
3. Click Apply to save your changes and reset the fields on this screen. The new rule will be
listed on the Inbound Services table.
Modifying Rules
To make changes to an existing outbound or inbound service rule:
1. In the Action column adjacent to the rule, do the following:
• Click Edit to make any changes to the rule definition of an existing rule. The Outbound
Service or Inbound Service screen is displayed containing the data for the selected rule.
• Click Up to move the rule up one position in the table rank.

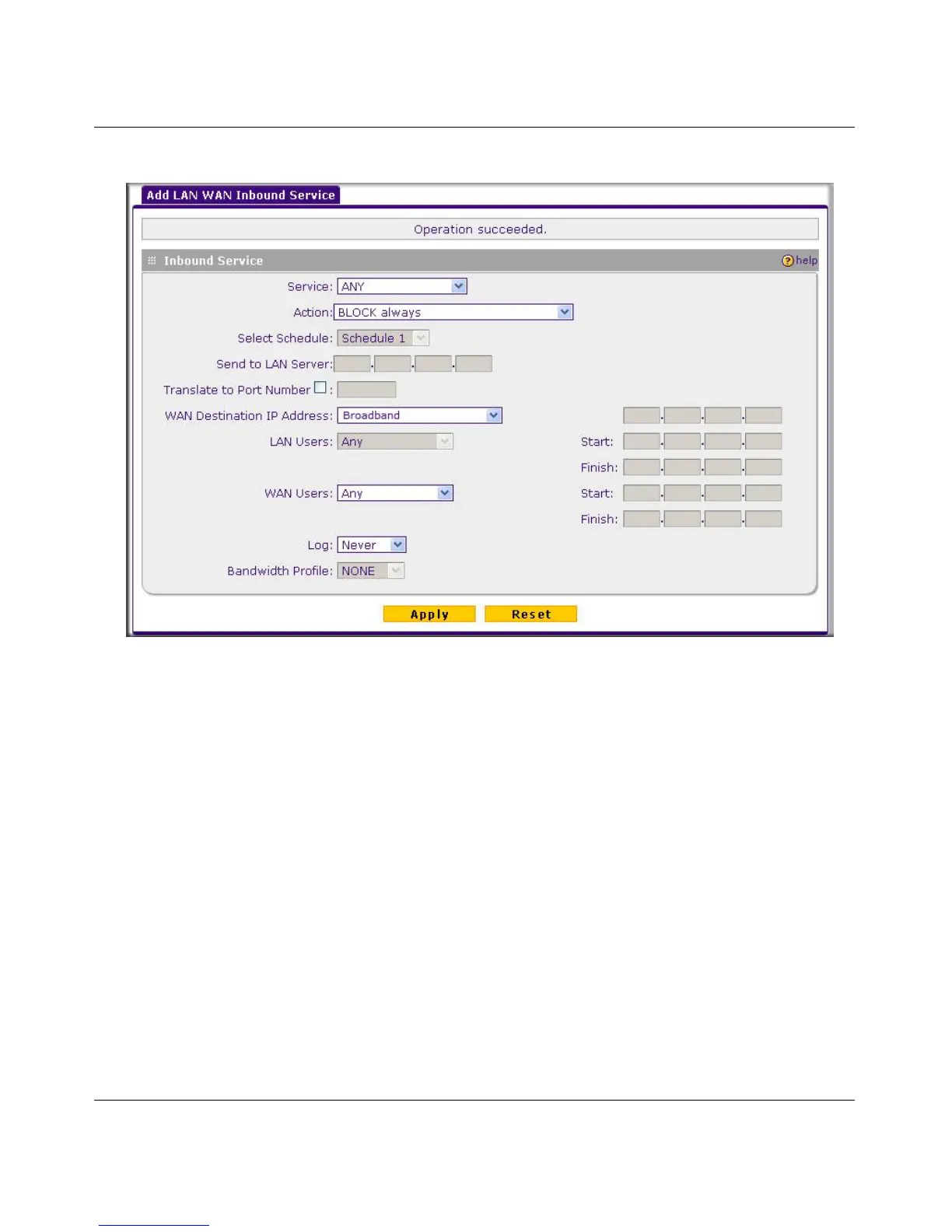

Figure 4-3

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
