ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Firewall Protection and Content Filtering 4-15
1.1 November, 2009

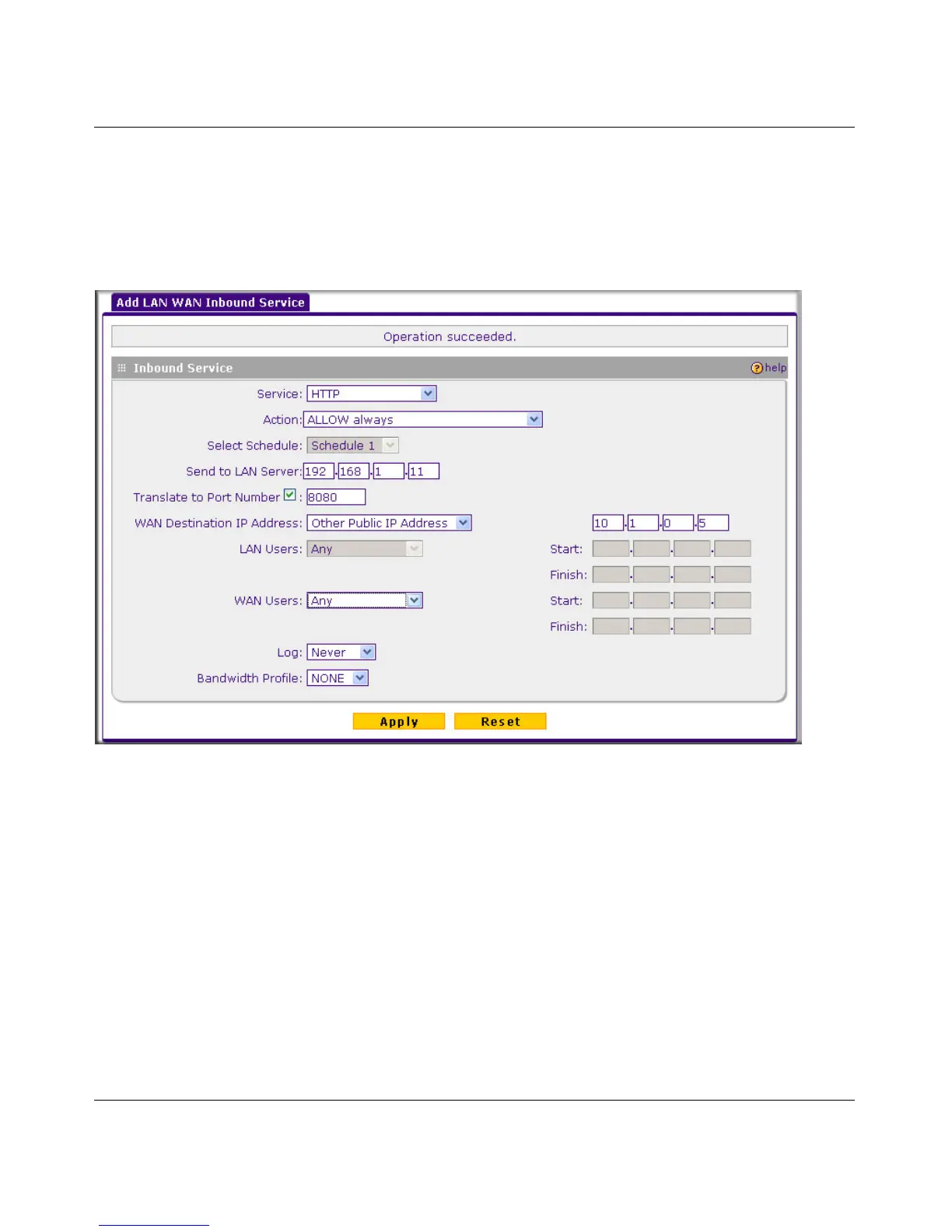

In the example shown in Figure 4-6, we have configured multi-NAT to support multiple public IP
addresses on one WAN interface. The inbound rule instructs the VPN firewall to host an
additional public IP address (10.1.0.5) and to associate this address with the Web server on the
LAN (at 192.168.1.2). We also instruct the VPN firewall to translate the incoming HTTP port
number (port 80) to a different port number (port 8080).
The following addressing scheme is used in this example:
• VPN firewall FVS318G
– WAN1 primary public IP address: 10.1.0.1
– WAN1 additional public IP address: 10.1.0.5
– LAN IP address 192.168.1.1
• Web server PC on the VPN firewall’s LAN
– LAN IP address: 192.168.1.11
– Port number for Web service: 8080
To test the connection from a PC on the WAN side, type http://10.1.0.5. The home page of the
Web server should appear.
Figure 4-6

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
