NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router User Manual

ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
Virtual Private Networking Using IPsec 5-7
1.1 November, 2009

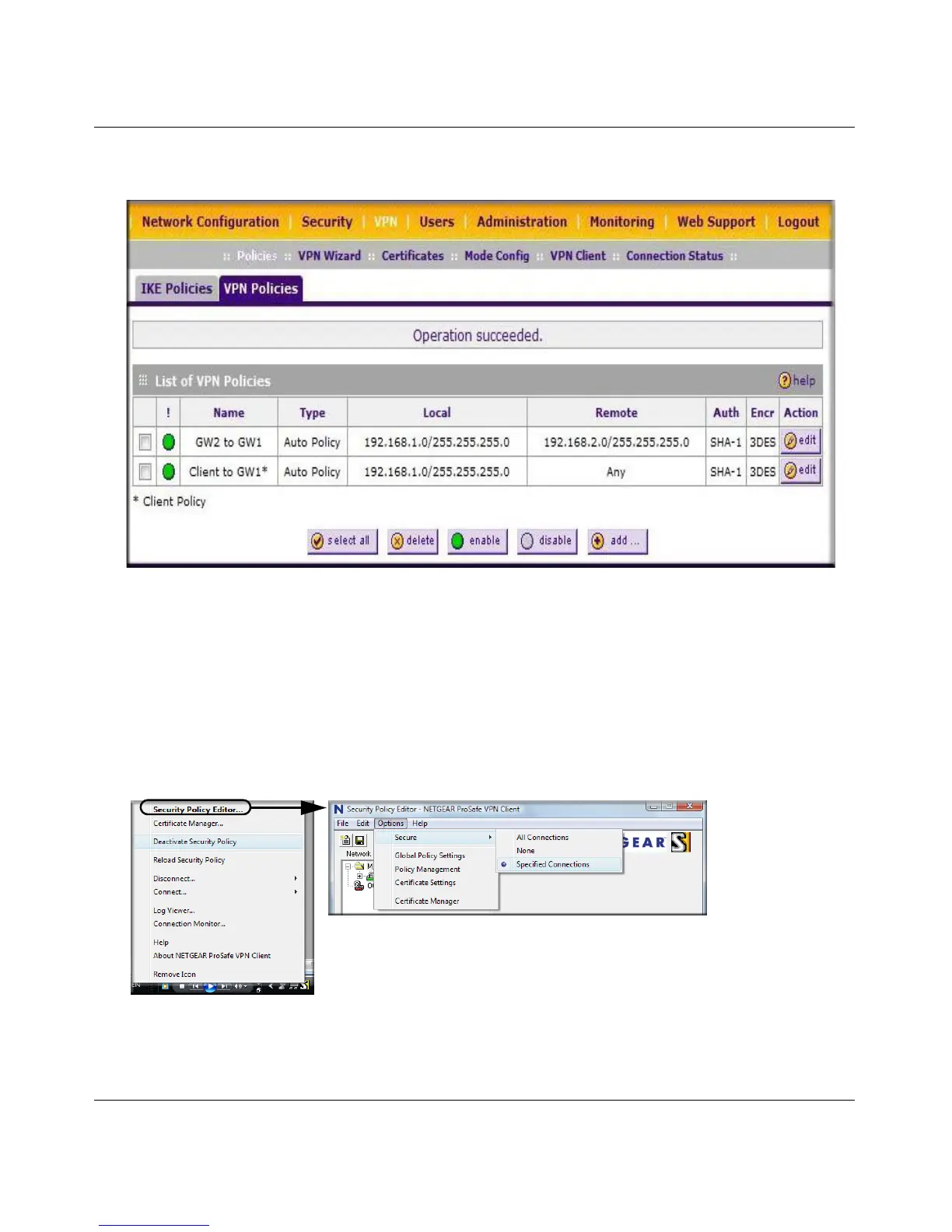

6. Click Apply to save your settings: the VPN Policies page shows the policy is now enabled.
Use the NETGEAR VPN Client Security Policy Editor to Create a Secure Connection
From a PC with the NETGEAR Prosafe VPN Client installed, configure a VPN client policy to
connect to the FVS318G. Follow these steps to configure your VPN client.
1. Right-click on the VPN client icon in your Windows toolbar, choose Security Policy Editor,
and verify that the Options > Secure > Specified Connections selection is enabled.
Figure 5-7
Figure 5-8

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
