NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router User Manual

ProSafe Gigabit 8 Port VPN Firewall FVS318G Reference Manual
5-10 Virtual Private Networking Using IPsec
1.1 November, 2009
4. Verify the Security Policy settings.
• By default TF1 routers use PFS with Group 2, so we need to click on Security Policy to
make this change on the Client software to match the policy on the router.
• On the left, expand Authentication (Phase 1) and click Proposal 1: no changes are
needed.
• On the left, expand Key Exchange (Phase 2) and click Proposal 1. No changes are
needed.
5. In the upper left of the window, click the disk icon to save the policy.

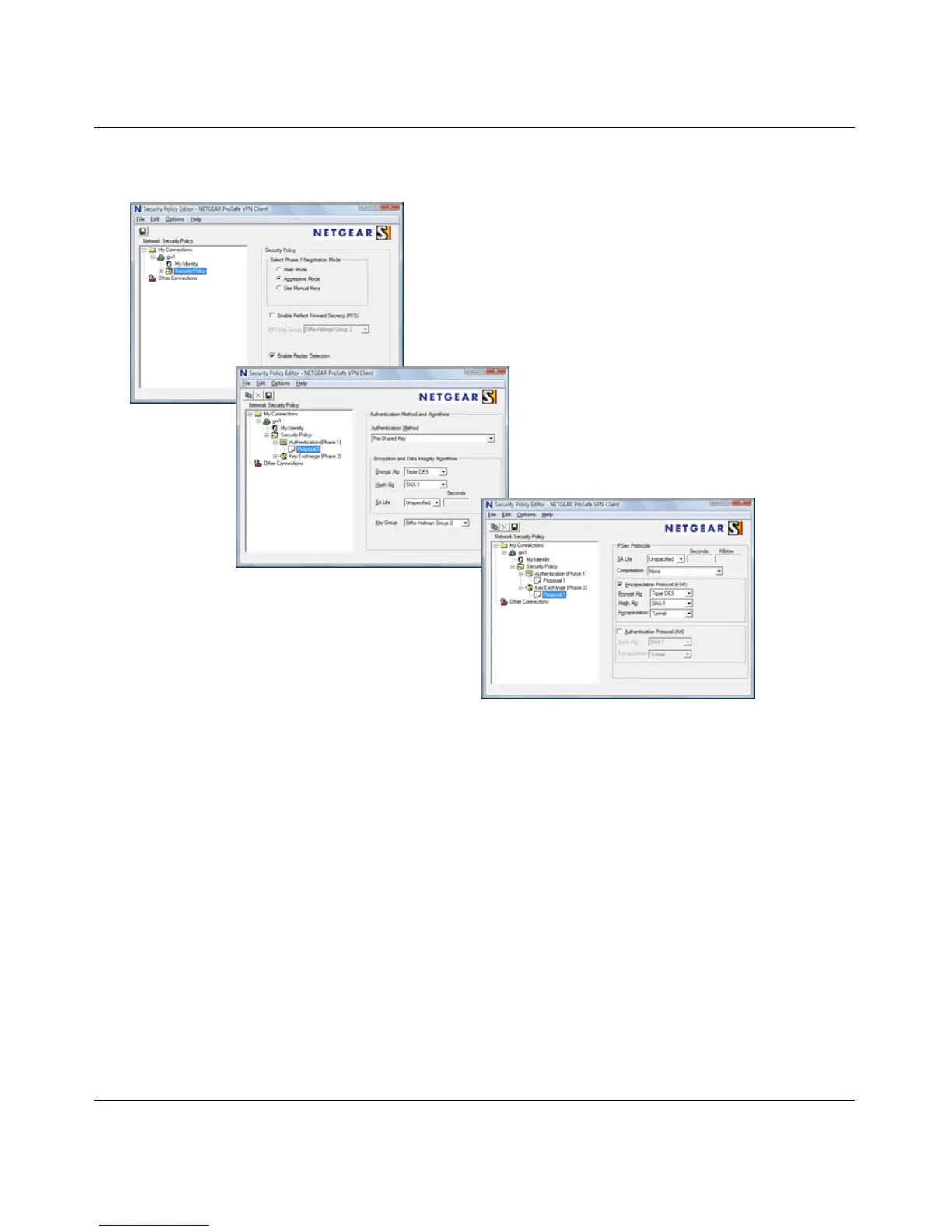

Figure 5-11

NETGEAR FVS318G - ProSafe Gigabit VPN Firewall Data Sheet Router Specifications

General

Model	FVS318G
Category	Network Router
VPN Tunnels	25
VPN Throughput	25 Mbps
VPN Protocols	IPSec, PPTP, L2TP
Humidity	90% maximum relative humidity, non-condensing
WAN Ports	1
LAN Ports	8
Weight	1.4 kg (3.1 lb)
Firewall Security	SPI, DoS
Flash Memory	8 MB
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 70°C
